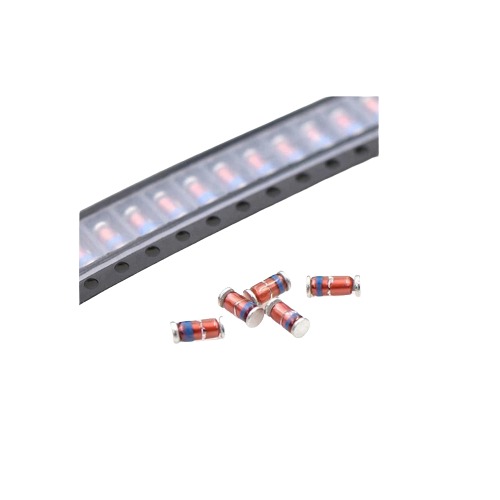

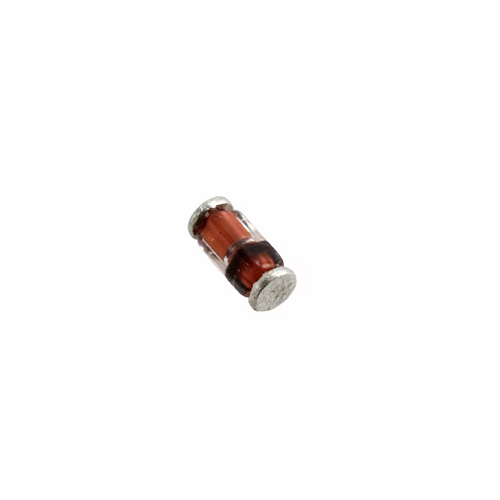

BZV55-C5V6 Zener Diode 5.6V 500mW 5% SOD-80

The BZV55-C5V6 is a surface-mount Zener diode designed for voltage regulation, voltage reference, and overvoltage protection applications. With a nominal Zener voltage of 5.6V, 500mW power dissipation capability, and compact SOD-80 package, it is widely used in power supplies, signal conditioning circuits, embedded systems, consumer electronics, and industrial control equipment.

Key Features -

• Nominal Zener voltage of 5.6V

• 500mW power dissipation capability

• Compact SOD-80 surface-mount package

• Excellent voltage regulation characteristics

• Low reverse leakage current

• High reliability and long operational life

• Suitable for voltage reference and protection circuits

Specifications -

• Product type - Zener Diode

• Part number - BZV55-C5V6

• Zener Voltage (Vz) - 5.6V

• Voltage Tolerance - ±5%

• Power Dissipation - 500mW

• Package Type - SOD-80

• Mounting Type - Surface Mount (SMD)

• Element Configuration - Single

• Dynamic Impedance - 40Ω

• Maximum Reverse Leakage Current - 1µA

• Reverse Voltage - 2V

• Operating Temperature Range - Suitable for industrial and consumer electronic applications

Applications -

• Voltage regulation circuits

• Voltage reference circuits

• Overvoltage protection

• Power supply protection

• Signal conditioning circuits

• Microcontroller and embedded systems

• Industrial control equipment

• Consumer electronic devices

• DIY and educational electronics projects
