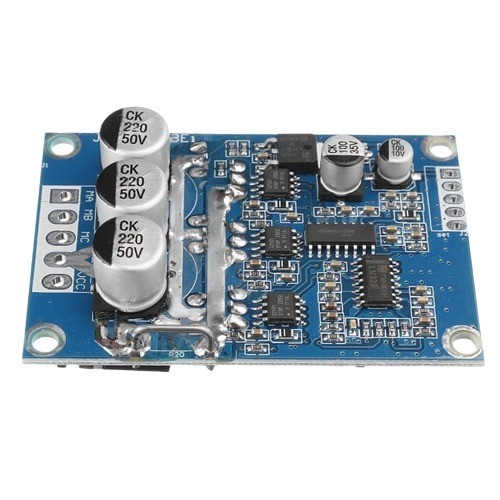

C 12V-36V 15A 500W Brushless Motor Controller Hall BLDC Driver Board Support Hall Motor
The C 12V-36V 15A 500W Brushless Motor Controller Hall BLDC Driver Board is a high performance driver module designed to control three-phase brushless DC (BLDC) motors with Hall sensor feedback. It supports a wide DC supply range and delivers up to 15A continuous current for motors up to 500W, providing smooth speed control, reliable torque, and precise commutation using Hall sensor signals.
This controller board is suitable for electric scooters, small electric vehicles, robotics, automated systems, and DIY motor control projects. The Hall sensor support and adjustable parameters allow optimized performance and efficient motor operation in embedded and industrial applications.
KEY FEATURES
- Wide input voltage range 12V-36V DC
- Supports BLDC motors up to 500W
- Continuous current up to 15A
- Hall sensor feedback support
- Smooth commutation and speed control
- Over current and thermal protection
- Compact driver board design
- Easy integration with DC motor systems
SPECIFICATIONS
- Supply Voltage = 12V-36V DC
- Maximum Output Power = 500W
- Continuous Current = 15A
- Motor Type Supported = 3-phase BLDC with Hall sensors
- Control Method = Electronic commutation with Hall feedback
- Protection = Over current/Over temperature
- Mounting Type = PCB driver board
INTERFACES
- VCC = DC power supply input positive
- GND = DC power ground
- Hall U = Hall sensor input channel U
- Hall V = Hall sensor input channel V
- Hall W = Hall sensor input channel W
- Motor U = BLDC motor phase U output
- Motor V = BLDC motor phase V output
- Motor W = BLDC motor phase W output
- PWM IN = Speed control PWM input
- EN = Enable control input
