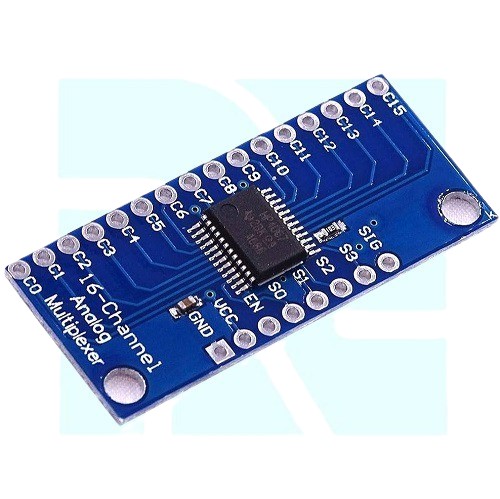

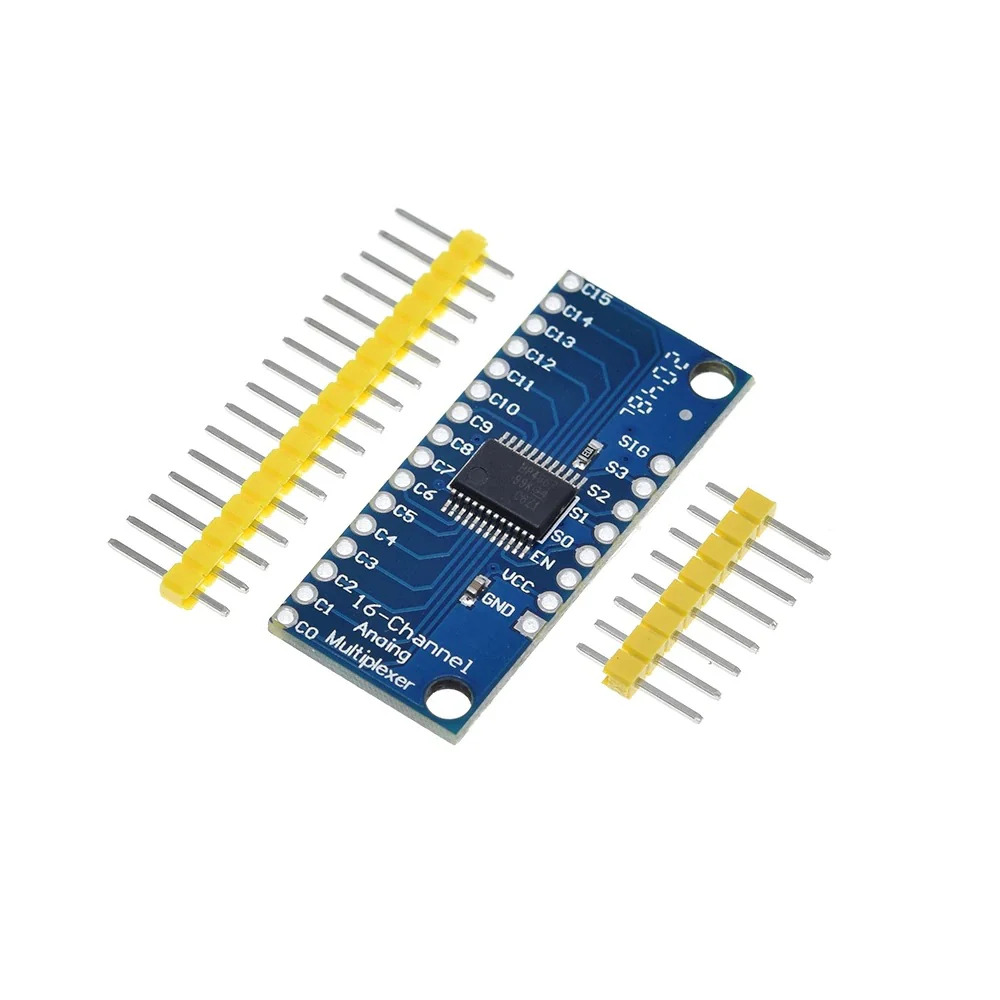

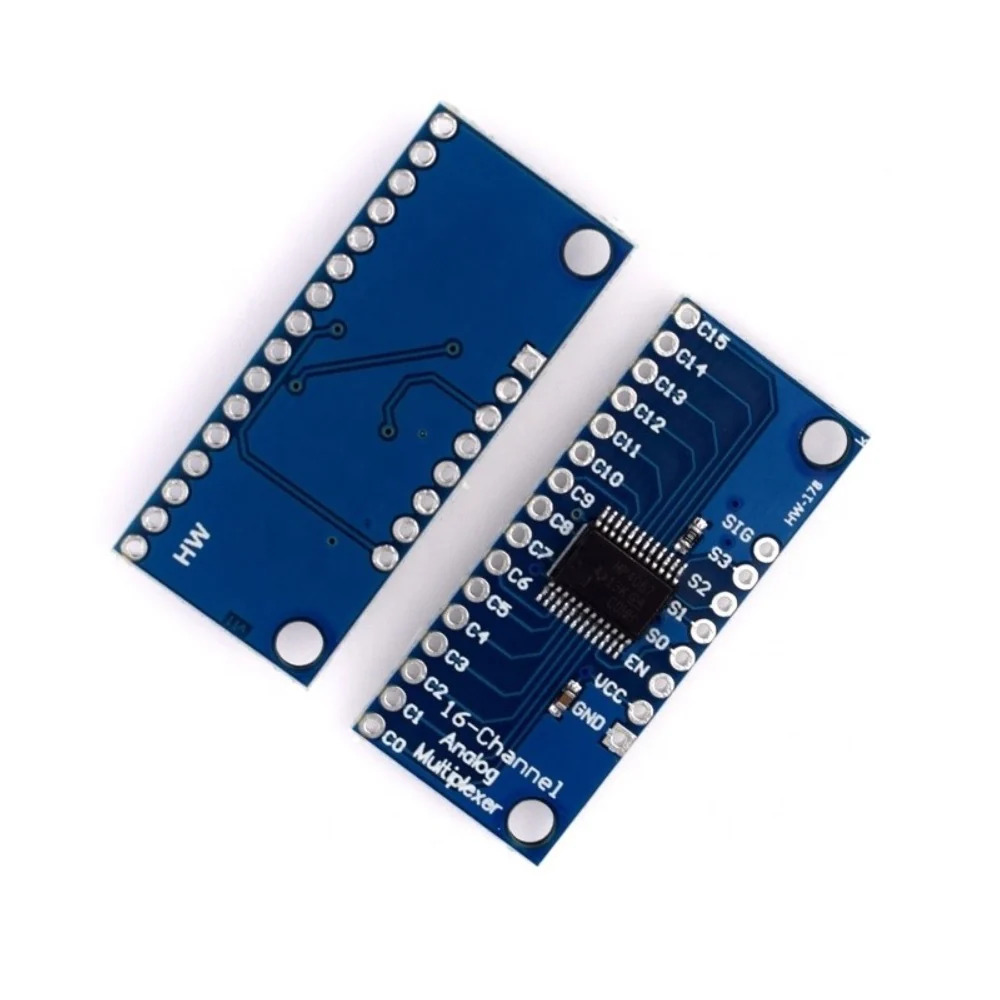

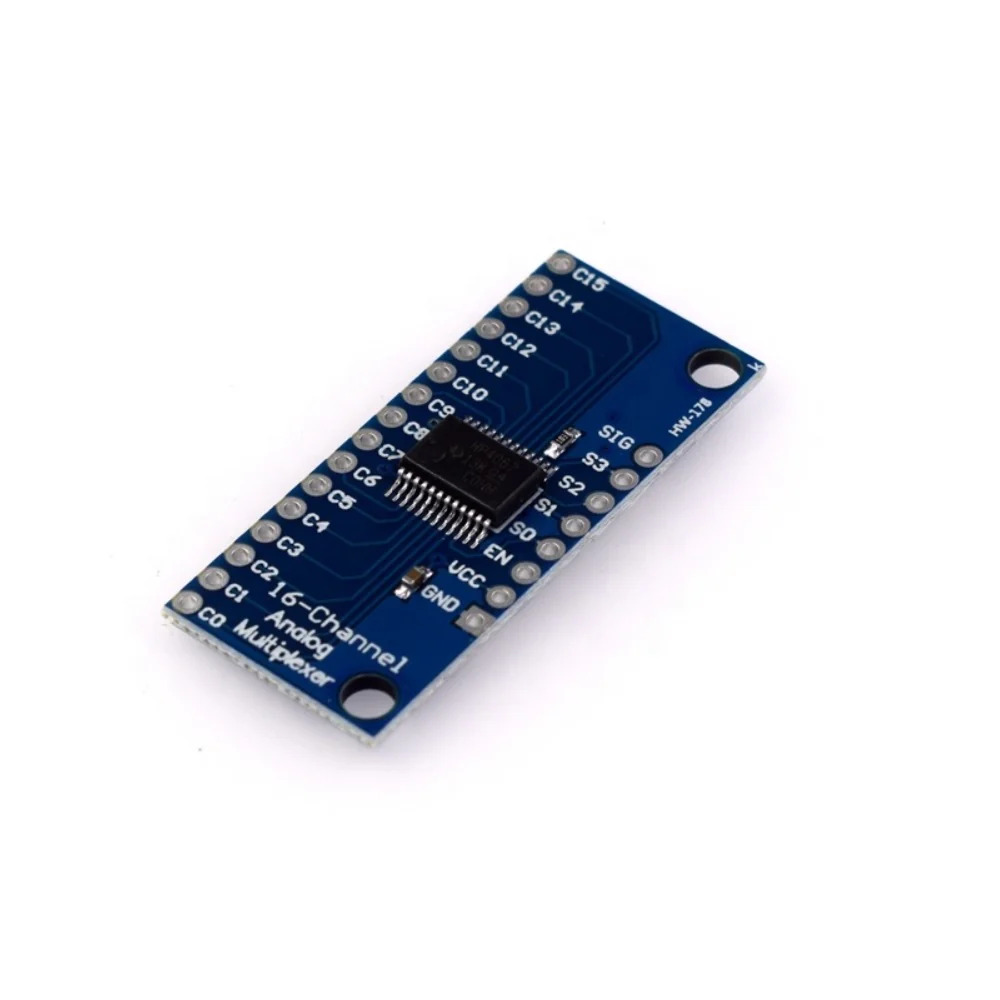

CD74HC4067 16-Channel Analog Digital Multiplexer Module (MUX Breakout Board)

The CD74HC4067 Multiplexer Module is a versatile breakout board based on the CD74HC4067 CMOS 16-channel analog and digital multiplexer IC. It allows a single microcontroller pin to interface with up to 16 analog or digital signals, making it ideal for sensor expansion, data acquisition, automation systems, and embedded electronics projects.

Key Features -

• 16-channel analog and digital multiplexer

• Based on CD74HC4067 CMOS IC

• Supports analog and digital signals

• Low ON resistance switching

• Simple address line control

• Compatible with Arduino and microcontrollers

• Compact breakout board design

Specifications -

• Product type - Multiplexer Module

• IC model - CD74HC4067

• Number of channels - 16

• Signal type - Analog and Digital

• Control inputs - 4 Address Select Lines

• Interface voltage - 3.3V and 5V compatible

• Mounting type - PCB Module

• Switching type - Bidirectional Multiplexing

• Application - Signal Expansion and Routing

• Additional features - Low power CMOS operation

Applications -

• Sensor expansion systems

• Arduino projects

• Data acquisition systems

• Embedded electronics

• Industrial automation

• Signal routing applications

• Educational electronics projects
