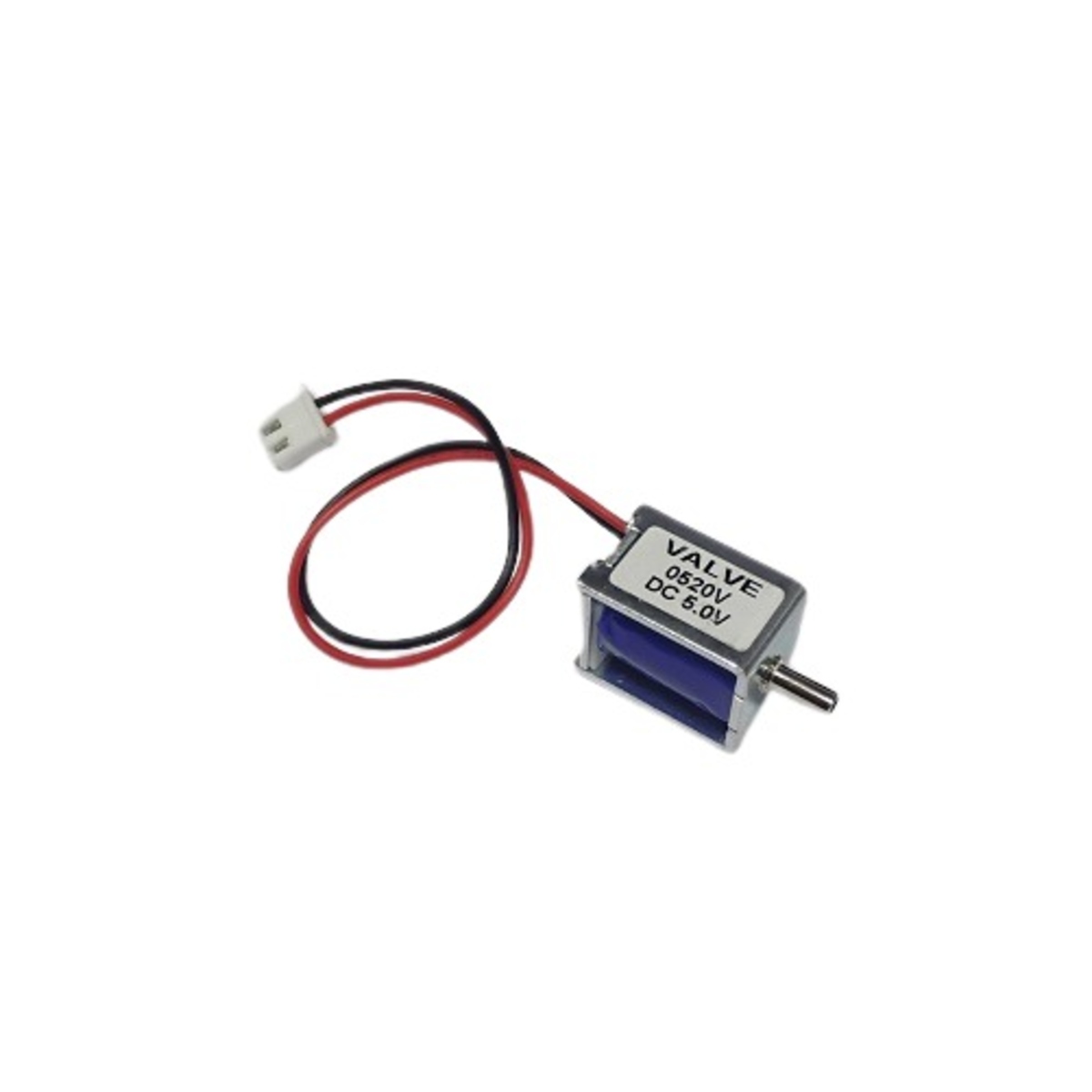

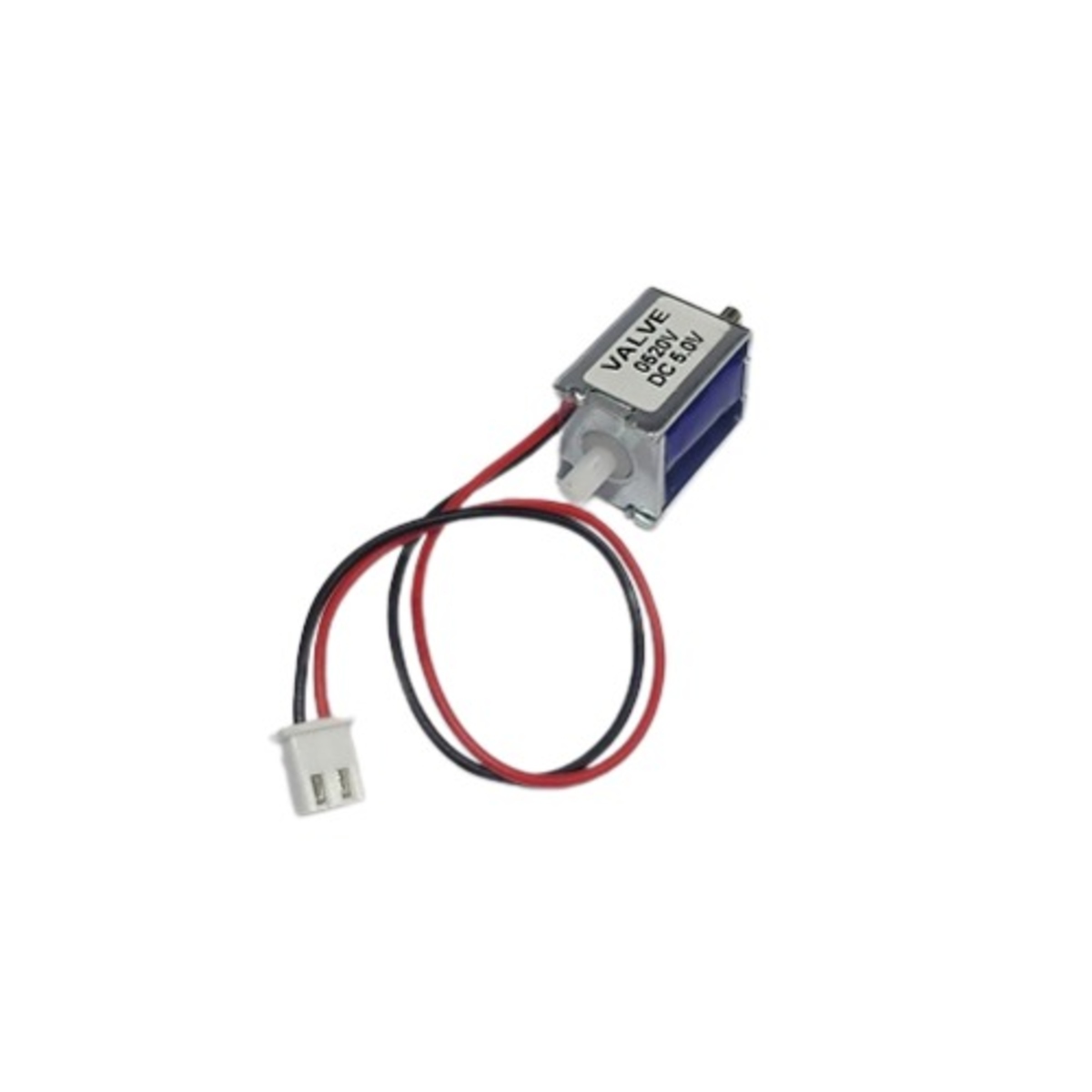

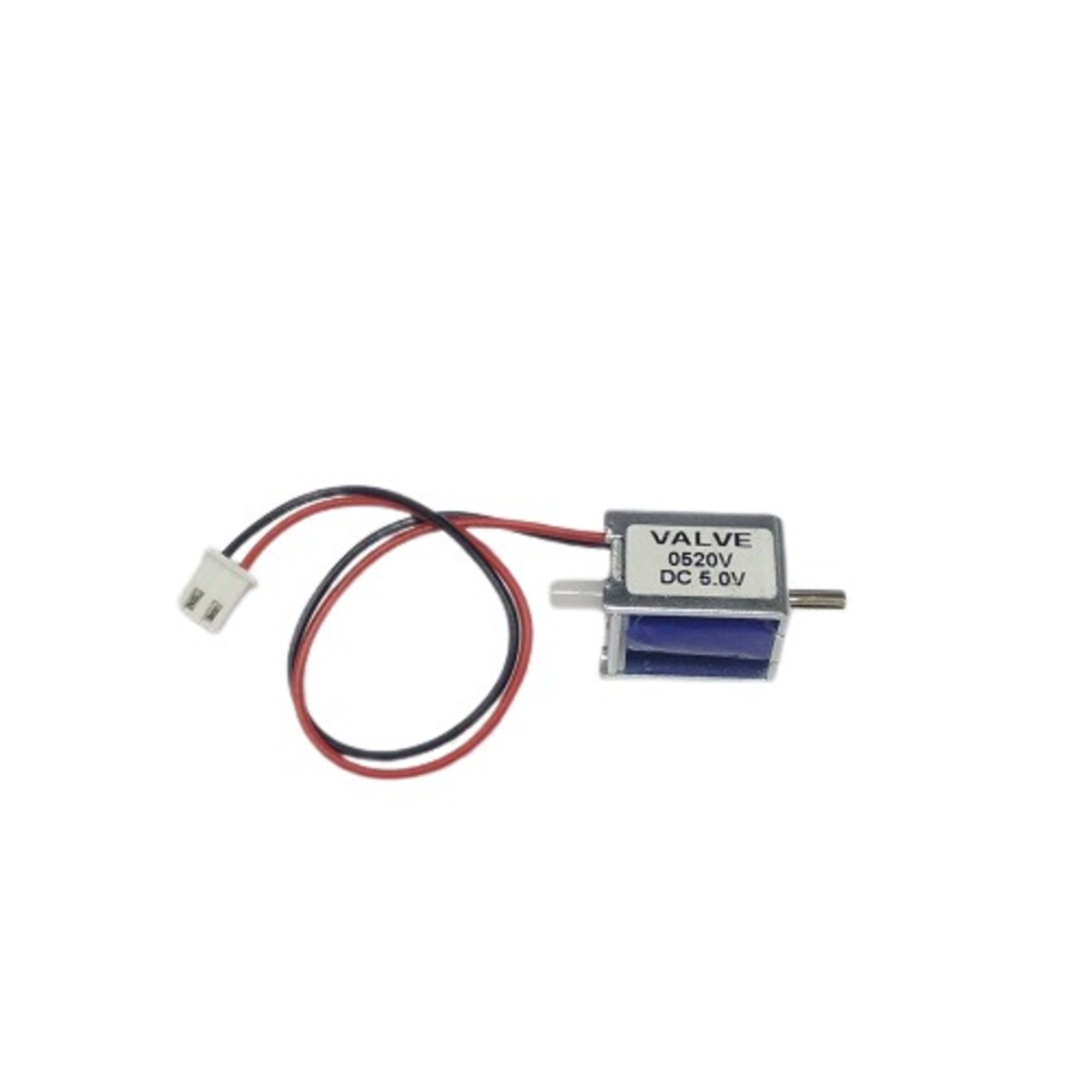

CJAV08-2B05A1 DC 5V 2-Position 2-Way Mini Electric Solenoid Valve (Air/Gas Control)

The CJAV08-2B05A1 DC 5V Mini Electric Solenoid Valve is a compact 2-position, 2-way valve designed for electrically controlled switching of air or gas flow. It operates from a 5V DC supply and provides fast switching for miniature pneumatic and fluid control applications.

Its compact construction makes it suitable for automation systems, laboratory equipment, pneumatic prototypes, DIY projects, and embedded systems requiring electrically controlled air or gas flow. The valve is designed for low-pressure applications and can be integrated into space-constrained systems.

Key Features -

• 2-position, 2-way solenoid valve

• Operates from 5V DC

• Designed for air and gas flow control

• Compact miniature construction

• Fast response time

• Low power consumption

• Suitable for automated flow control

• Easy integration into compact pneumatic systems

Specifications -

• Model = CJAV08-2B05A1

• Operating Voltage = 5V DC

• Valve Type = 2-position, 2-way

• Fluid Medium = Air / Gas

• Operating Pressure = 0-0.8MPa typical

• Flow Rate = Approx. 20L/min depending on pressure

• Response Time = Less than 15ms

• Power Consumption = 1.5-2W

• Module Size = Approx. 25 x 12 x 30mm

Applications -

• Miniature pneumatic systems

• Air and gas flow control

• Automation projects

• Laboratory equipment

• DIY pneumatic projects

• Robotics and embedded systems

• Automatic dispensing systems

• Compact fluid control applications
