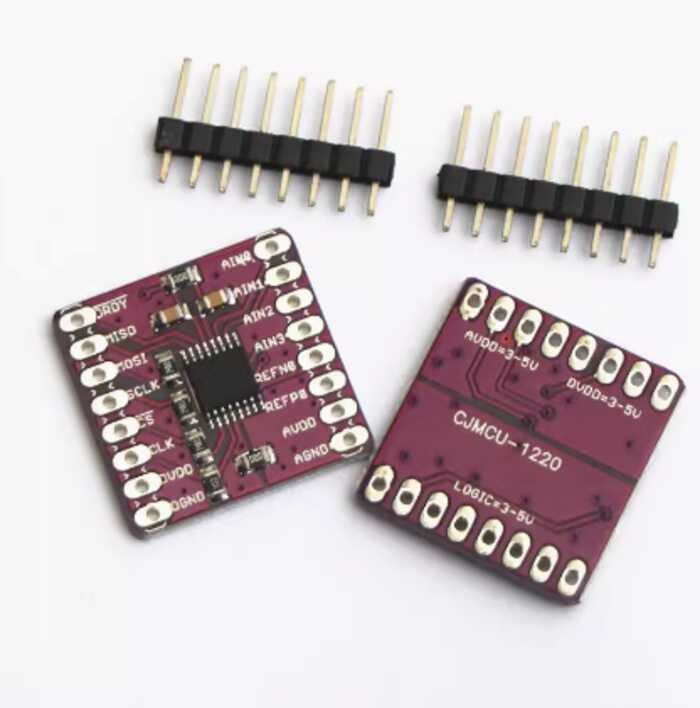

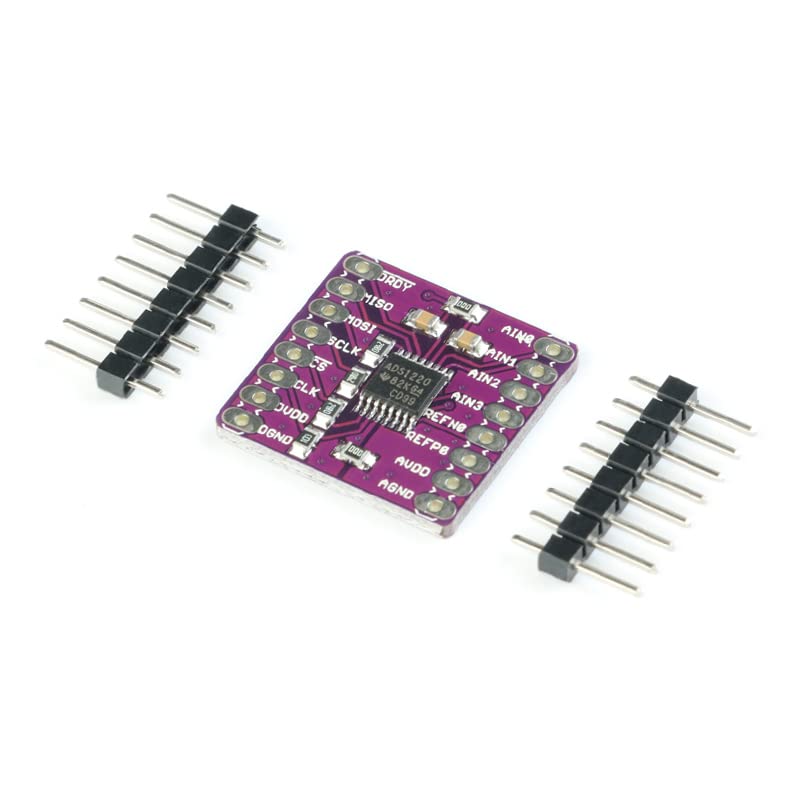

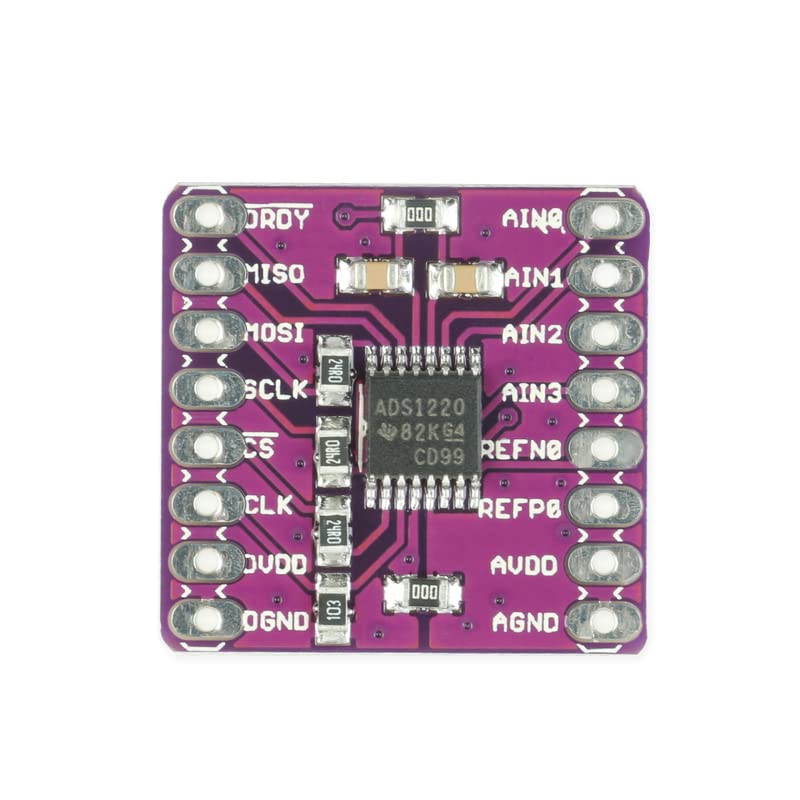

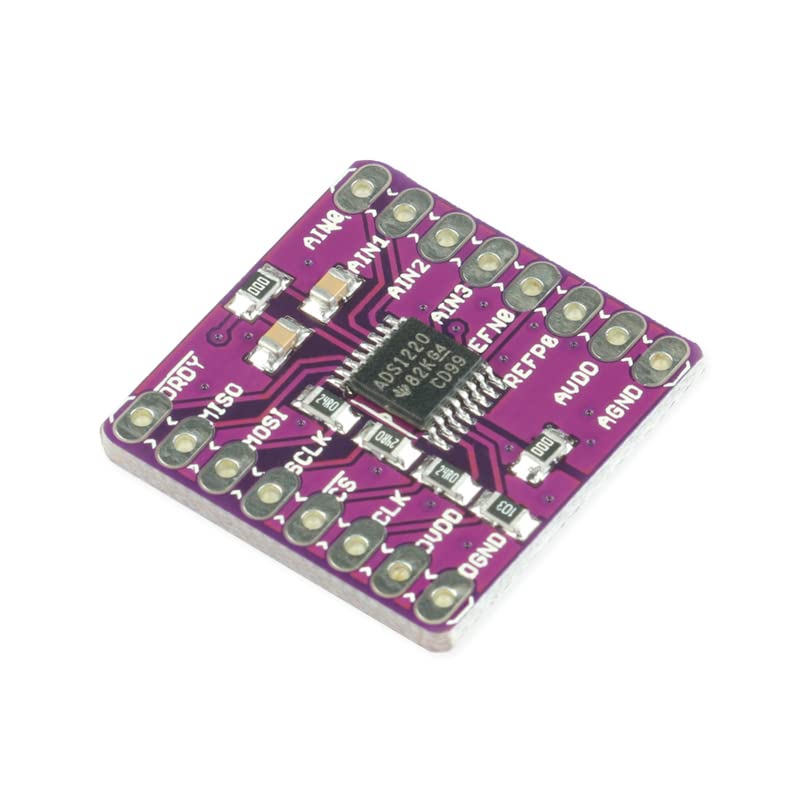

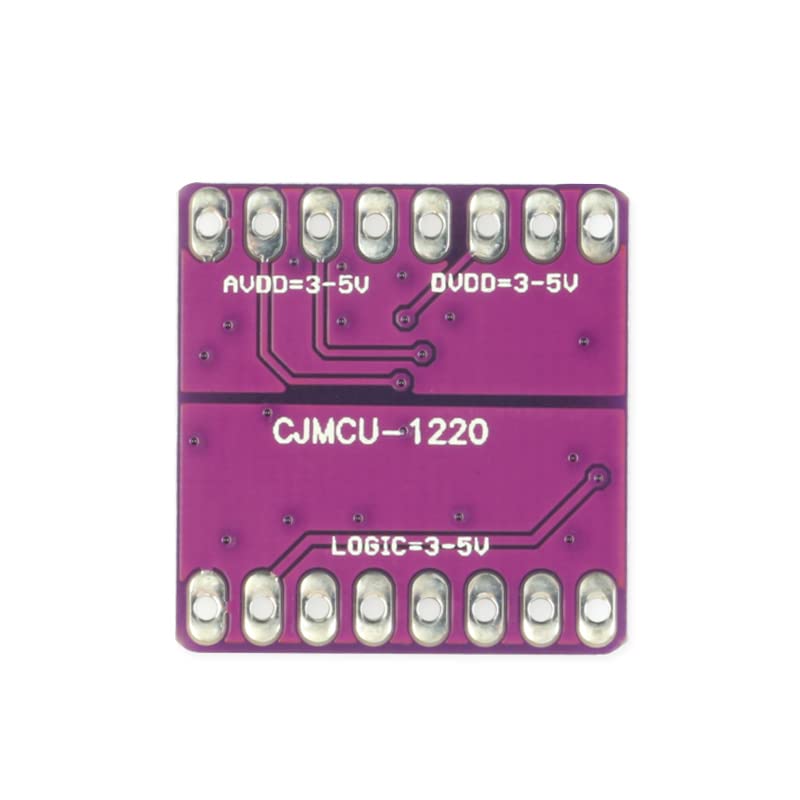

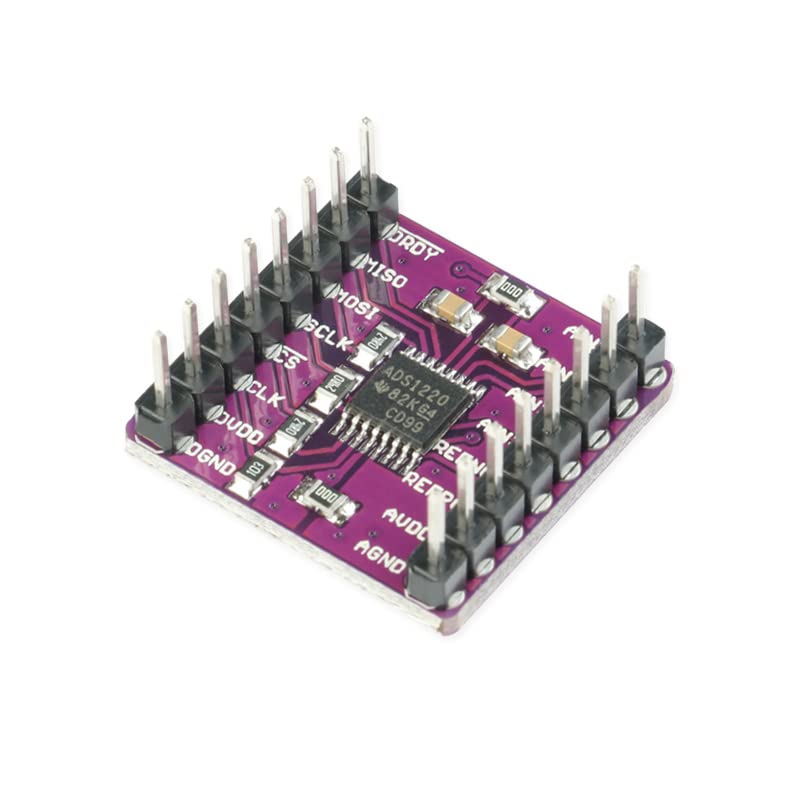

CJMCU-1220 ADS1220 24-Bit ADC Module (SPI Low Power Analog-to-Digital Converter)

The CJMCU-1220 ADS1220 ADC Module is a high-precision 24-bit analog-to-digital converter (ADC) designed for low-power, high-resolution signal acquisition. Based on the Texas Instruments ADS1220 ADC, the module supports both differential and single-ended analog inputs, making it ideal for accurately measuring low-level sensor signals in industrial, scientific, and embedded applications.

The module communicates through a SPI interface and features an integrated programmable gain amplifier (PGA), low-noise architecture, and support for both internal and external voltage references. It is compatible with Arduino, ESP32, STM32, Raspberry Pi, and other SPI-enabled microcontroller platforms for precision measurement and data acquisition.

Key Features -

• Based on the ADS1220 24-bit ADC IC

• High-resolution 24-bit analog-to-digital conversion

• Low power consumption design

• SPI digital communication interface

• Integrated programmable gain amplifier (PGA)

• Supports differential and single-ended inputs

• Low-noise, high-accuracy signal conversion

• Internal and external voltage reference support

• Compact breakout board design

• Ideal for precision measurement applications

Specifications -

• Product type - 24-Bit ADC Module

• Module model - CJMCU-1220

• ADC IC - ADS1220

• Resolution - 24-Bit

• Communication interface - SPI

• Operating voltage - 2.3V to 5.5V DC

• Input type - Differential and Single-Ended

• Programmable gain - 1 to 128

• Maximum data rate - Up to 2000 Samples per Second (SPS)

• Reference voltage - Internal or External Supported

• Operating temperature - -40C to +85C

• Mounting type - PCB Breakout Module

• Application - Precision Measurement and Data Acquisition

Applications -

• Precision sensor interfacing

• Load cell and weigh scale systems

• Pressure sensor measurement

• Temperature data acquisition

• Industrial instrumentation

• Laboratory measurement equipment

• Data logging systems

• Arduino and ESP32 projects

• IoT monitoring devices

• Embedded control systems
