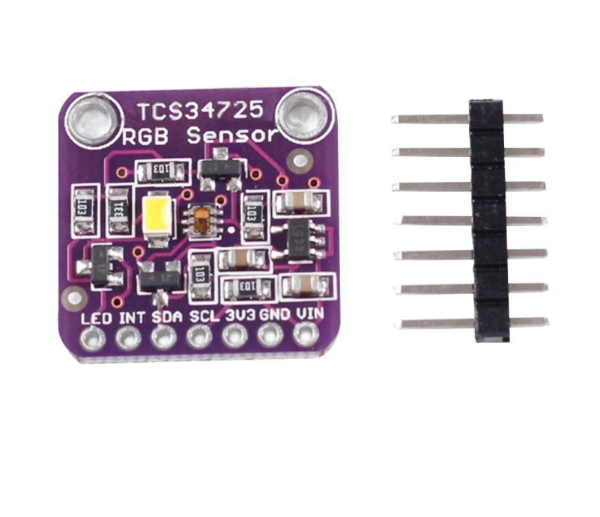

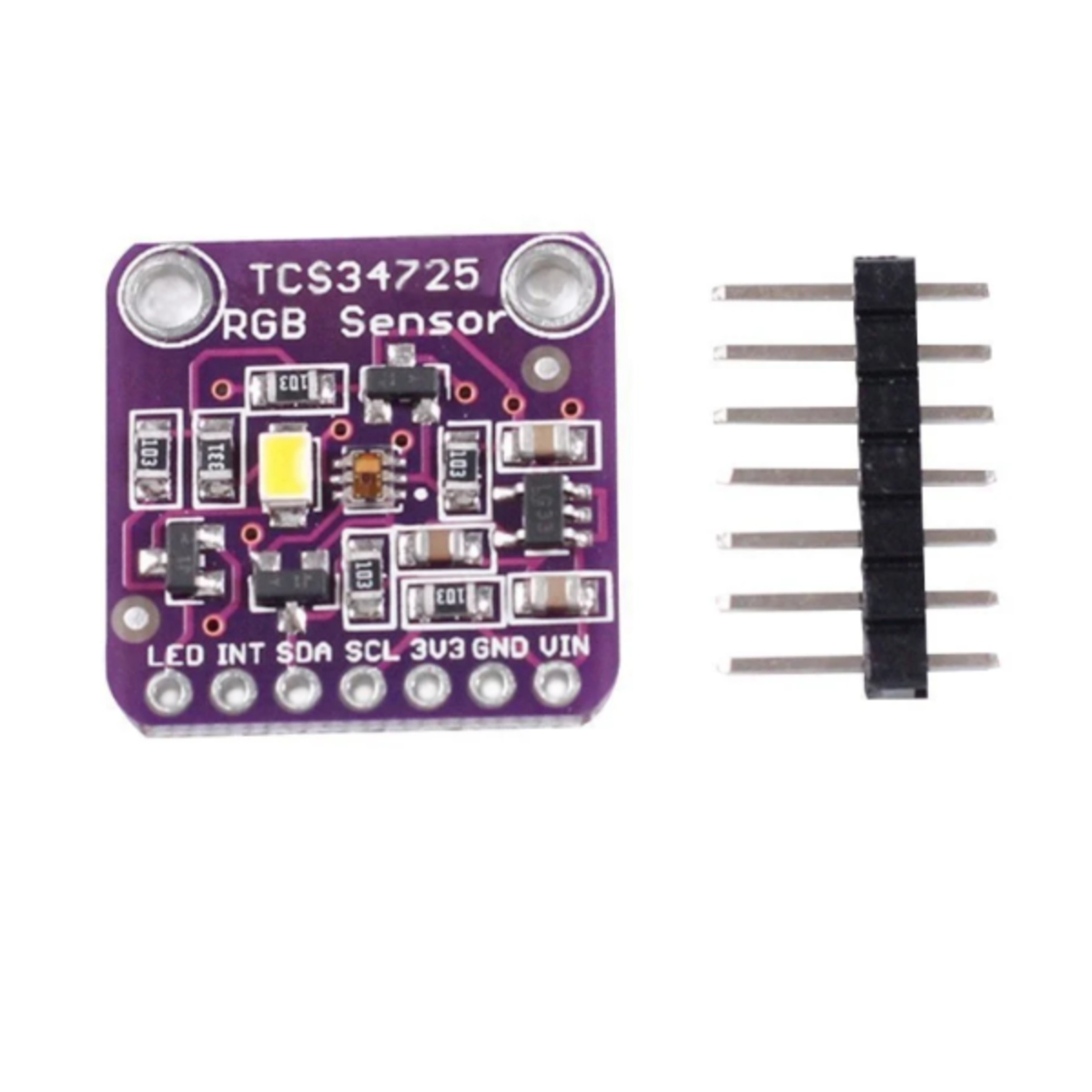

CJMCU-34725 TCS34725 RGB Color Sensor Module (I2C Digital Color Detection)

The CJMCU-34725 TCS34725 RGB Color Sensor Module is a compact digital color sensing module designed to measure red, green, blue, and clear light intensity. It uses the TCS34725 color sensor with an integrated infrared blocking filter to improve color measurement accuracy.

The module communicates through an I2C interface, allowing easy connection to Arduino, STM32, ESP32, and other microcontroller platforms. It is suitable for color recognition, ambient light measurement, display calibration, object detection, and automated color-based control systems.

KEY FEATURES -

• TCS34725 digital RGB color sensor

• Measures red, green, blue, and clear light components

• Integrated infrared blocking filter

• 16-bit ADC resolution per color channel

• I2C digital communication interface

• Compact PCB module design

• Suitable for Arduino and other microcontrollers

• Supports ambient light and color measurement

SPECIFICATIONS -

• Sensor IC = TCS34725

• Operating Voltage = 3.3 - 5V DC

• Communication Interface = I2C

• Color Channels = Red, Green, Blue, Clear

• ADC Resolution = 16-bit per channel

• Detection Range = Up to 60,000 lux typical

• Current Consumption = Approx. 235µA typical

• Module Size = Approx. 20 x 20mm

APPLICATIONS -

• RGB color detection

• Color recognition systems

• Ambient light measurement

• Object color identification

• LED and display calibration

• Robotics and automation

• Arduino and ESP32 projects

• Automated color sorting systems
