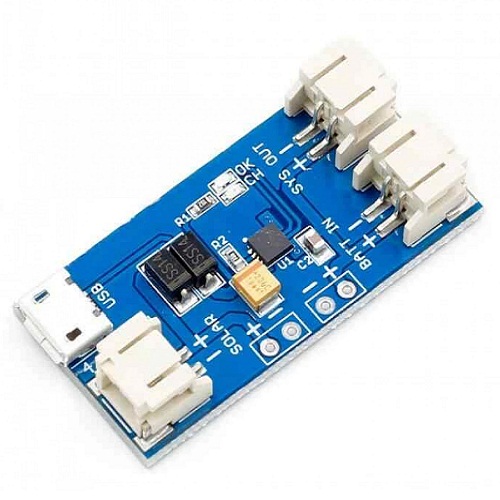

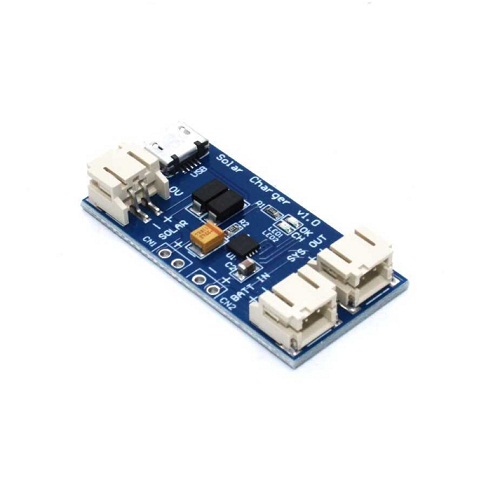

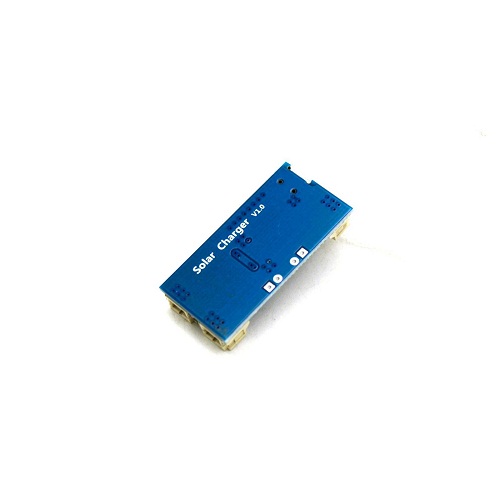

CN3065 Li-ion Mini Solar Charger Module (Lithium Ion Battery Solar Charging Module with Micro USB)

The CN3065 Li-ion Mini Solar Charger Module is designed for charging single-cell Lithium-ion batteries using a solar panel or Micro-USB power source. It provides safe and efficient battery charging with built-in charging management, status indication, and short circuit protection, making it ideal for portable and solar-powered electronic projects.

Key Features -

• Supports single-cell Lithium-ion battery charging

• Solar panel input voltage from 4.4V to 6V

• Maximum continuous charging current up to 500mA

• Micro-USB connector for USB charging

• 2-pin JST (PH2.0) battery interface

• Built-in short circuit protection

• Charging status indicator with Red and Green LEDs

• Compact module suitable for embedded and portable applications

Specifications -

• Product Type - Lithium-ion Solar Charger Module

• Model - CN3065

• Input Voltage - 4.4V to 6V (Solar Panel)

• Operating Voltage - 5V via Micro-USB

• Current Rating - 500mA Maximum Charge Current

• Connector Type - 2-pin JST (PH2.0), Micro-USB

• Compatibility - Single-cell Lithium-ion batteries

Applications -

• Solar-powered battery charging systems

• Portable electronic devices

• Internet of Things projects

• Battery-powered sensor nodes

• DIY solar energy projects

• Embedded system power management

• Rechargeable battery packs

• Educational and prototyping applications
