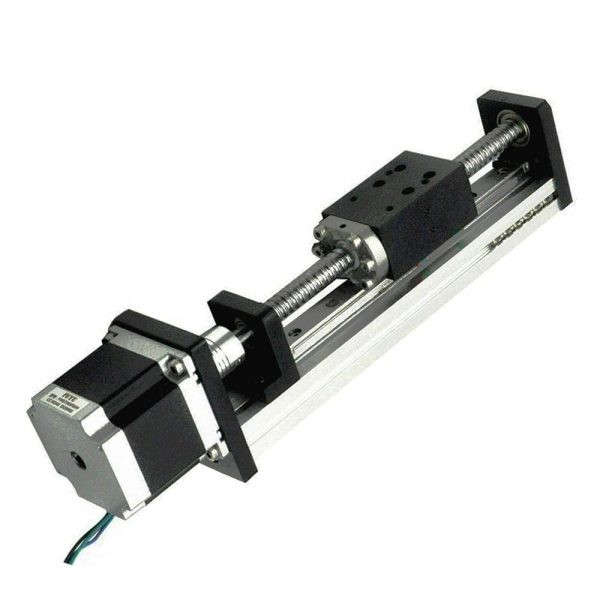

CNC Linear Guide Linear Slide Module 150mm 1605 Ball Screw

The CNC Linear Guide Linear Slide Module 150mm with 1605 ball screw is a precision motion control unit designed for accurate and smooth linear movement in CNC and automation applications. It integrates a rigid aluminum base, precision linear guide rails, and a 1605 ball screw drive system to ensure stable performance and high positioning accuracy.

This module is suitable for CNC machines, engraving systems, laser machines, 3D printers, and custom automation projects. Its compact and pre assembled structure allows easy installation and reliable operation in industrial and embedded motion systems.

KEY FEATURES

• 1605 precision ball screw drive
• 150mm effective travel length
• High accuracy and repeatability
• Smooth linear motion
• Low backlash performance
• Rigid aluminum base structure
• Pre assembled linear guide rail and block
• Easy motor coupling connection

SPECIFICATIONS

• Travel Length = 150mm
• Ball Screw Model = 1605
• Screw Diameter = 16mm
• Lead = 5mm/rev
• Guide Type = Linear rail guide
• Base Material = Aluminum alloy
• Drive System = Ball screw transmission
• Mounting Type = Base mounting holes
• Application = CNC/Automation/Engraving systems

INTERFACES

• Ball Screw Shaft = Motor coupling connection
• Linear Carriage Platform = Load mounting surface
• Base Mounting Holes = Frame installation
• End Support Block = Screw alignment support
• Guide Rail Block = Linear motion and load support
