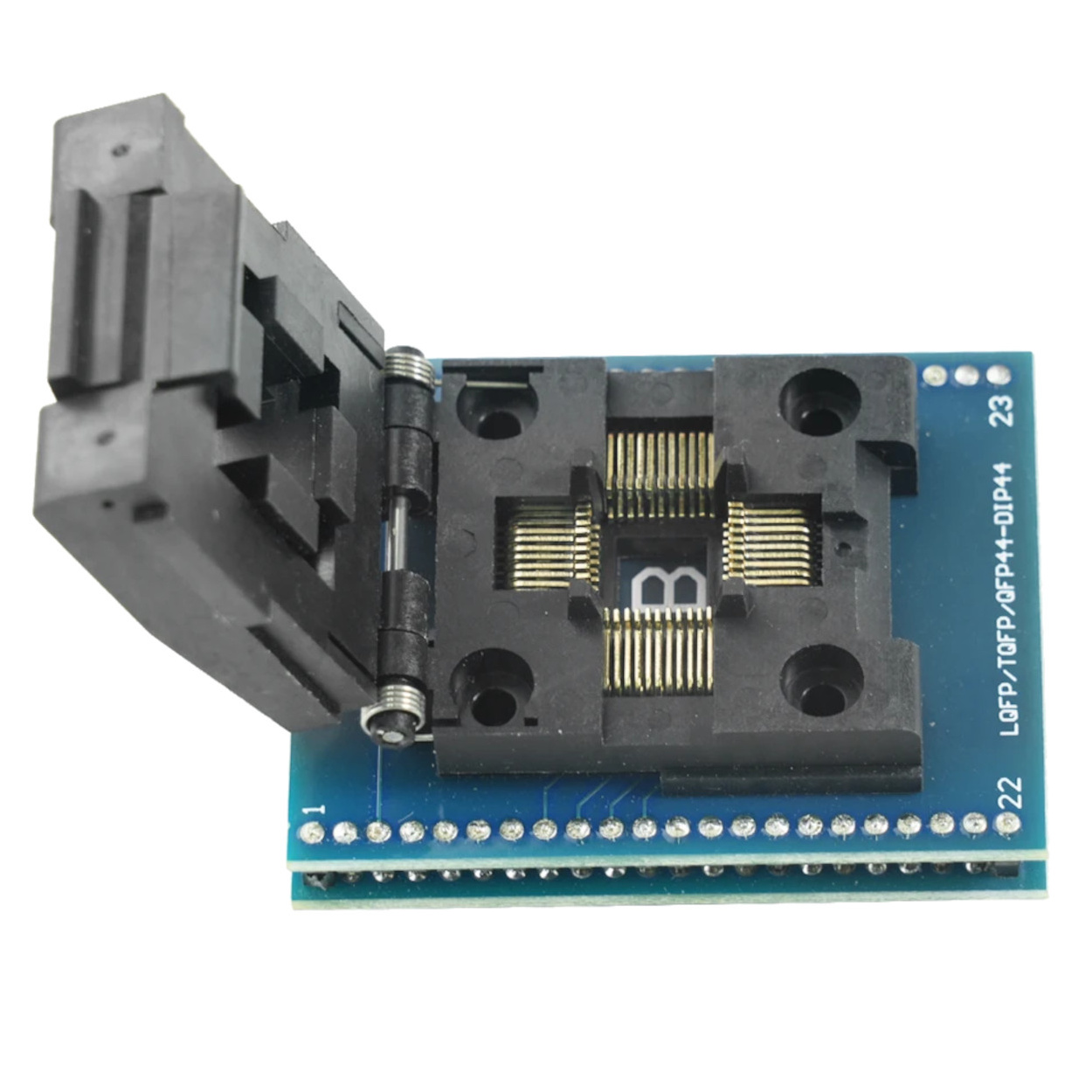

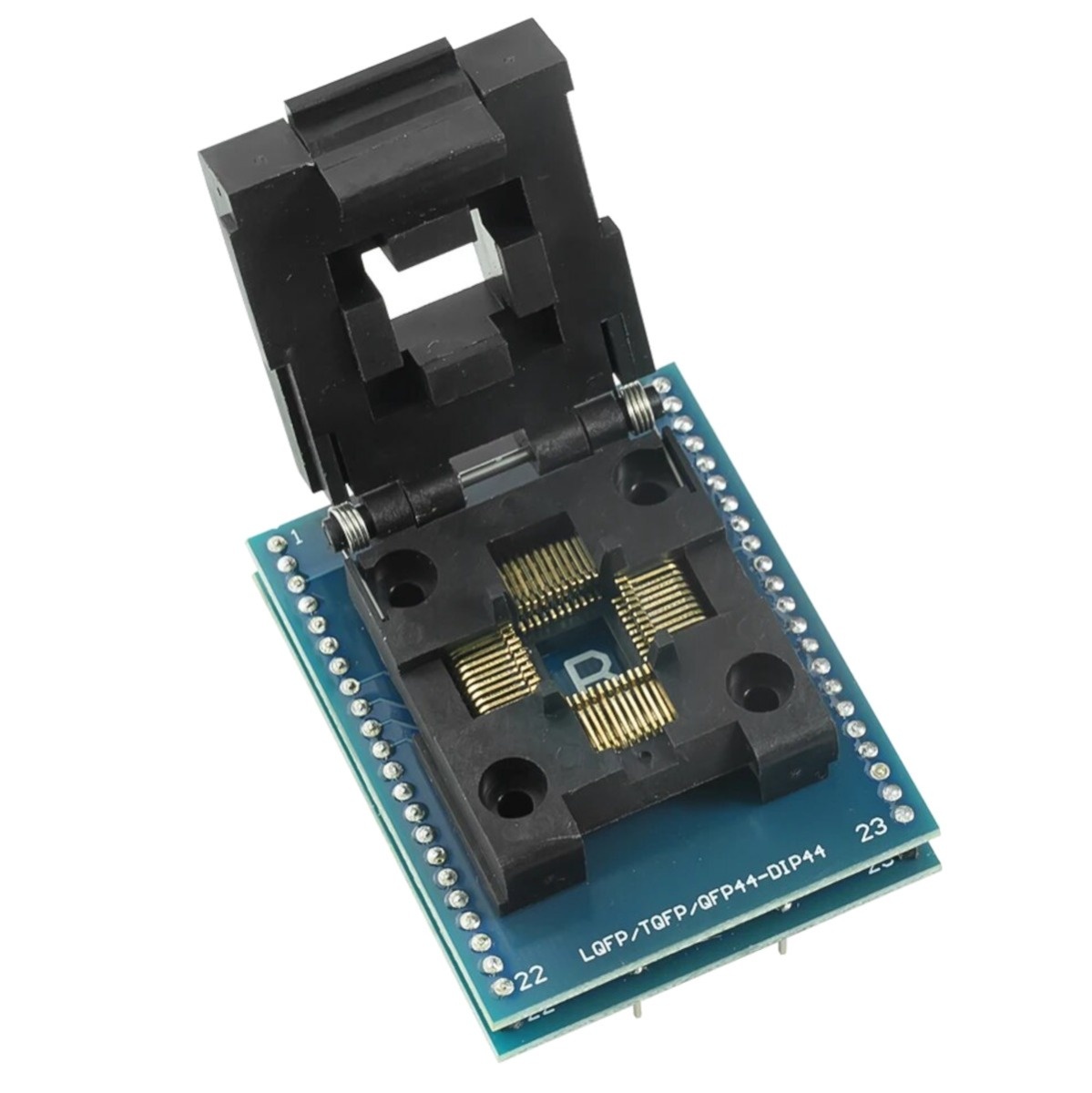

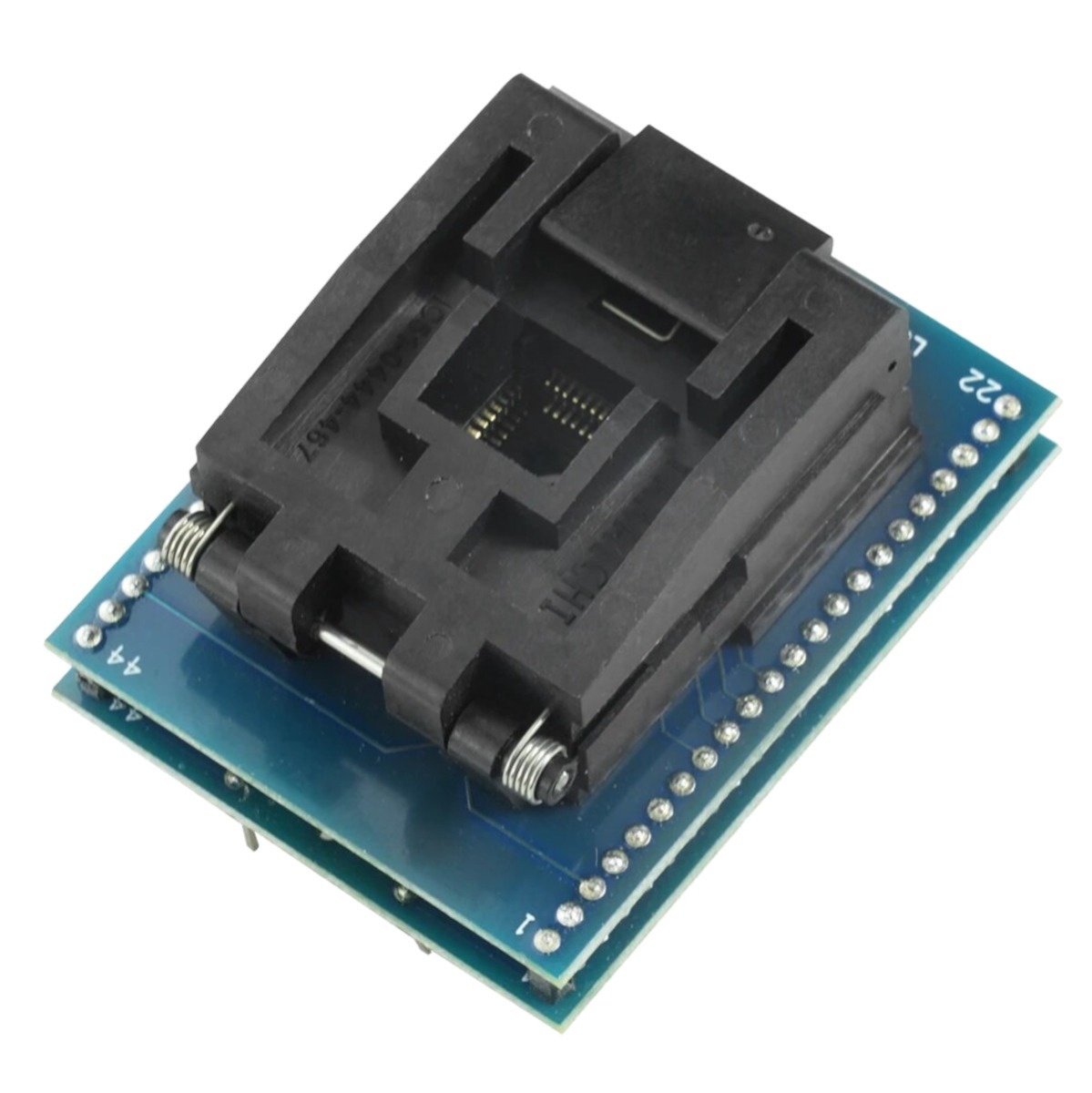

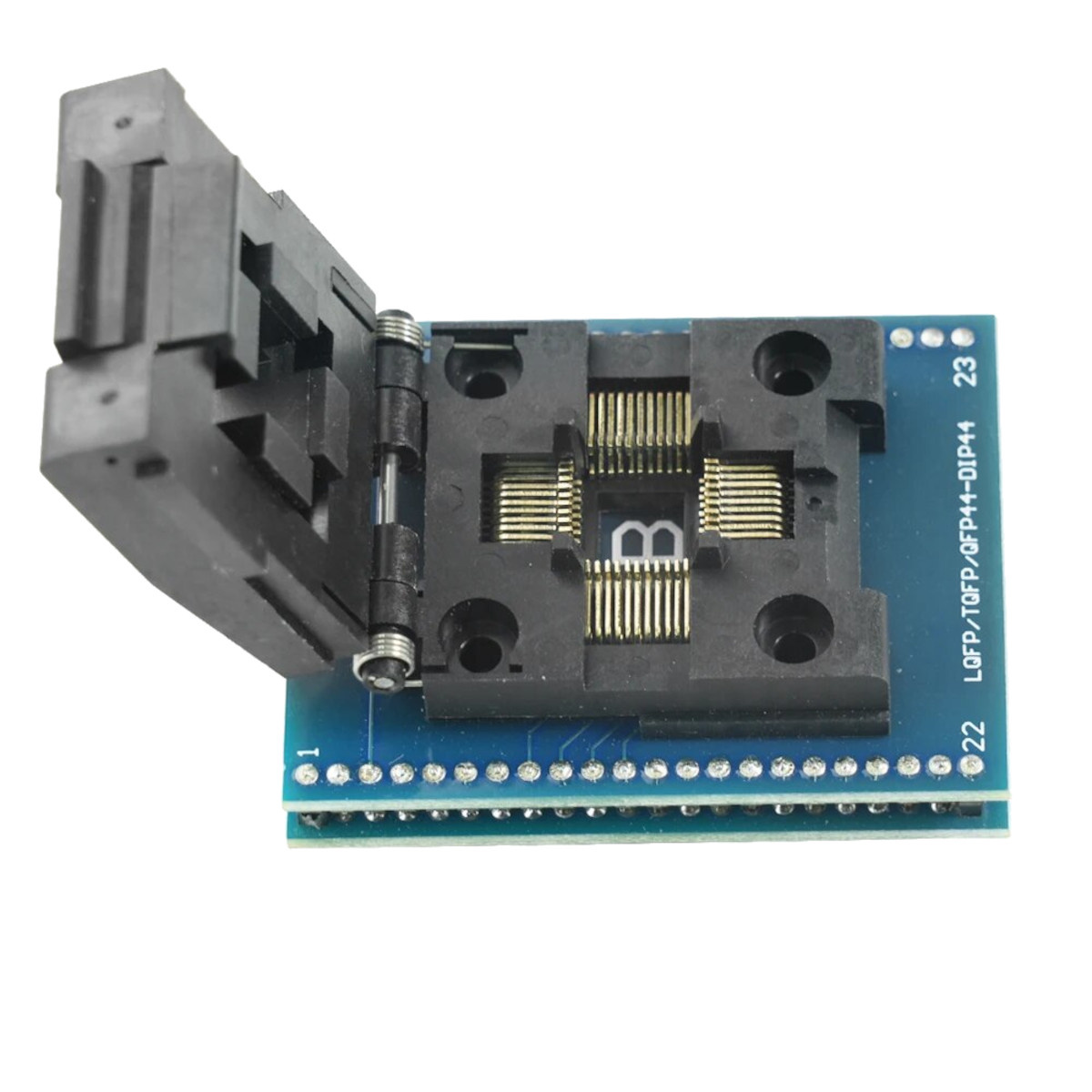

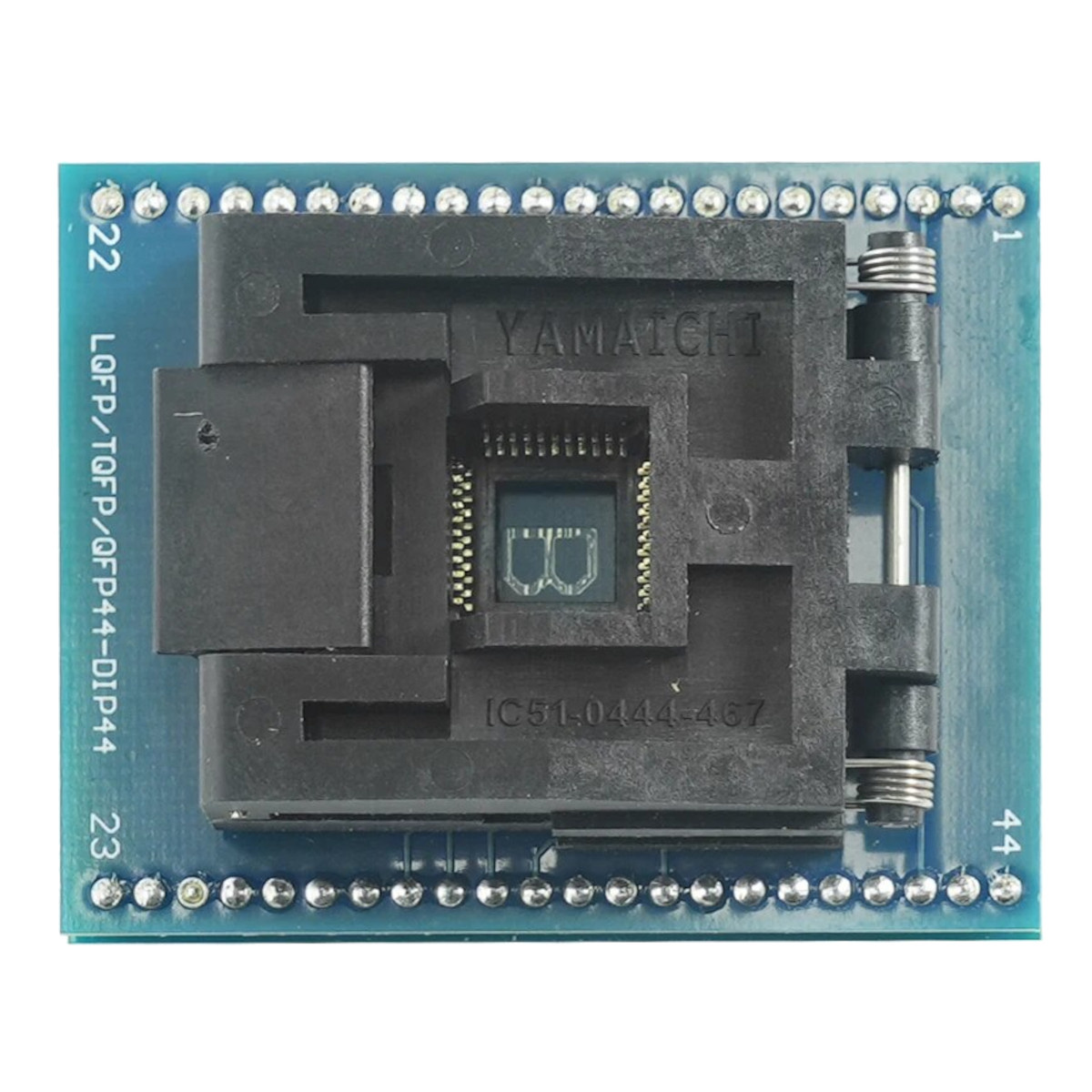

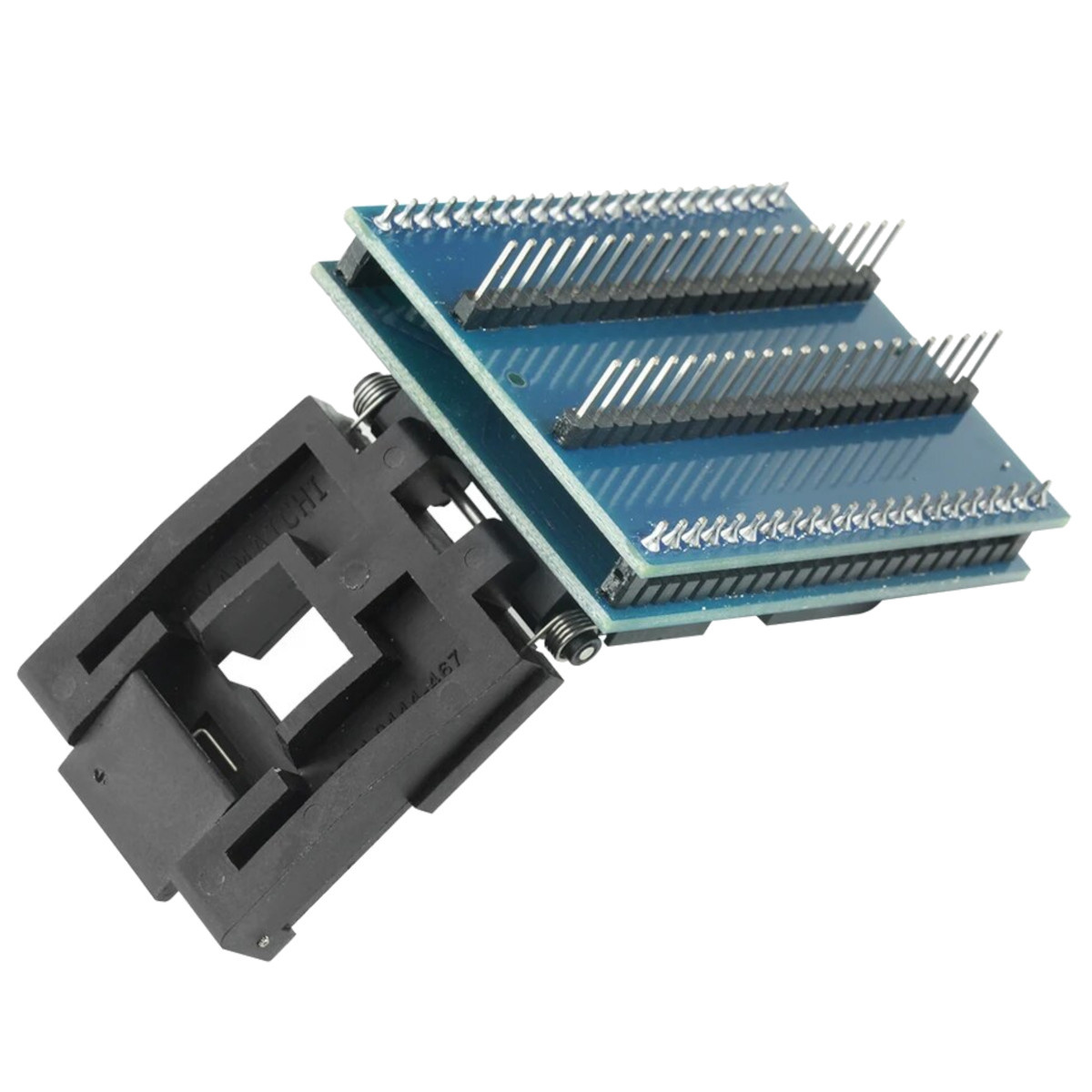

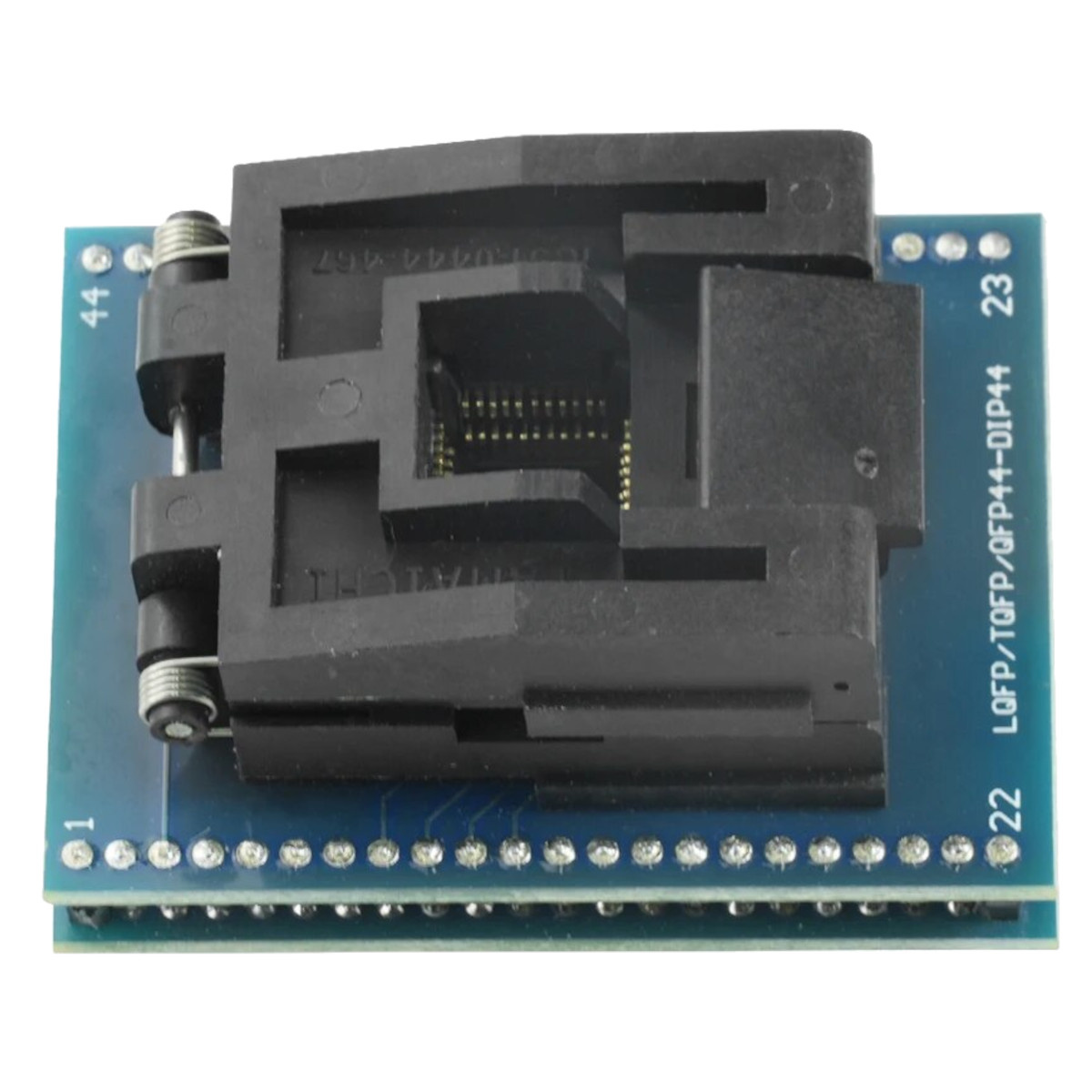

QFP44/TQFP44 to DIP40 IC Converter Adapter Board (0.8mm Pitch, 10x10mm, FR4 Breakout PCB)

The QFP44/TQFP44 to DIP40 IC Converter Adapter Board is a compact breakout PCB designed to convert QFP44 and TQFP44 surface-mount integrated circuits into a standard DIP40 format for easy prototyping, programming, and testing. It supports ICs with a 0.8mm pin pitch and 10mm × 10mm body size, making it suitable for Atmel ATmega TQFP44 microcontrollers and other compatible devices. The adapter converts the fine-pitch SMD connections into standard 2.54mm DIP spacing, allowing the IC to be used with breadboards, DIP sockets, programmers, and prototype PCBs without requiring a custom PCB.

Key Features -

• Converts QFP44/TQFP44 package to DIP40 format

• Supports 0.8mm pin pitch ICs

• Compatible with 10mm × 10mm package size

• Standard 2.54mm DIP pin spacing

• Suitable for Atmel ATmega TQFP44 devices

• High-quality double-sided FR4 PCB

• Breadboard and DIP socket compatible

• Clearly marked pin numbering

• Easy SMD soldering

• Ideal for prototyping and IC testing

Specifications -

• Product type - IC Converter Adapter Board

• Converter type - QFP44/TQFP44 to DIP40

• Supported package - QFP44 / TQFP44

• Input pin pitch - 0.8mm

• Supported IC body size - 10mm × 10mm

• Output format - DIP40

• Output pin spacing - 2.54mm

• PCB material - Double-Sided FR4

• Mounting type - Through-Hole DIP

• Application - Prototyping, Programming and IC Testing

Applications -

• Microcontroller prototyping

• Atmel ATmega development

• IC programming

• Breadboard development

• Embedded system design

• Electronics repair

• Educational laboratories

• DIY electronics projects
