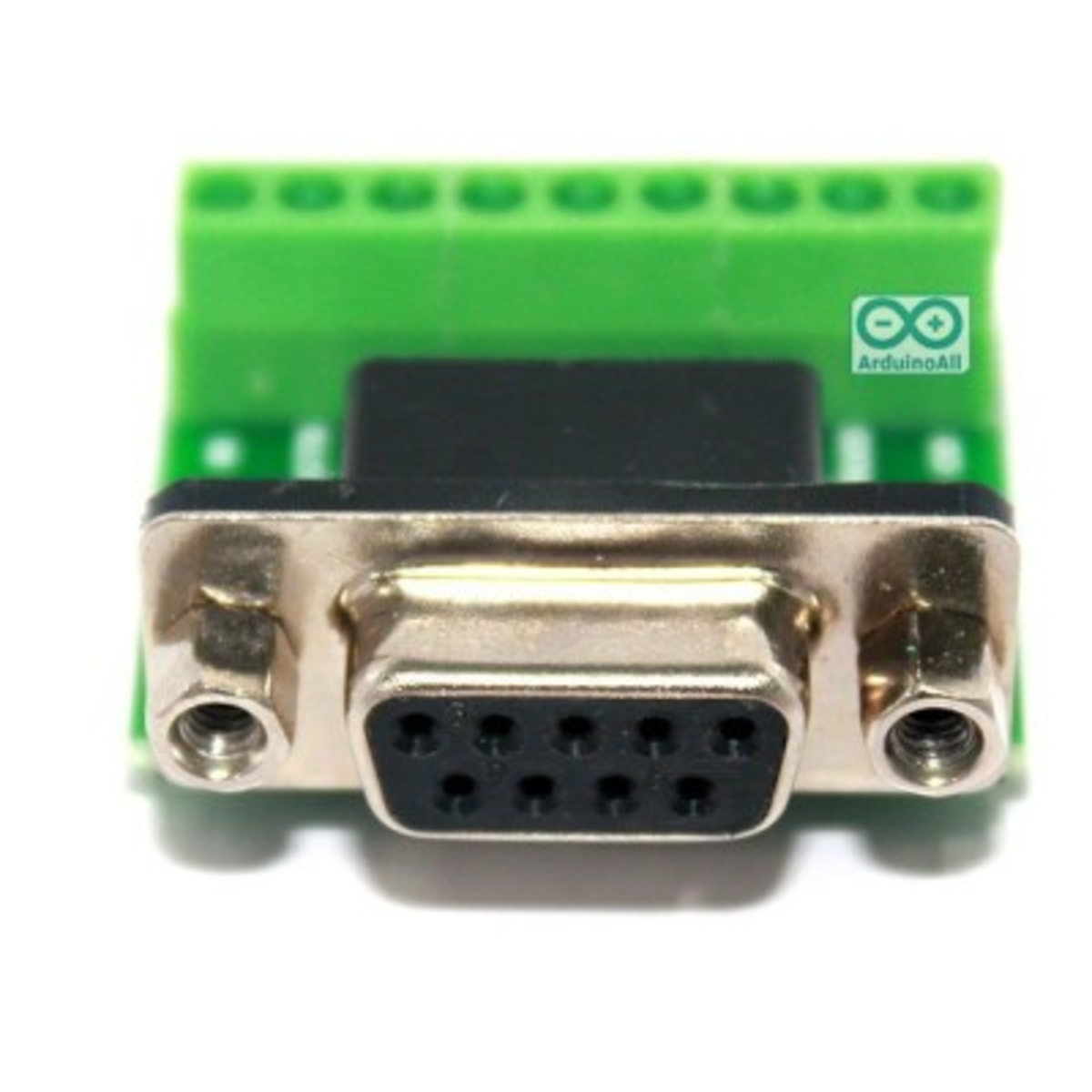

DB9 Female Screw Terminal RS232 RS485 Conversion Board (Serial Communication Adapter)

The DB9 Female Screw Terminal RS232 RS485 Conversion Board is a compact serial interface adapter designed to provide convenient wiring between a DB9 female connector and screw terminal connections. It is suitable for connecting serial communication equipment, PLCs, industrial controllers, and embedded systems.

The screw terminal interface allows secure and convenient connection of communication wires without soldering. The board can be used for RS232 or RS485 wiring depending on the specific circuit and version, making it useful for serial communication and industrial automation applications.

KEY FEATURES -

• DB9 female serial connector

• Screw terminal interface for easy wiring

• Supports RS232 and RS485 connections depending on configuration

• Compact PCB adapter design

• Secure screw terminal connections

• Solder-free wiring for communication cables

• Suitable for PLC and industrial equipment interfacing

• Easy integration with embedded systems

SPECIFICATIONS -

• Connector Type = DB9 female

• Terminal Type = Screw terminal

• Communication Interface = RS232 / RS485 depending on configuration

• Data Rate = Up to 1Mbps typical

• RS485 Communication Distance = Up to 1200m depending on cable and data rate

• Operating Voltage = 5V DC typical where required

• Isolation = Depends on module version

• Module Size = Approx. 50 x 30mm

APPLICATIONS -

• RS232 serial communication

• RS485 communication wiring

• PLC interfacing

• Industrial automation systems

• Embedded controller connections

• Serial communication testing

• Industrial equipment wiring

• Microcontroller communication projects
