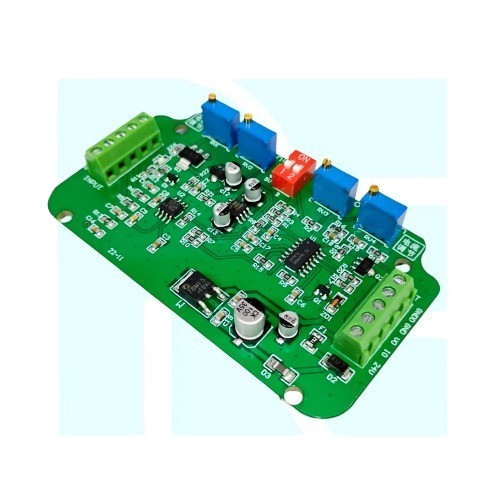

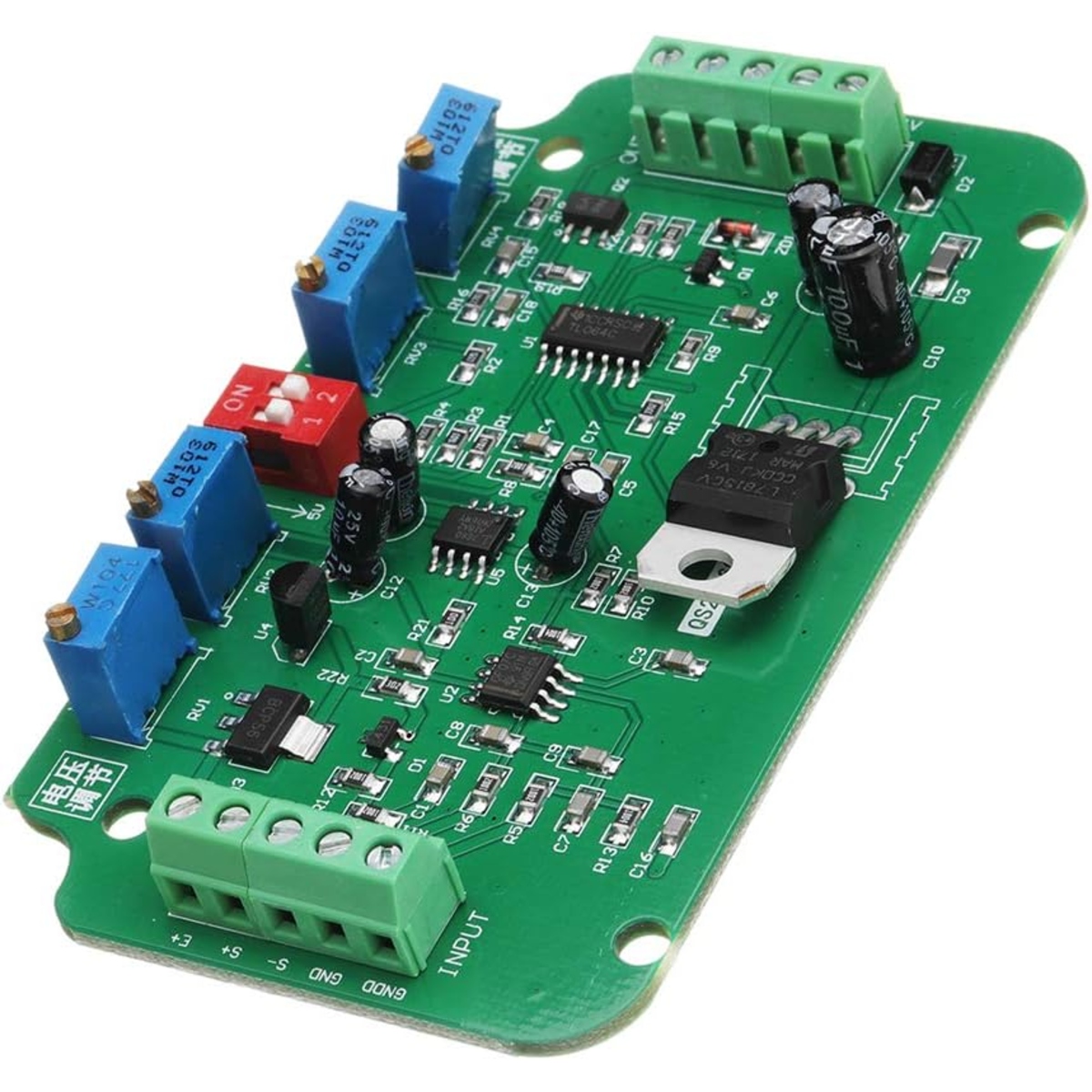

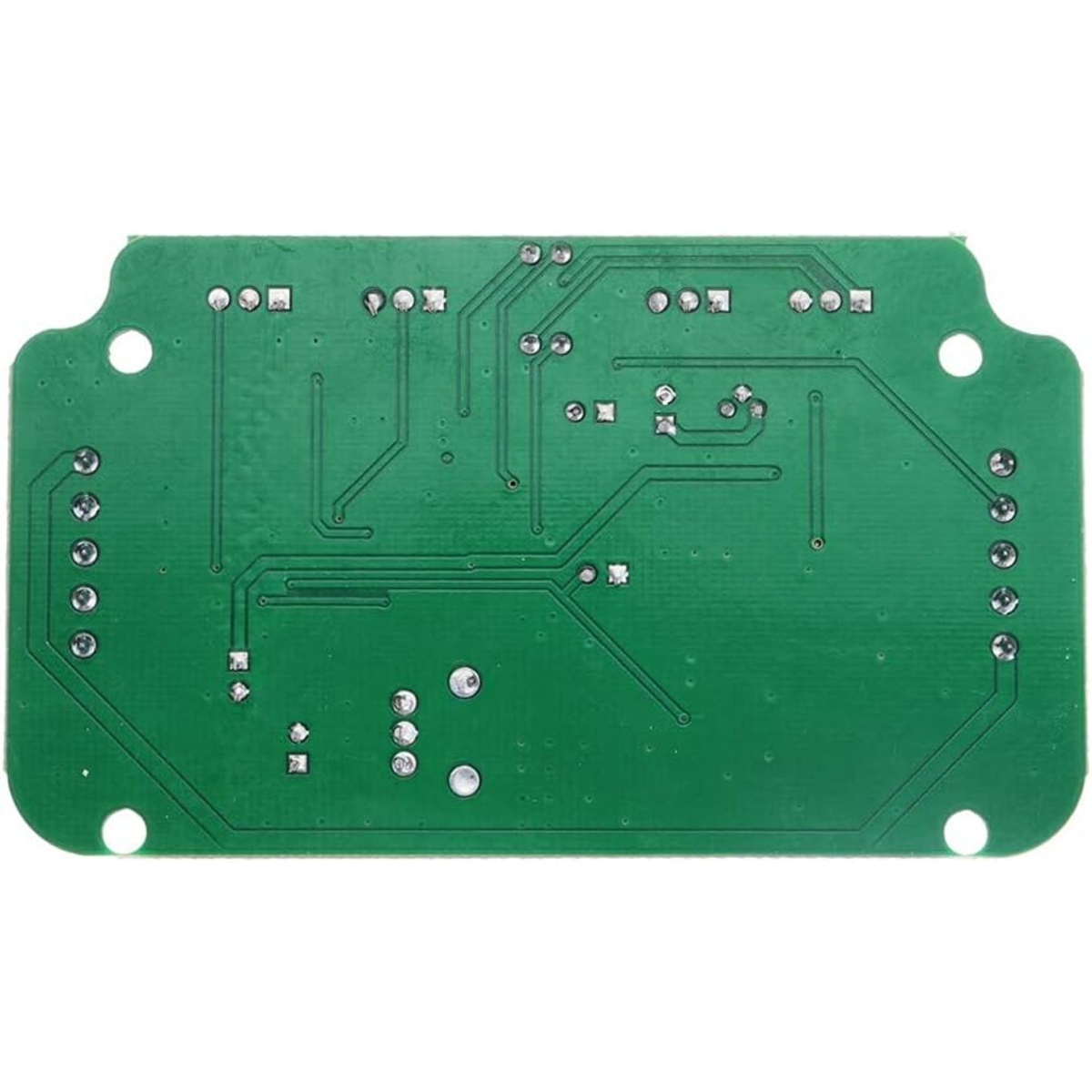

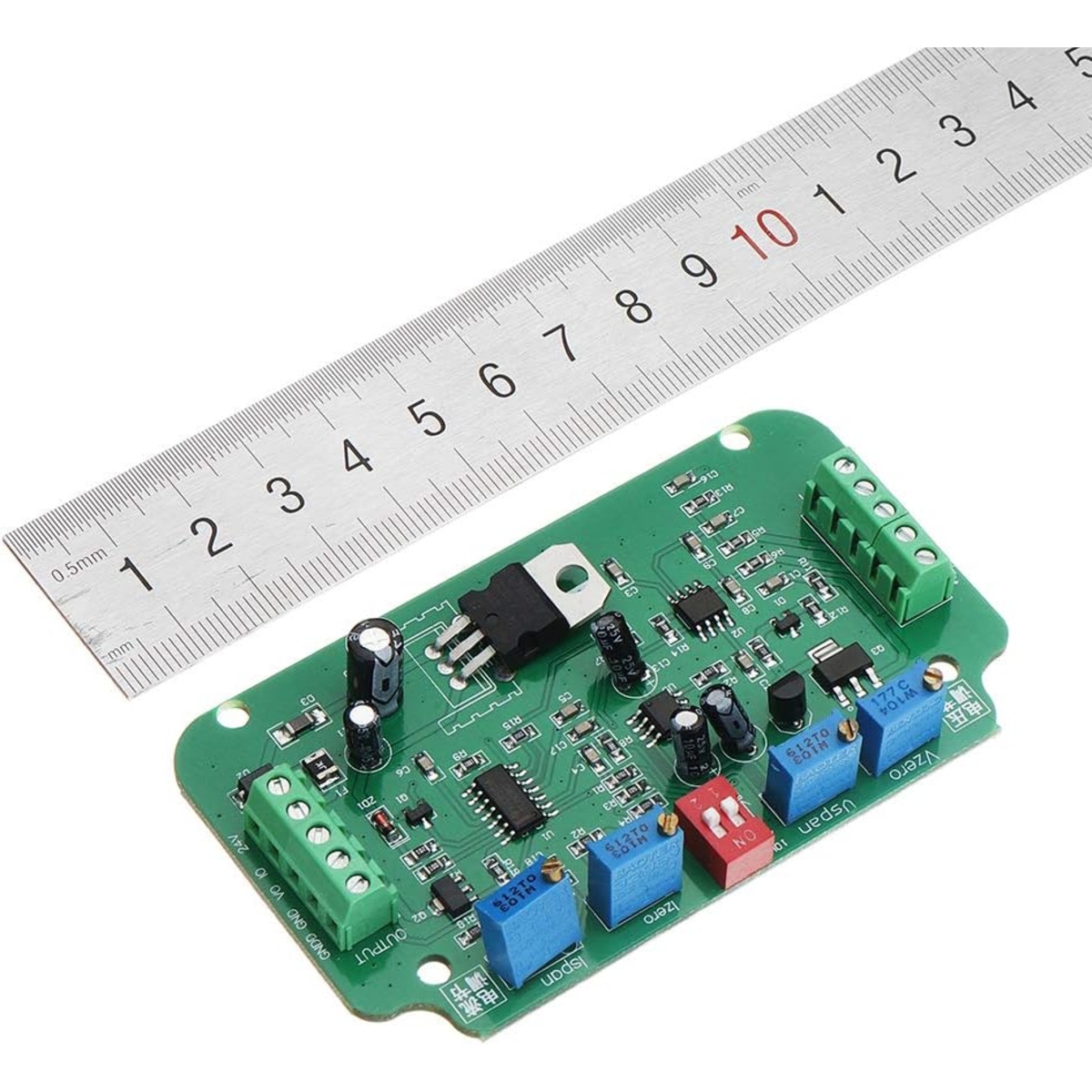

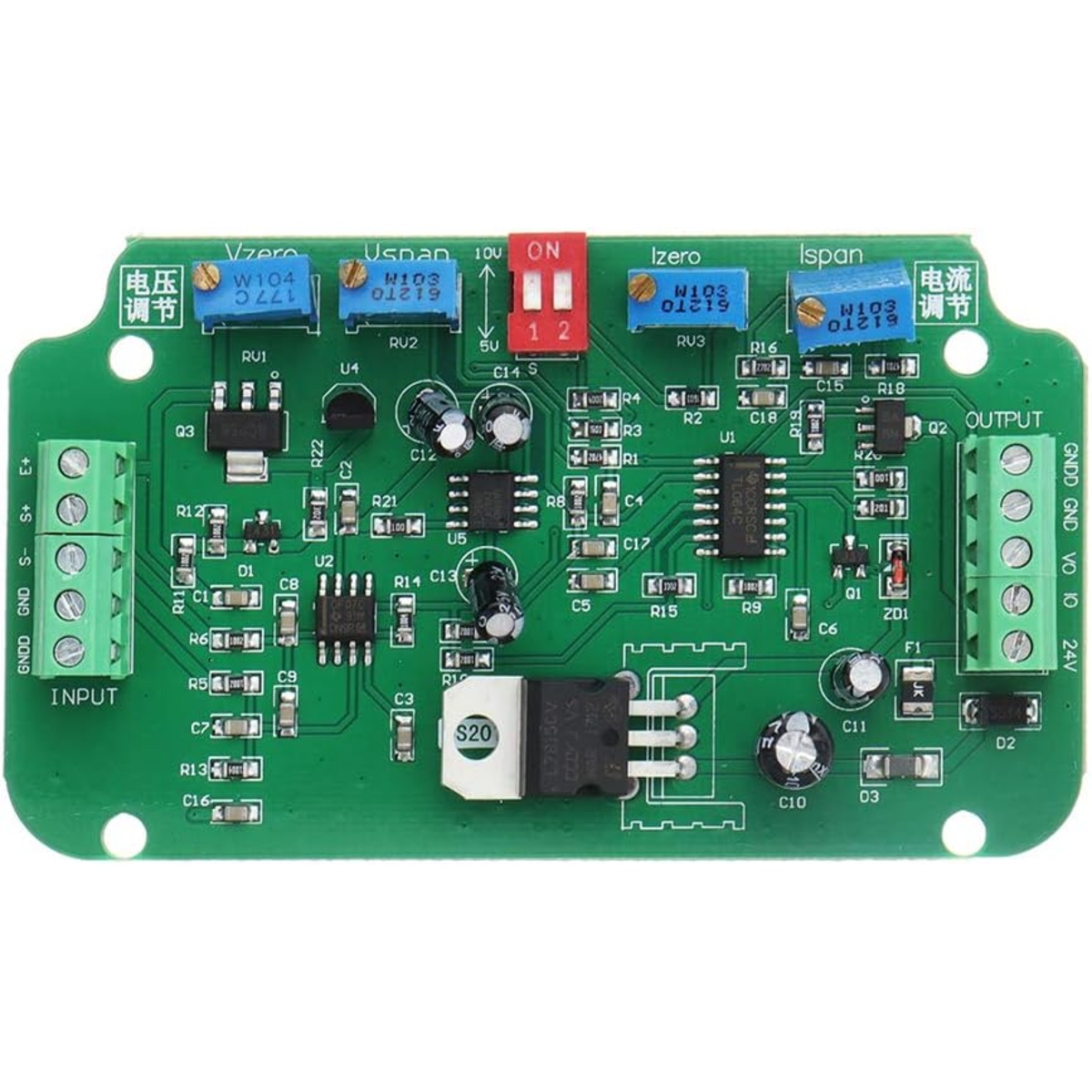

12-24V Load Cell to 4-20mA Signal Converter (Weighing Transmitter)

The Load Cell to 4-20mA Signal Converter is a signal conditioning module designed to amplify the millivolt output of a load cell and convert it into a standard 4-20mA industrial current signal. It operates from a 12-24V DC supply and provides a convenient interface between load cells and industrial control systems.

This module is suitable for industrial weighing systems, platform scales, batching systems, PLC interfaces, process automation, and long-distance weight signal transmission.

Key Features -

• Converts load cell mV signal to 4-20mA output

• 12-24V DC supply operation

• High-precision load cell signal amplification

• Standard industrial 4-20mA current loop

• Suitable for PLC and automation systems

• Stable signal transmission over longer distances

• Adjustable zero and gain settings

• Compact PCB module design

Specifications -

• Product Type = Load Cell Signal Converter

• Input Signal = Load Cell Millivolt Signal

• Output Signal = 4-20mA Current Loop

• Supply Voltage = 12-24V DC

• Signal Type = Analog

• Adjustment = Zero and Gain Calibration

• Response = Fast Signal Response

• Operating Temperature = -20°C to +60°C

• Mounting Type = PCB Module

• Application = Weighing / Industrial Automation

Applications -

• Industrial weighing systems

• Platform weighing scales

• Load cell signal conversion

• Batching and filling systems

• PLC weight measurement

• Process automation

• Long-distance sensor signal transmission

• Industrial control systems
