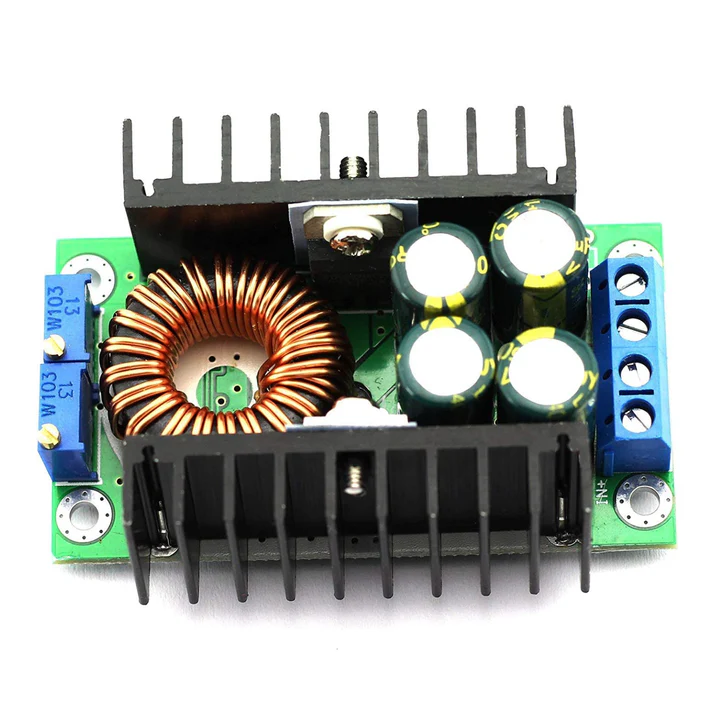

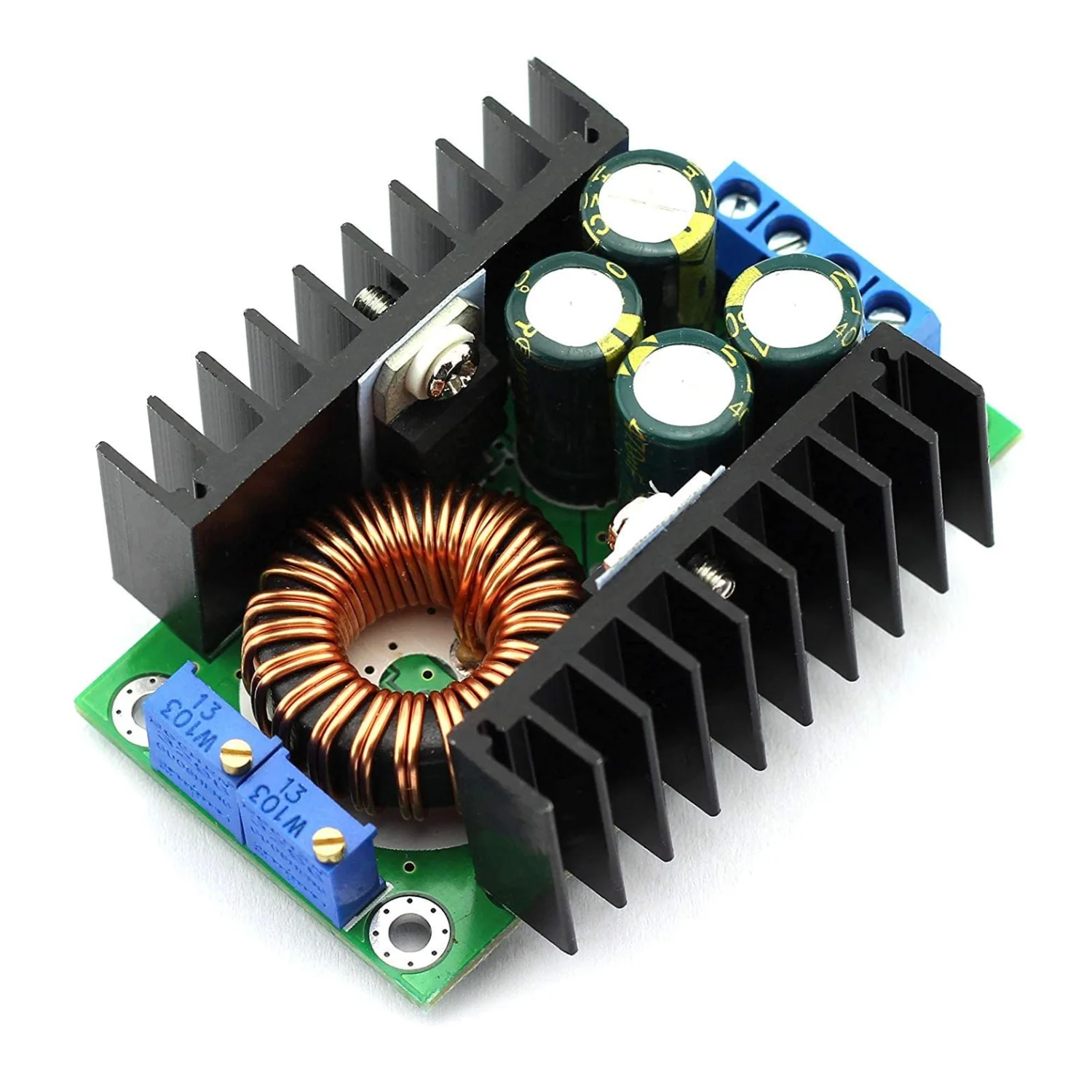

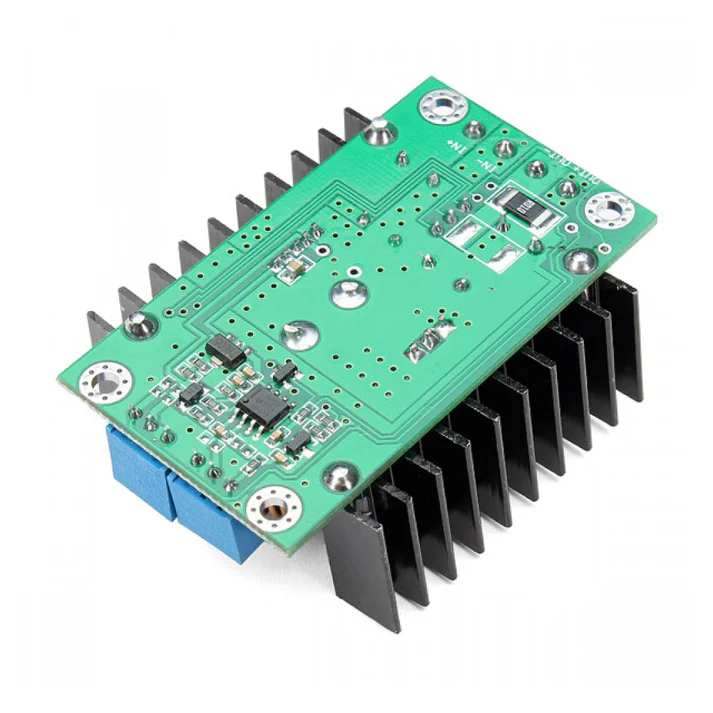

DC 24V to 12V CC CV Step Down Volts Regulator Constant Current Voltage 12A Adjustable Buck Converter 7-32V to 0.8-28V LED Driver Power Supply

The DC Step Down Buck Converter is a high current adjustable power regulation module designed for constant current and constant voltage applications. It supports input voltage from 7V to 32V DC and provides adjustable output voltage from 0.8V to 28V DC. The module is suitable for stepping down 24V systems to 12V or other required voltage levels with stable regulation.

This converter supports up to 12A output current and is ideal for LED driver applications, battery charging systems, industrial control panels, and embedded power supply designs. The CC CV control allows precise current limiting and voltage adjustment for safe and efficient operation.

KEY FEATURES

• Input voltage range 7V to 32V DC
• Adjustable output voltage 0.8V to 28V DC
• Supports DC 24V to 12V conversion
• Constant current and constant voltage control
• Up to 12A output current
• High efficiency buck conversion
• Suitable for LED driver applications

SPECIFICATIONS

• Product Type - DC step down buck converter
• Input Voltage - 7V to 32V DC
• Output Voltage - 0.8V to 28V DC adjustable
• Maximum Output Current - 12A
• Regulation Mode - Constant Current CC and Constant Voltage CV
• Conversion Type - Step Down Buck
• Application - LED driver and DC power regulation

INTERFACES

• DC Input Terminals - Connect 7V to 32V power source
• DC Output Terminals - Adjustable regulated output
• Current Adjust Potentiometer - Set output current limit
• Voltage Adjust Potentiometer - Set output voltage level
