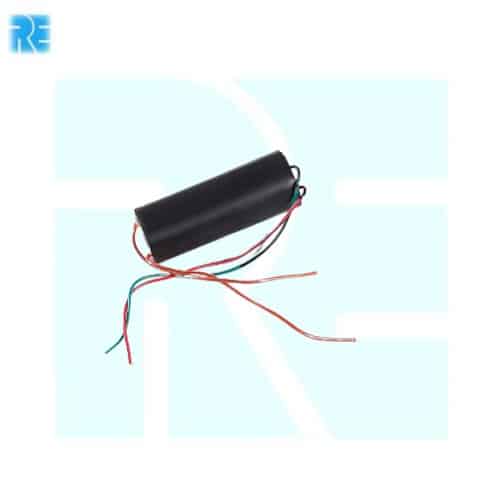

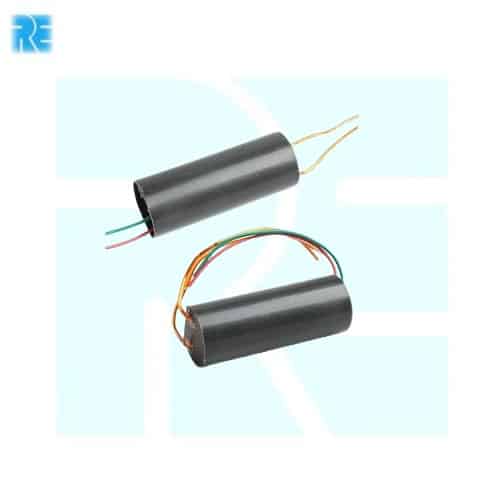

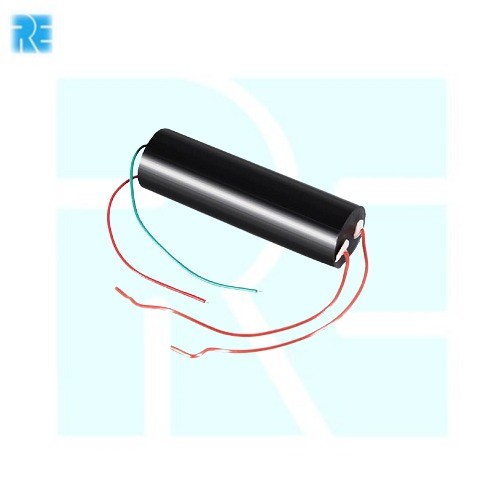

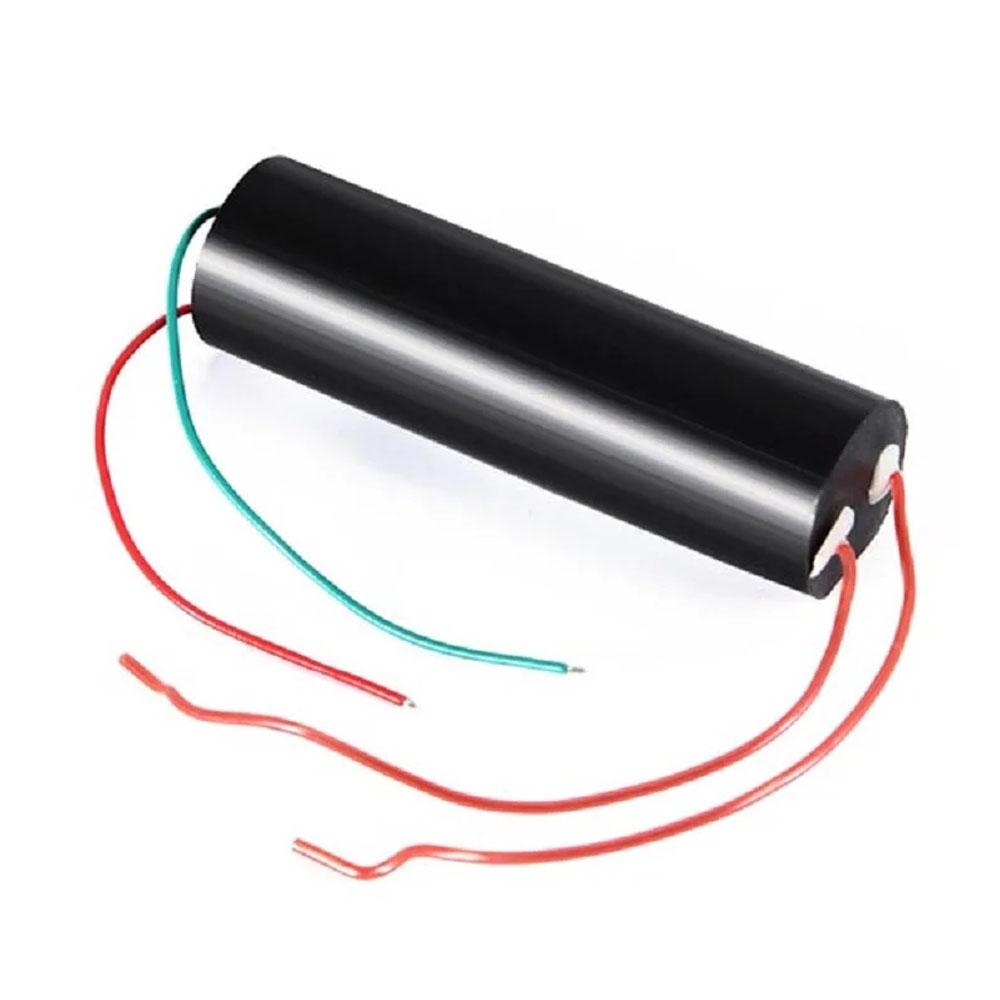

DC 3V-6V to 1000KV High Voltage Boost Step Up Module

The DC 3V-6V High Voltage Boost Step Up Module is a compact high voltage generator designed to convert low DC input voltage into high voltage pulses. It uses an oscillator and step up transformer circuit to generate high voltage output for specialized electronic applications and experiments.

The module can be powered from a low voltage DC source such as a battery and is designed for high voltage generation applications. Due to the high voltage output, appropriate insulation, enclosure, and safety precautions are required during operation.

Key Features -

• Low voltage DC input operation

• Step up transformer based high voltage generation

• Compact high voltage generator module

• High voltage pulse output

• Simple two wire power input

• Suitable for specialized high voltage applications

• Compact design for electronic projects and experiments

Specifications -

• Input Voltage = DC 3V-6V

• Output Voltage = Up to 1000KV pulse output

• Output Type = High voltage pulse

• Conversion Type = Boost step up transformer circuit

• Input Connection = Two wire DC input

• Application = High voltage generation and electronic experiments

Applications -

• High voltage electronic experiments

• Electrical discharge demonstrations

• Specialized ignition systems

• High voltage testing projects

• Educational electronics experiments

• High voltage circuit prototyping
