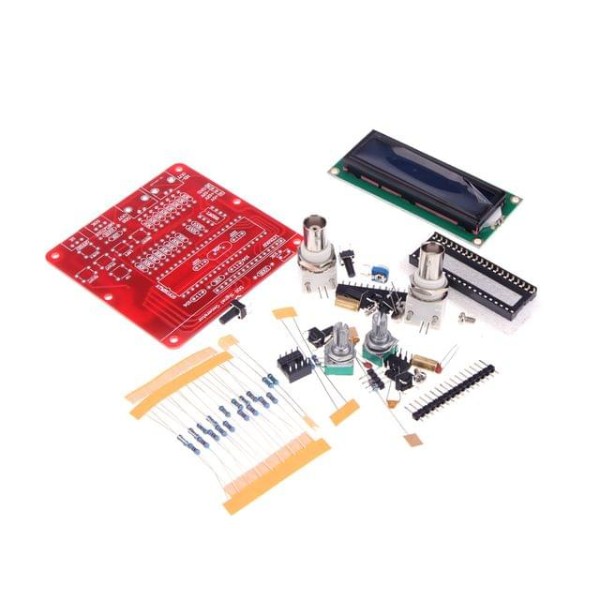

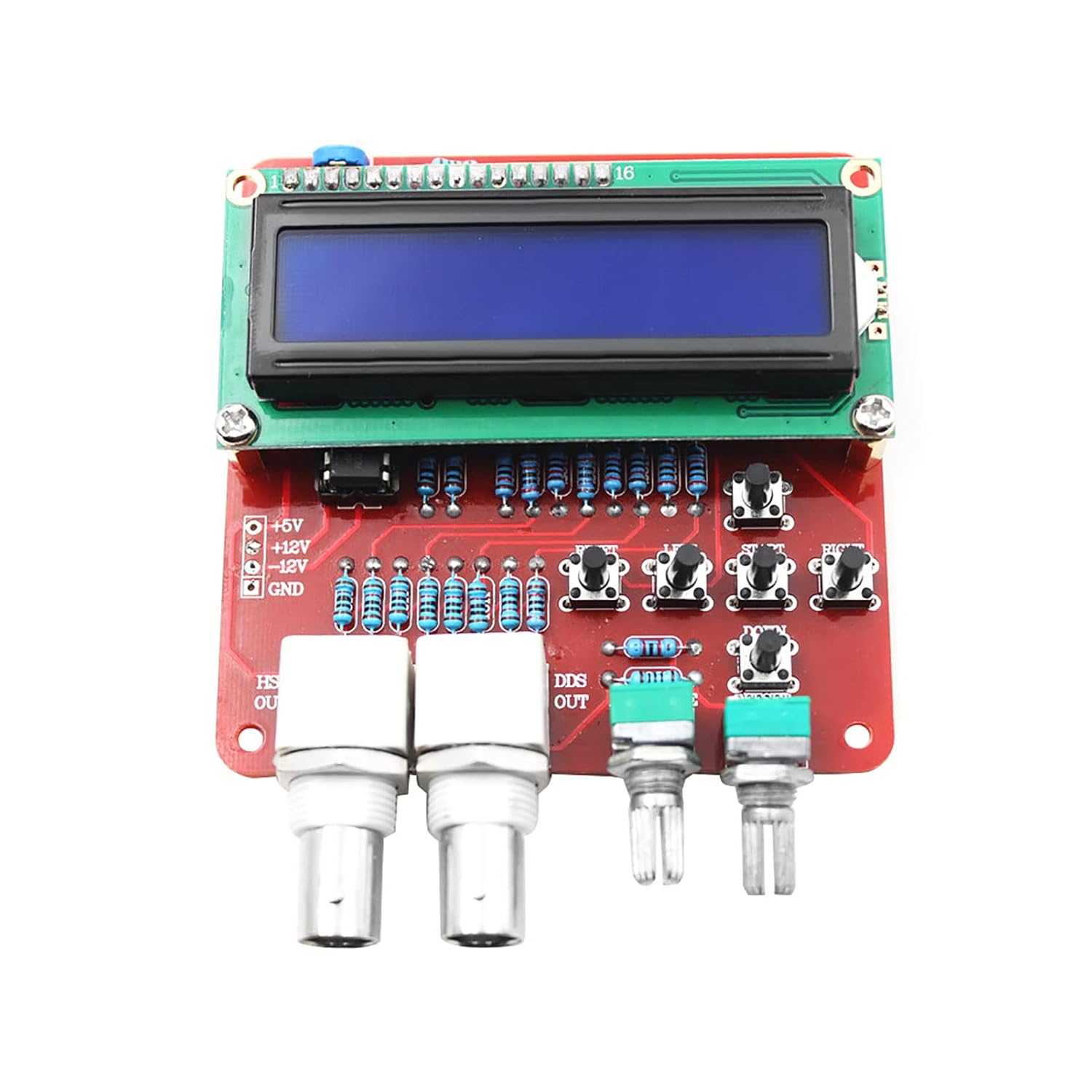

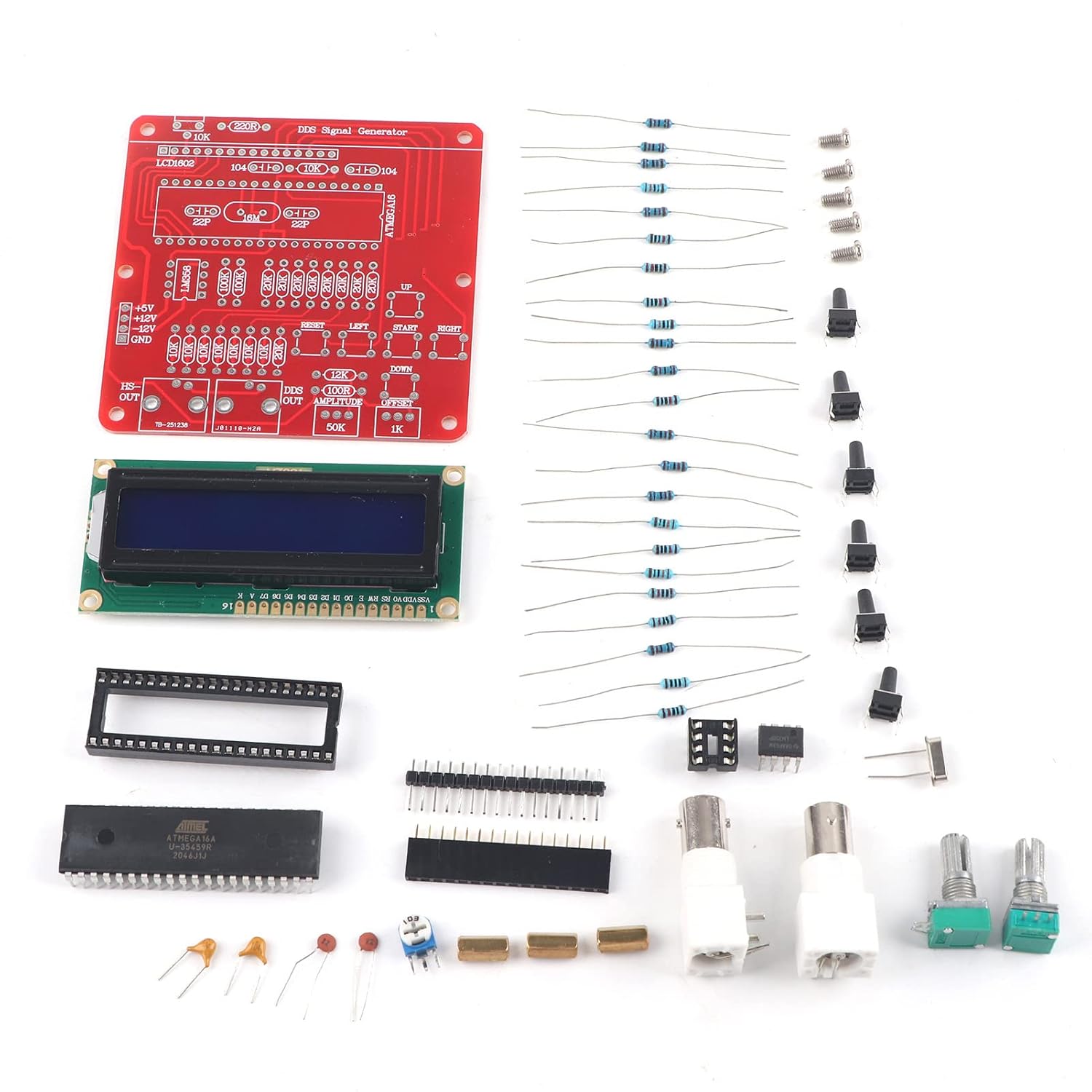

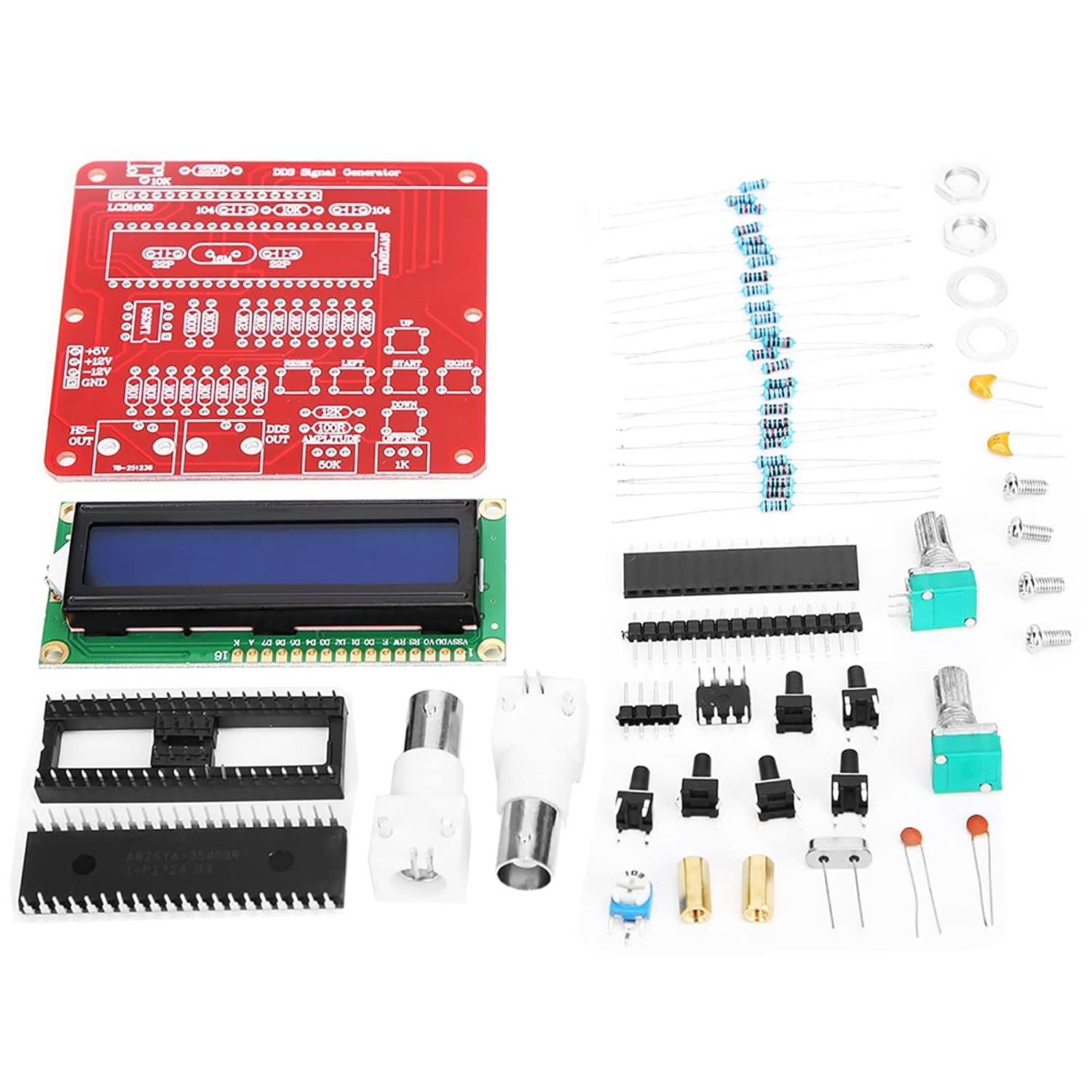

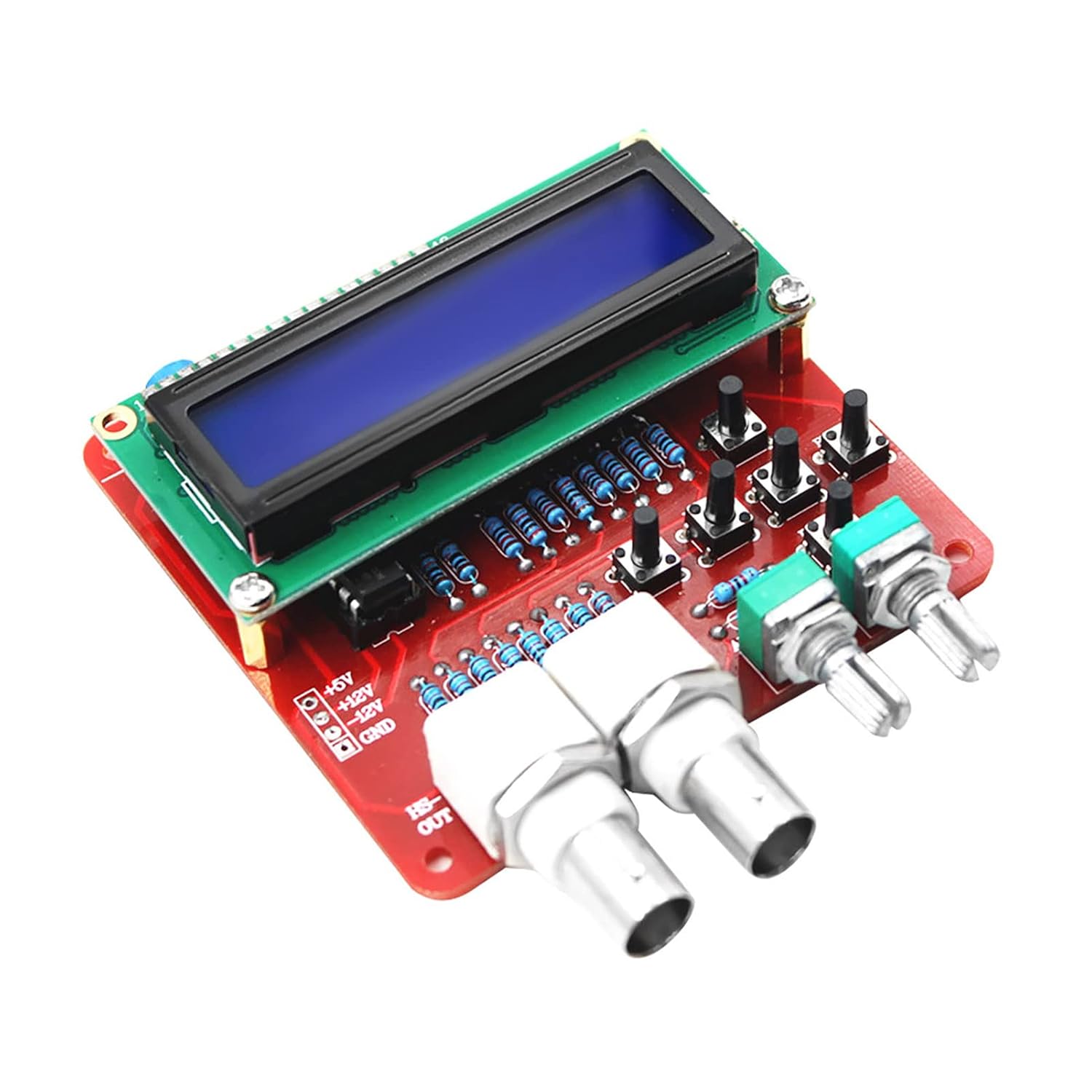

DDS Function Signal Generator Module DIY Kit (Multi-Waveform Signal Generator)

The DDS Function Signal Generator Module DIY Kit is a versatile waveform generation kit designed for electronics testing, circuit development, and laboratory experiments. Based on Direct Digital Synthesis (DDS) technology, it generates multiple waveform types including sine, square, triangle, pulse, sawtooth, and noise signals with adjustable frequency, amplitude, and offset. The module also provides high-speed clock outputs, making it suitable for microcontroller clock generation, signal testing, and educational applications. This DIY kit requires external power supplies and assembly before use.

Key Features -

• DDS Direct Digital Synthesis technology

• Generates sine, square, triangle, pulse, sawtooth and noise waveforms

• Adjustable frequency from 1Hz to 65535Hz

• Frequency step selection of 1Hz, 10Hz, 100Hz, 1kHz and 10kHz

• Adjustable output amplitude and DC offset

• High-speed clock outputs of 1MHz, 2MHz, 4MHz and 8MHz

• LCD display for parameter monitoring

• DIY kit for educational and laboratory use

• Stable and accurate waveform generation

• Suitable for circuit testing and signal analysis

Specifications -

• Product type - DDS Function Signal Generator Module

• Technology - Direct Digital Synthesis (DDS)

• Waveforms - Sine, Square, Triangle, Pulse, Positive Sawtooth, Negative Sawtooth and Noise

• Frequency range - 1Hz to 65535Hz

• Frequency step - 1Hz, 10Hz, 100Hz, 1kHz and 10kHz

• High-speed clock output - 1MHz, 2MHz, 4MHz and 8MHz

• Output adjustment - Frequency, Amplitude and DC Offset

• MCU supply voltage - 5V DC

• Operational amplifier supply - ±12V DC

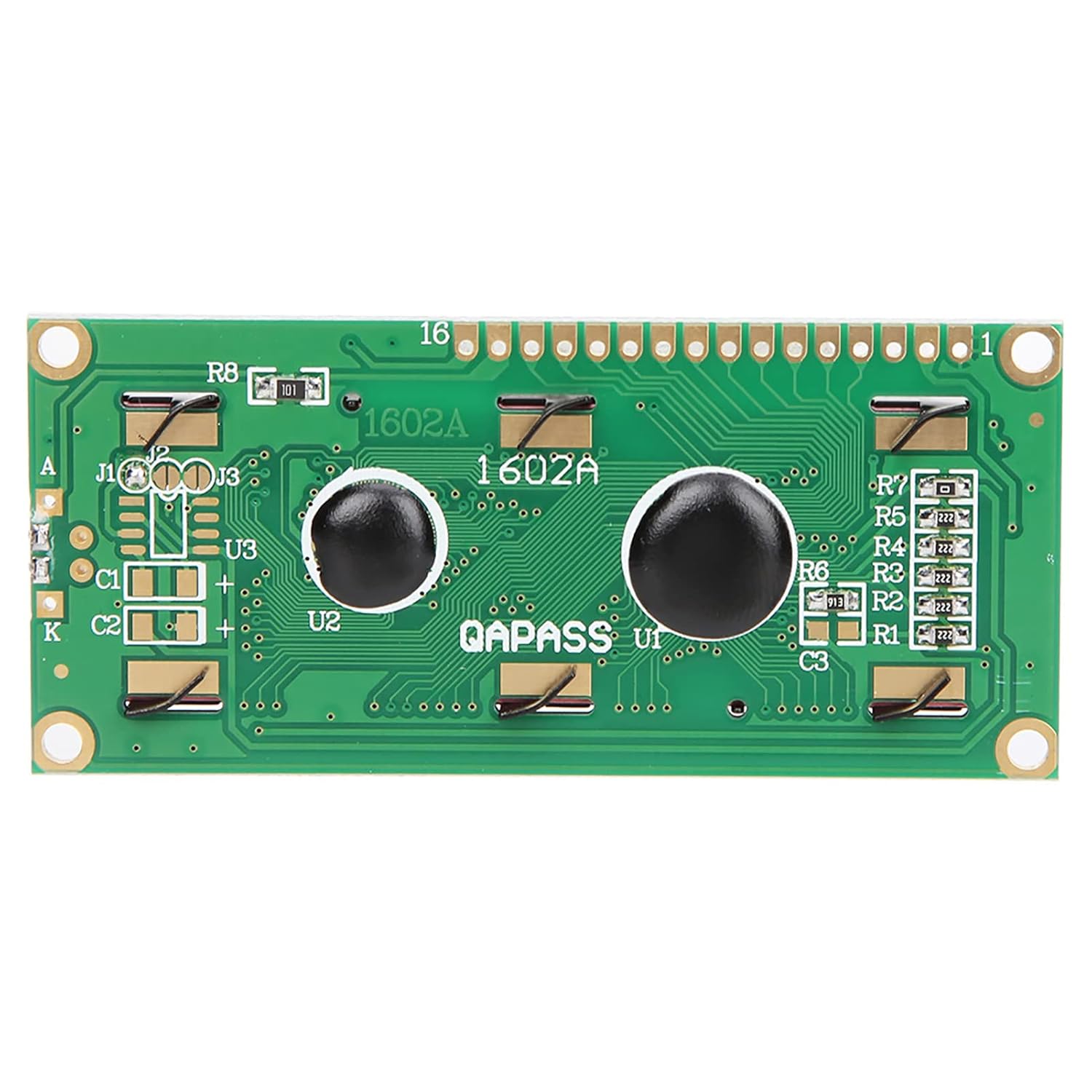

• Display - LCD

• Board type - DIY DDS Signal Generator Kit

Applications -

• Electronics laboratories

• Analog circuit testing

• Digital circuit development

• Audio amplifier testing

• Filter testing

• Microcontroller clock source

• Educational experiments

• DIY electronics projects
