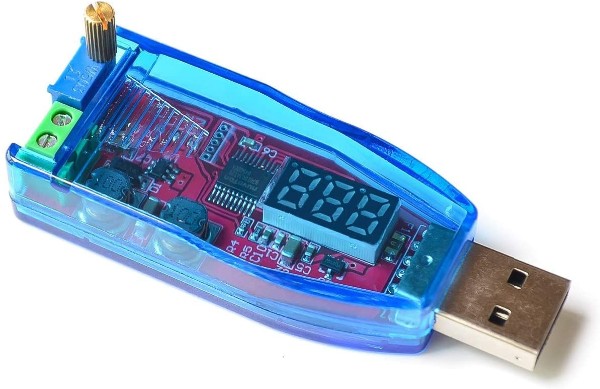

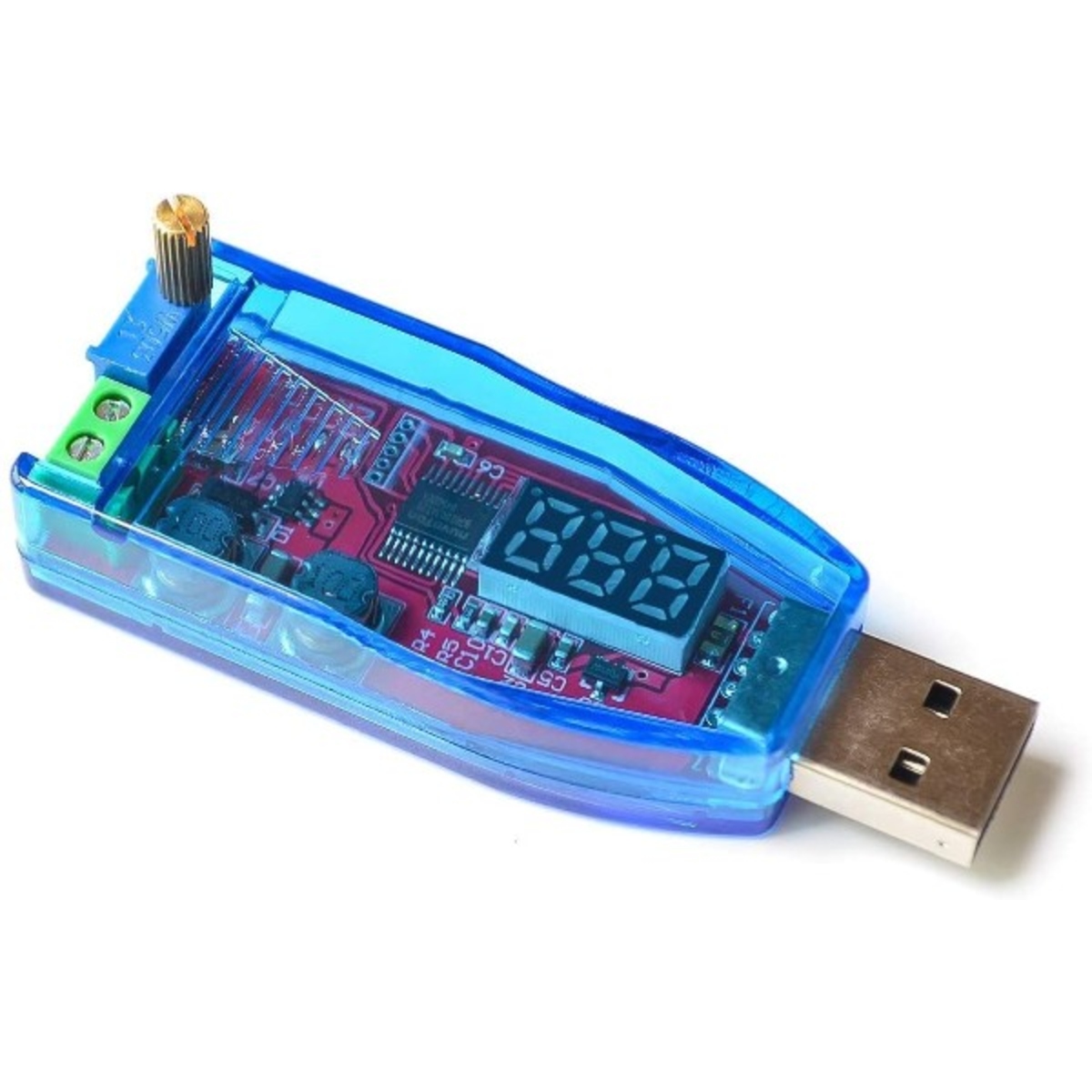

Digital Display DC-DC USB Adjustable Buck-Boost Power Supply Voltage Regulator Module 5V To 3.3V 9V 12V 24V DP LED

The Digital Display DC-DC USB Adjustable Buck-Boost Power Supply Module is a compact voltage regulator designed for flexible DC power conversion. It supports both step up and step down operation, allowing output voltage to be lower or higher than the input voltage. The integrated digital display provides real time monitoring of output voltage depending on configuration.

This module is suitable for USB powered applications, embedded systems, laboratory testing, and battery operated projects. It allows adjustable output settings for common voltage levels such as 3.3V, 9V, 12V, and 24V, making it suitable for development and maintenance tasks.

KEY FEATURES

• Buck-boost DC-DC voltage regulator
• Supports step up/step down operation
• USB input support 5V
• Digital LED display for voltage indication
• Adjustable output voltage
• Compact integrated module design
• Suitable for development and bench testing

SPECIFICATIONS

• Input Voltage = 5V-32V DC
• USB Input = 5V DC
• Output Voltage = 3.3V/9V/12V/24V adjustable
• Output Current = Up to 2A max
• Control Mode = Adjustable voltage regulation
• Display Type = LED digital display
• Conversion Type = Buck-boost switching regulator

INTERFACES

• VIN+ = DC input positive
• VIN- = DC input negative
• USB = 5V input port
• VOUT+ = Regulated output positive
• VOUT- = Regulated output negative
• ADJ = Output voltage adjustment control
