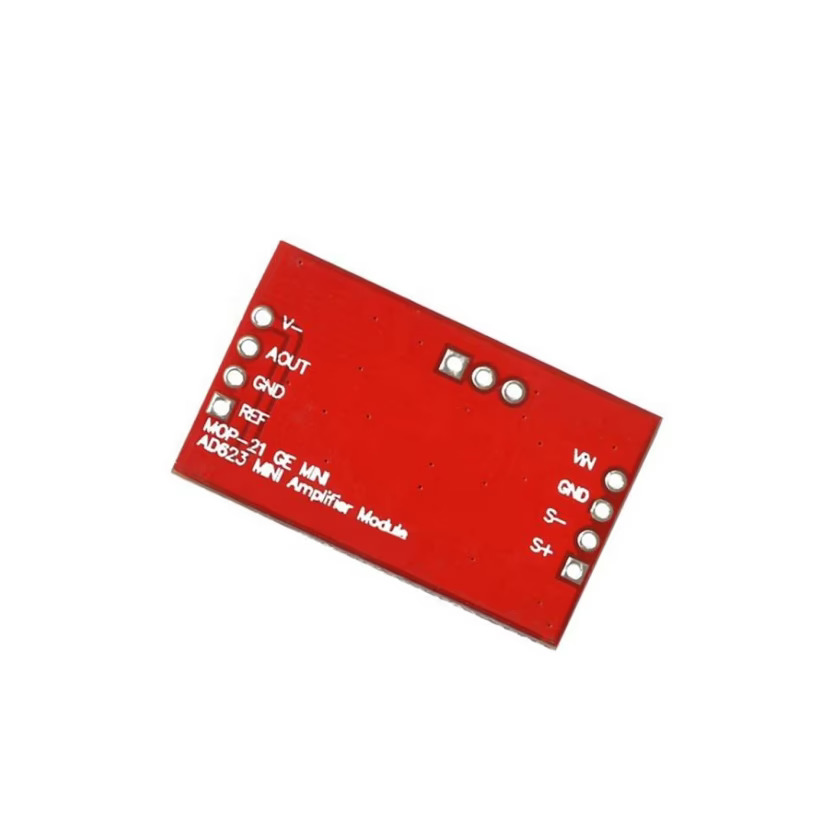

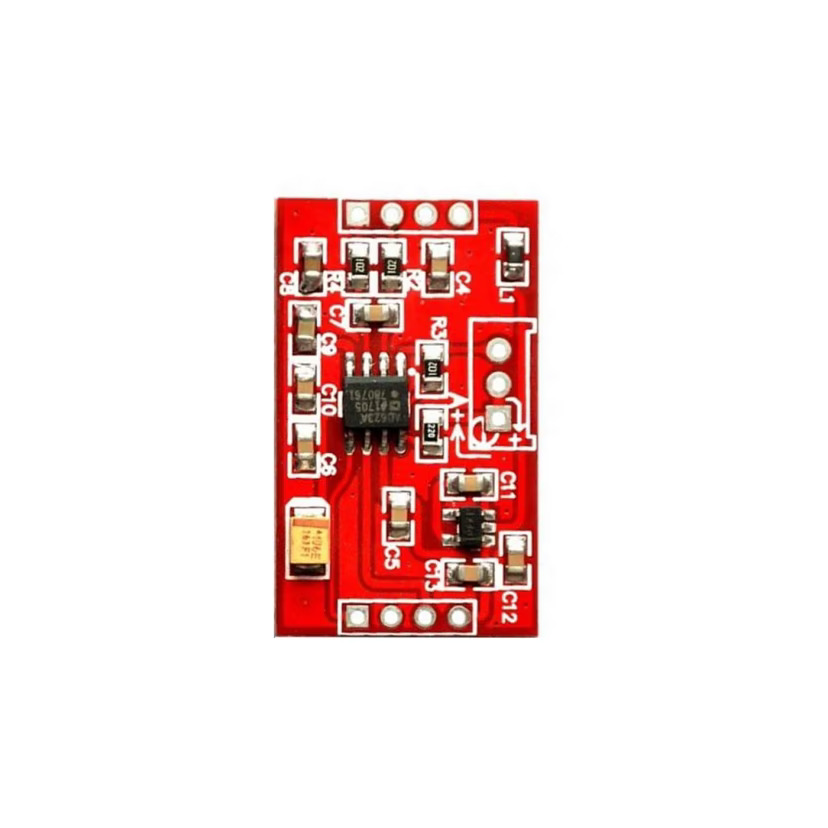

AD623/AD620 Instrumentation Amplifier Module (Microvolt Signal Amplifier Board)

The AD623/AD620 Instrumentation Amplifier Module is a precision signal conditioning board designed to amplify very small differential voltages from sensors and transducers. Based on the AD623 or AD620 instrumentation amplifier, the module provides high input impedance, low noise performance, excellent common-mode rejection, and adjustable gain using an external resistor. It is ideal for amplifying microvolt-level signals from strain gauges, load cells, biomedical sensors, thermocouples, and other precision analog sources before analog-to-digital conversion.

Key Features -

• Based on the AD623 or AD620 instrumentation amplifier IC

• Amplifies microvolt and millivolt differential signals

• High input impedance minimizes sensor loading

• Low noise design for accurate signal amplification

• Adjustable gain using an external resistor

• High common-mode rejection for improved measurement accuracy

• Suitable for precision sensor signal conditioning

• Compact breakout module for easy integration

• Compatible with Arduino, ESP32, STM32, PIC, AVR, and other microcontrollers

• Ideal for instrumentation, biomedical, and industrial applications

Specifications -

• Product type - Instrumentation Amplifier Module

• Main IC / Chipset - AD623 or AD620

• Operating voltage - 3.3V to 12V DC (Typical)

• Gain range - Adjustable via External Resistor

• Input type - Differential Analog Input

• Bandwidth - Suitable for Low-Frequency Signals

• Noise performance - Low Noise Design

• Package / Mounting type - Compact PCB Module

Applications -

• Load cell and weighing systems

• Strain gauge signal amplification

• Biomedical signal acquisition (ECG, EMG, etc.)

• Thermocouple and bridge sensor interfacing

• Industrial instrumentation and measurement

• Precision data acquisition systems

• Arduino and embedded analog signal conditioning

• Laboratory testing and sensor evaluation
