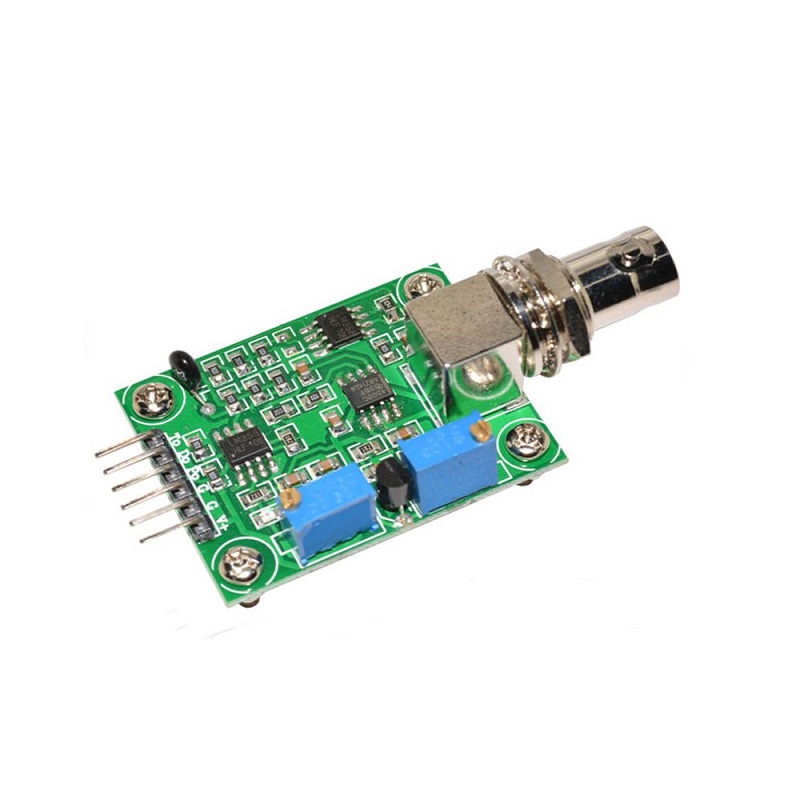

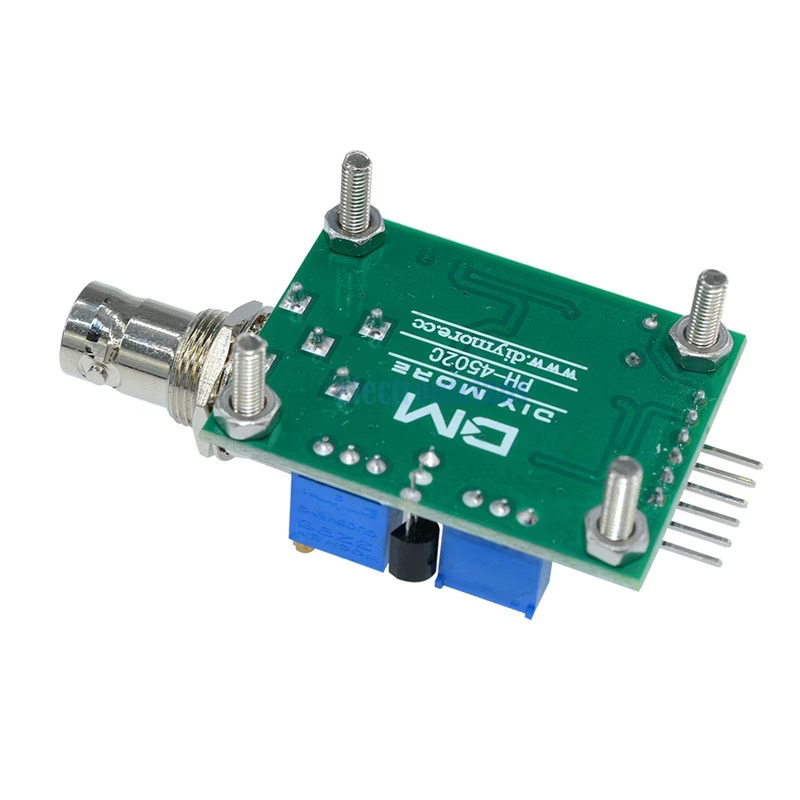

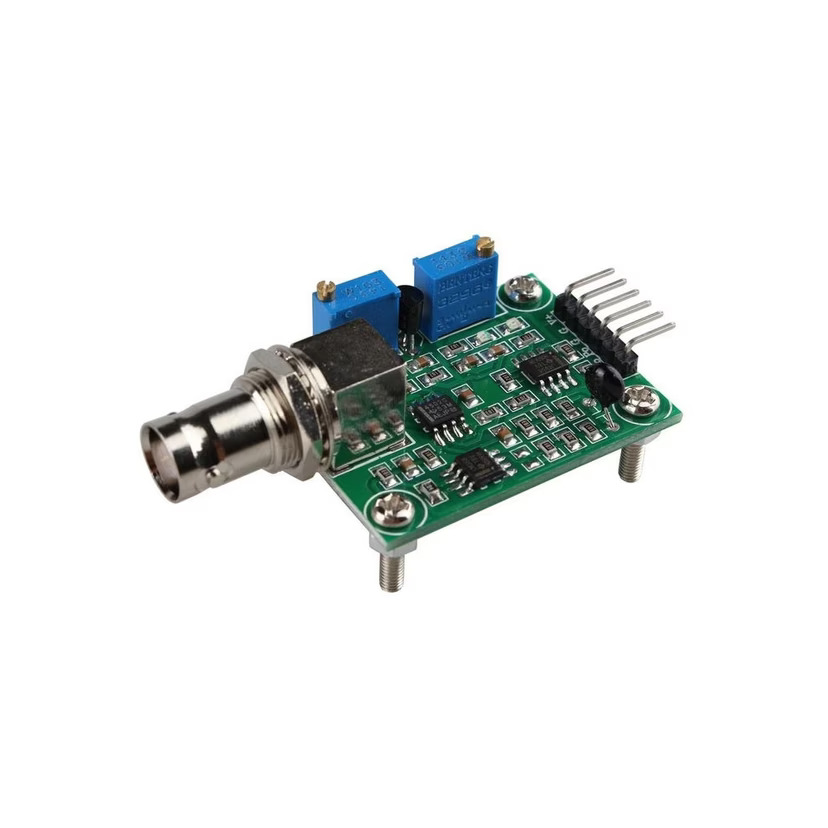

Liquid pH Value Detection Sensor Module V1.1 for Arduino (Analog pH Sensor Interface Module)

The Liquid pH Value Detection Sensor Module V1.1 is an analog pH signal conditioning module designed to interface with external pH electrodes for measuring the acidity or alkalinity of liquid solutions. The module converts the high-impedance signal from a compatible pH probe into an analog voltage that can be easily read by microcontrollers. Designed for Arduino, ESP32, STM32, and Raspberry Pi (with an external ADC), it is ideal for water quality monitoring, hydroponics, aquaculture, laboratory experiments, and environmental sensing applications.

Note: This product includes the pH sensor interface module only. pH probe/electrode is not included.

Key Features -

• Supports pH measurement from 0 to 14 with a compatible pH probe

• Analog voltage output for easy microcontroller interfacing

• Adjustable calibration using onboard potentiometer

• High input impedance signal conditioning circuit

• Fast and stable analog signal output

• Compatible with Arduino, ESP32, STM32, and Raspberry Pi (with external ADC)

• BNC connector for standard pH electrodes

• Suitable for continuous liquid pH monitoring

• Compact PCB design for embedded and IoT applications

Specifications -

• Product Type: Liquid pH Detection Sensor Interface Module

• Model: V1.1

• Measurement Range: pH 0 to 14 (With Compatible pH Probe)

• Output Type: Analog Voltage

• Operating Voltage: 5V DC (Typical)

• Probe Interface: BNC Connector

• Calibration: Adjustable via Onboard Potentiometer

• Signal Conditioning: High Input Impedance Amplifier

• Response Time: Depends on Connected pH Probe

• Mounting Type: PCB Module

Applications -

• Water quality monitoring systems

• Hydroponics and aquaponics projects

• Aquarium pH monitoring

• Environmental water analysis

• Laboratory and educational experiments

• Industrial liquid monitoring systems

• Chemical process monitoring

• Arduino and IoT pH sensing projects
