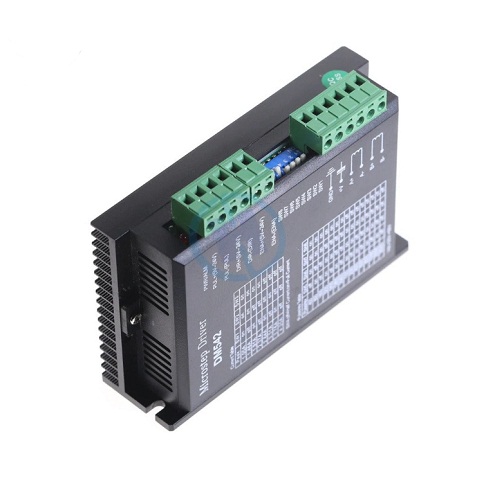

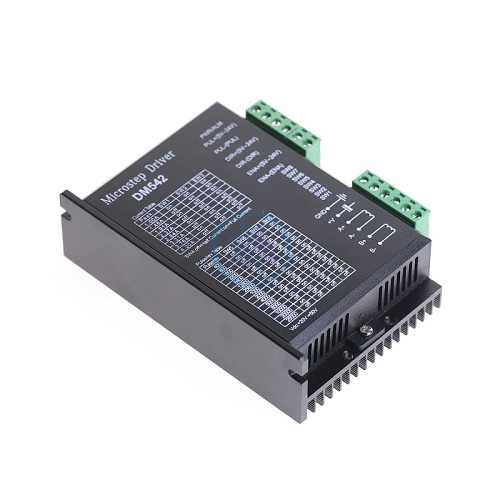

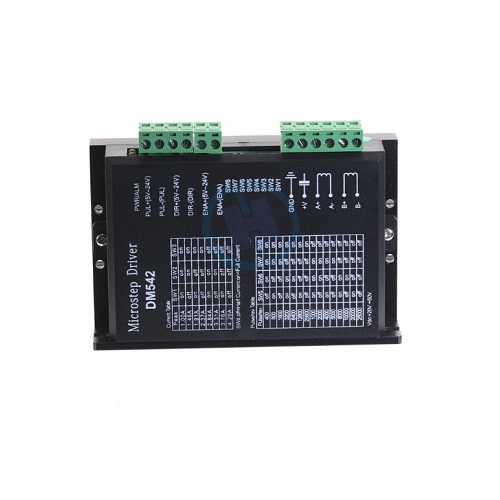

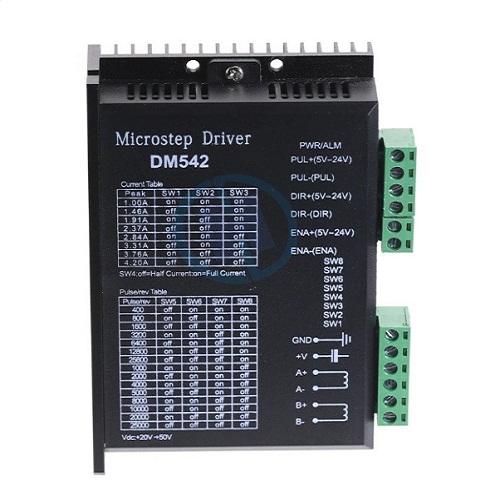

DM542 Digital Stepper Motor Driver – 2-Phase 24V–60V DC 4.5A

The DM542 Digital Stepper Motor Driver is a high-performance microstepping driver designed for controlling 2-phase stepper motors in CNC machines, 3D printers, laser engravers, robotics, automation systems, and industrial motion control applications. Featuring advanced digital control technology, pure sinusoidal current output, and selectable microstepping resolutions up to 25,600 steps per revolution, it delivers smooth, precise, and efficient motor operation for NEMA 17, NEMA 23, and similar stepper motors.

Key Features -

• Digital microstepping stepper motor driver

• Compatible with 2-phase stepper motors

• Supports NEMA 17, NEMA 23, and similar motors

• Supply voltage range of 24V to 60V DC

• Maximum output current of 4.5A

• Pure sinusoidal current control technology

• High-speed performance with low motor vibration

• Automatic idle-current reduction for reduced heating

• Self-adjustment and advanced current control technology

• Optically isolated TTL-compatible control inputs

• Multiple microstepping resolutions up to 25,600 steps/revolution

• Comprehensive protection features for reliable operation

Specifications -

• Product Type - Digital Stepper Motor Driver

• Model - DM542

• Motor Type Supported - 2-Phase Stepper Motors

• Supply Voltage - DC 24V to 60V

• Maximum Output Current - 4.5A

• Adjustable Output Current - 1.5A to 4.5A

• Logic Input Current - 10mA to 20mA

• Input Signal Type - TTL Compatible, Optically Isolated

• Operating Temperature Range - -15°C to +45°C

• Driver Dimensions - 117mm × 85mm (Approx.)

• Current Setting Method - DIP Switch

• Current Settings - 8 Selectable Levels

• Microstep Resolutions - 15 Selectable Settings

• Maximum Resolution - 25,600 Steps/Rev

• Control Modes - PUL/DIR and CW/CCW

Protection Features -

• Short-Circuit Protection

• Over-Voltage Protection

• Over-Current Protection

• Automatic Idle Current Reduction

• Thermal Stability Enhancement

Applications -

• CNC machines

• Laser engraving machines

• 3D printers

• Robotics systems

• Industrial automation equipment

• Pick-and-place machines

• XY positioning systems

• Packaging machinery

• Motion control projects
