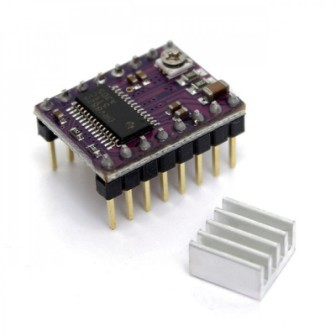

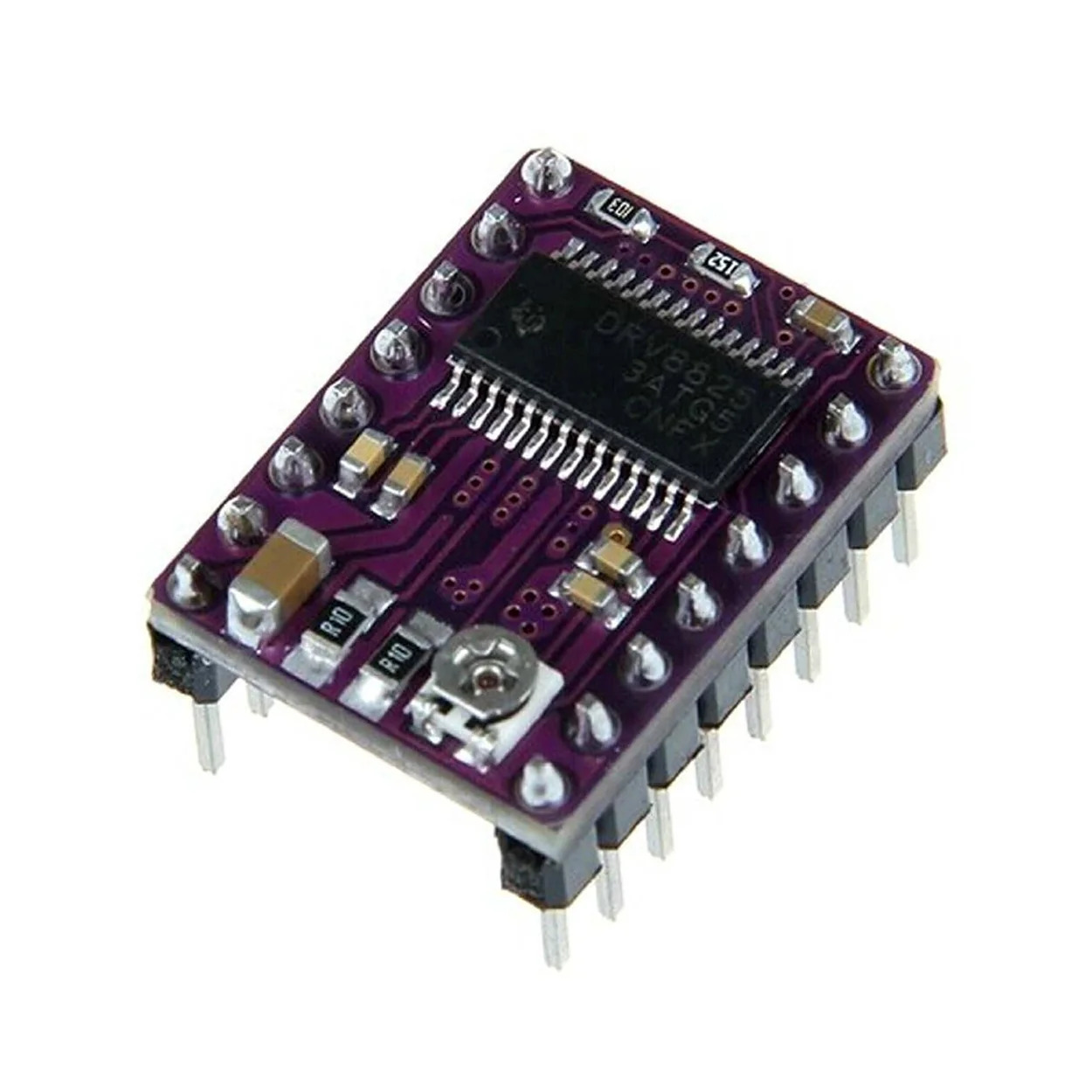

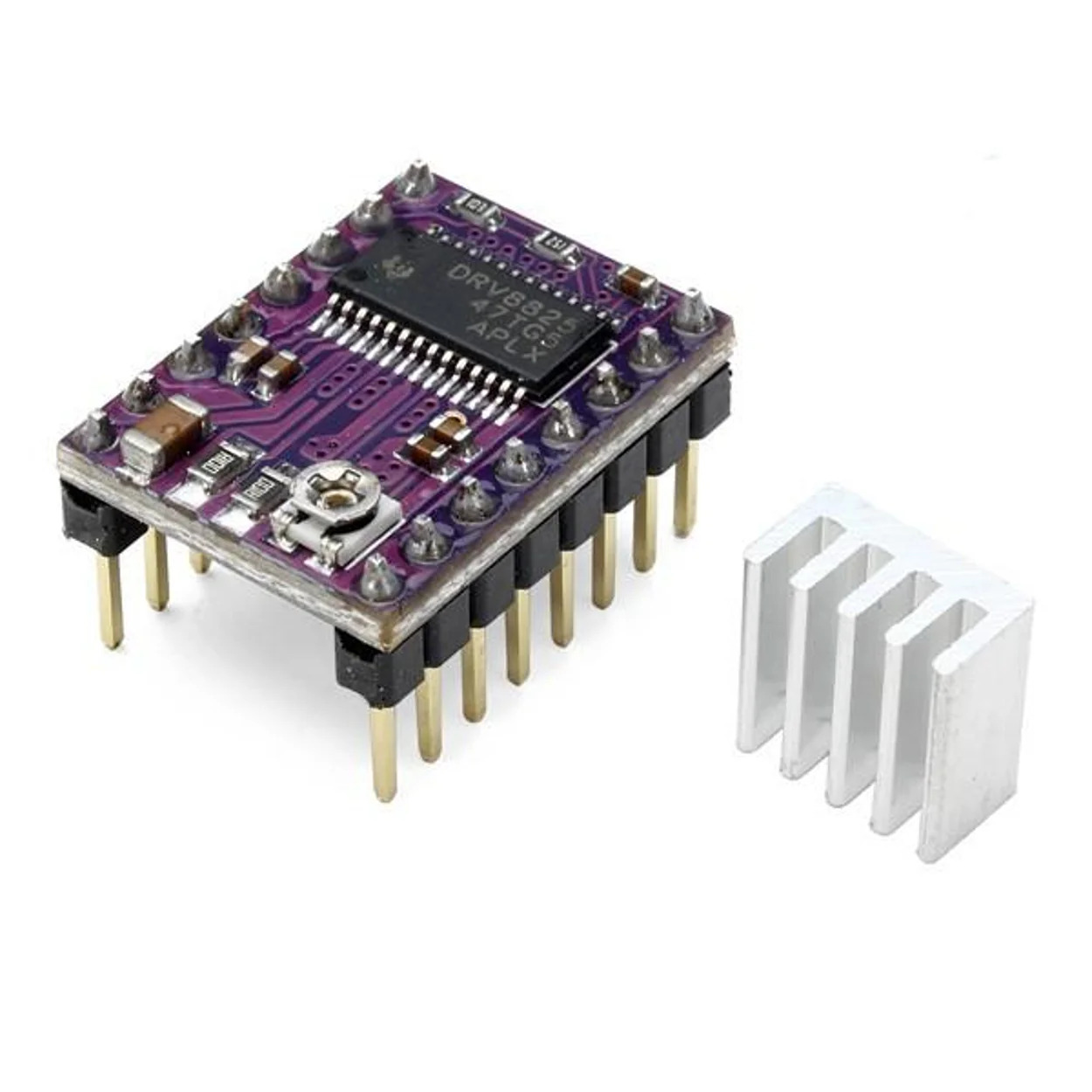

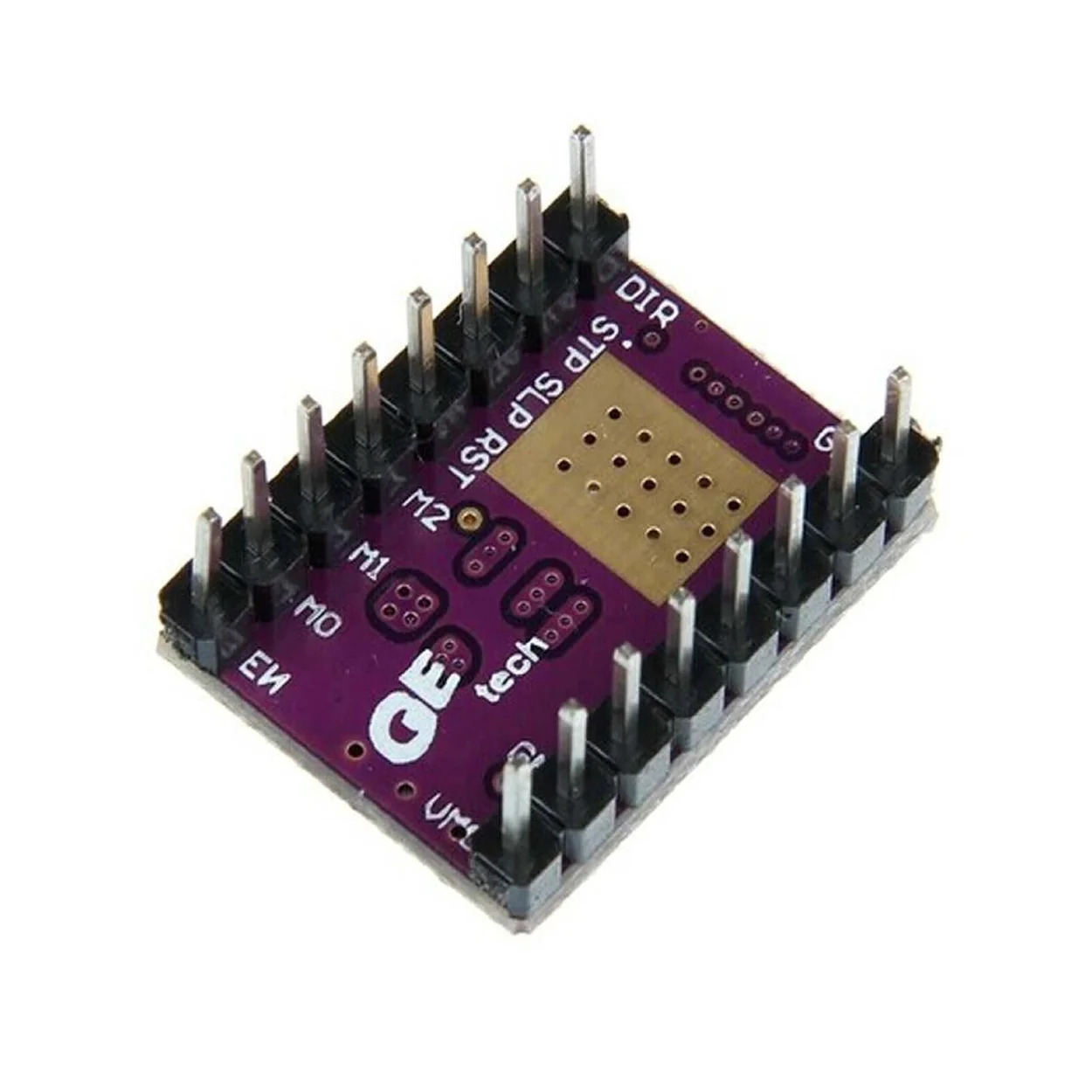

DRV8825 Stepper Motor Driver Module (Microstepping Driver Board)

The DRV8825 Stepper Motor Driver Module is a high-performance microstepping driver designed to control bipolar stepper motors with smooth and precise motion. Based on the DRV8825 driver IC, it features adjustable current limiting, support for up to 1/32 microstepping, and built-in protection against over-temperature, over-current, and under-voltage conditions. The module is compatible with Arduino, ESP32, STM32, RAMPS, CNC controllers, and 3D printer control boards.

Key Features -

• Drives bipolar stepper motors

• Supports up to 1/32 microstepping

• Adjustable motor current limit

• Wide motor supply voltage range

• Over-temperature protection

• Over-current protection

• Under-voltage lockout

• Adjustable decay mode

• Standard stepper driver pinout

• Compatible with RAMPS and CNC controller boards

Specifications -

• Product type - Stepper Motor Driver Module

• Driver IC - DRV8825

• Motor supply voltage - 8V to 45V DC

• Logic voltage - 3.3V to 5V

• Output current - Up to 2A per Phase (With Proper Cooling)

• Motor type - Bipolar Stepper Motor

• Microstepping modes - Full, 1/2, 1/4, 1/8, 1/16 and 1/32 Step

• Decay mode - Adjustable

• Protection features - Over-Temperature, Over-Current and Under-Voltage Lockout

• Board type - Stepper Motor Driver Module

Applications -

• 3D printers

• CNC machines

• Laser engraving machines

• Robotics

• Automation systems

• Camera sliders

• Arduino and STM32 projects

• Motion control systems
