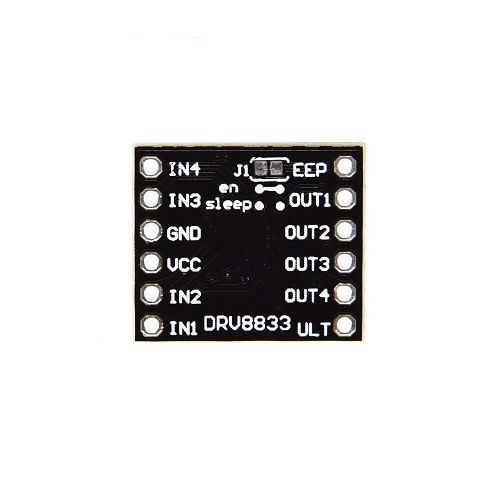

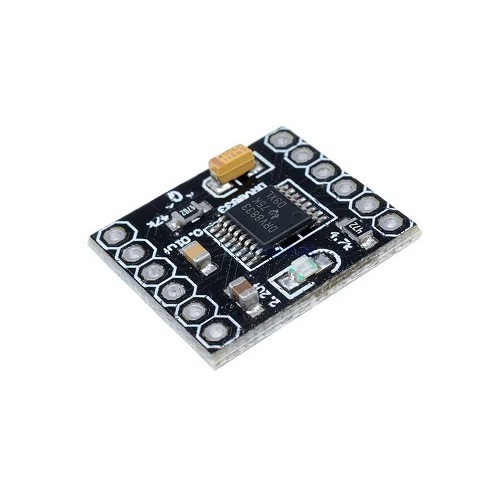

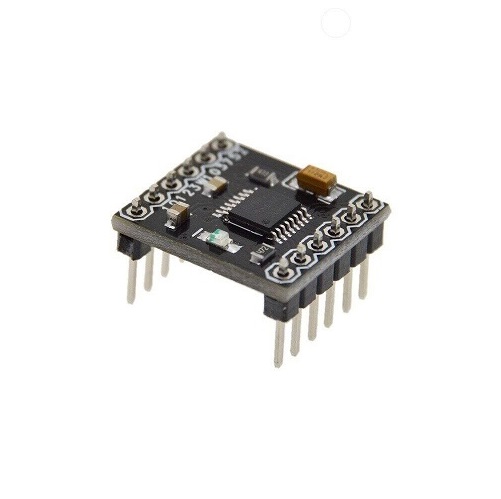

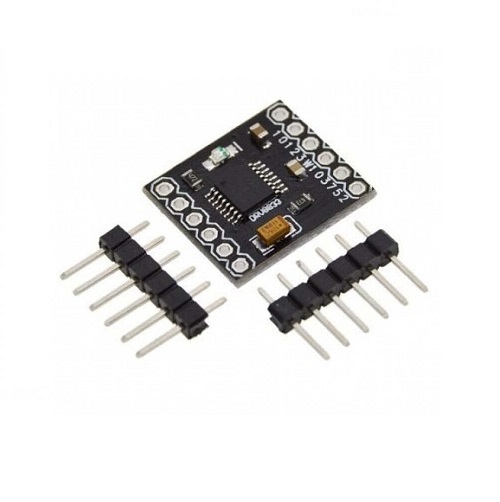

DRV8833 2-Channel DC Motor Driver Module (Dual H-Bridge Motor Controller)

The DRV8833 2-Channel DC Motor Driver Module is a compact dual H-bridge motor controller designed to control the speed and direction of two DC motors or one bipolar stepper motor. It supports PWM based speed control and bidirectional motor operation for precise motion control.

The module operates with a low motor supply voltage and includes built-in protection features for reliable operation. It is suitable for Arduino, Raspberry Pi, robotics, automation, mobile robots, and other embedded motor control applications.

KEY FEATURES -

• Dual H-bridge motor driver

• Controls two DC motors independently

• Can control one bipolar stepper motor

• PWM speed control support

• Bidirectional motor control

• Low voltage motor operation

• Overcurrent protection

• Thermal shutdown protection

• Undervoltage protection

• Compact PCB module design

SPECIFICATIONS -

• Motor Supply Voltage = 2.7-10.8V DC

• Output Current = 1.5A continuous per channel, 2A peak

• Motor Channels = 2

• Logic Voltage = 2.5-5.5V

• PWM Frequency = Up to 250kHz

• Driver Type = Dual H-bridge

• Operating Temperature = -40 to 85 C

• Module Size = Approx. 32 x 20mm

APPLICATIONS -

• Arduino robotics projects

• Raspberry Pi motor control

• Mobile robots

• DC motor control systems

• Robot cars

• Small automation systems

• Conveyor and actuator projects

• Stepper motor applications

• DIY motorized devices
