DWM1001-DEV Multiprotocol Development Tools DWM1001C UWB XCVR Module FCC Certified Ultra Wideband Development Board (DWM1001-DEV Module)

The DWM1001-DEV is a plug and play development board from Qorvo designed for evaluating the DWM1001C Ultra Wideband transceiver module. It combines UWB and Bluetooth Low Energy technology to enable accurate indoor positioning and real time location system (RTLS) applications with positioning accuracy up to 10cm.

Key Features -

• Based on DWM1001C UWB transceiver module
• Supports Ultra Wideband and Bluetooth Low Energy
• IEEE 802.15.4-2011 UWB compliant
• FCC certified module design
• Positioning accuracy up to 10cm typical
• USB interface for programming and debugging
• Onboard J-Link debugger
• Supports anchor tag and gateway configurations
• Compatible with Raspberry Pi gateway applications
• External interfaces via SPI UART and BLE

Specifications -

• Product type - multiprotocol development board
• Model - DWM1001-DEV
• RF technology - Ultra Wideband UWB and Bluetooth LE
• Frequency - 2.4GHz BLE and 6.5GHz UWB
• UWB data rate - up to 6.8Mbps
• Microcontroller - Nordic nRF52832 ARM Cortex-M4
• Operating voltage - 3.6V to 5.5V
• Interfaces - SPI UART USB BLE
• Antenna - onboard PCB antenna
• Package certification - FCC compliant

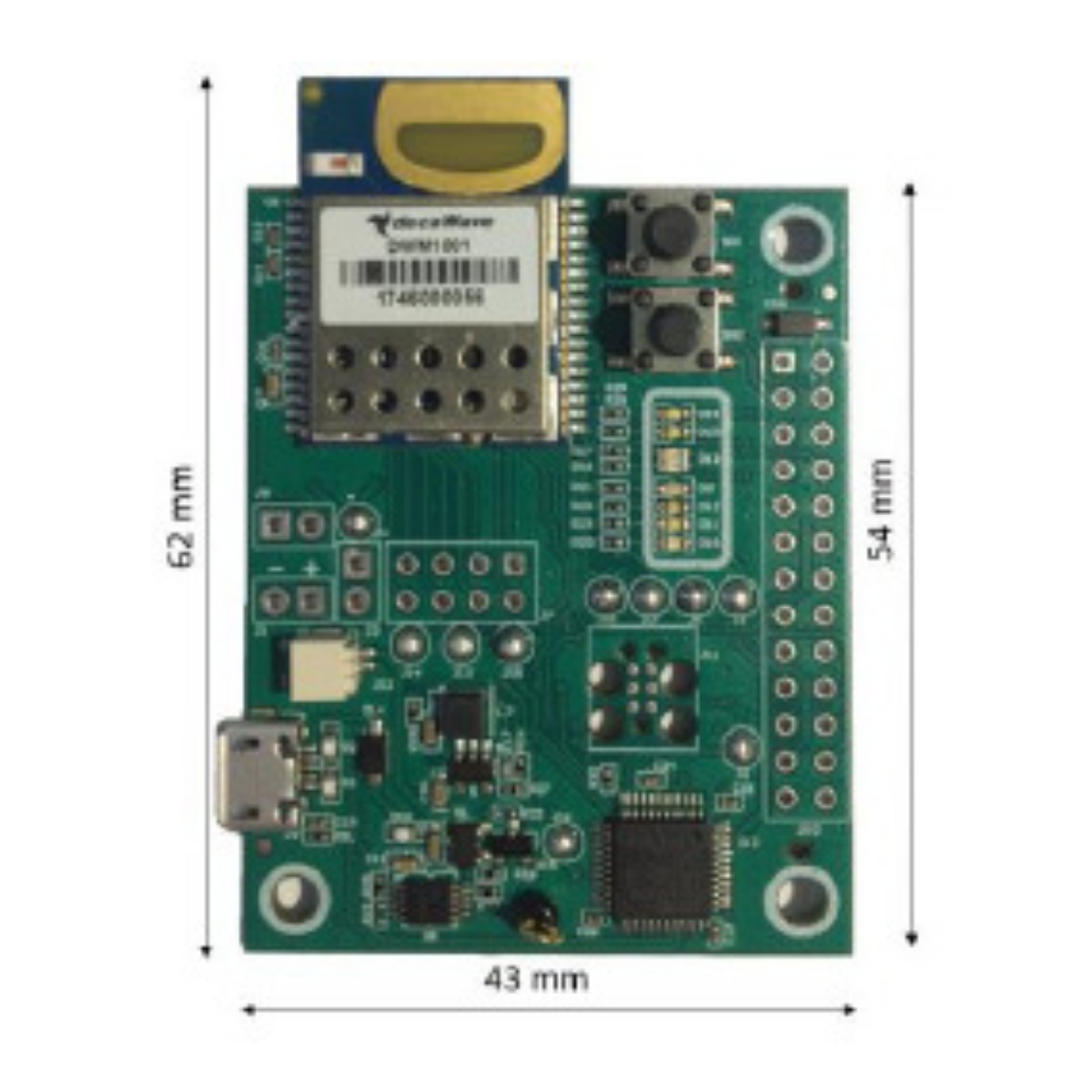

• Board dimensions - approx 62mm × 43mm

Applications -

• Indoor positioning systems
• Real time location systems RTLS
• Asset tracking systems
• Robotics and automation
• Smart factory and Industry 4.0
• Secure access and proximity systems
• IoT and wireless sensor networks

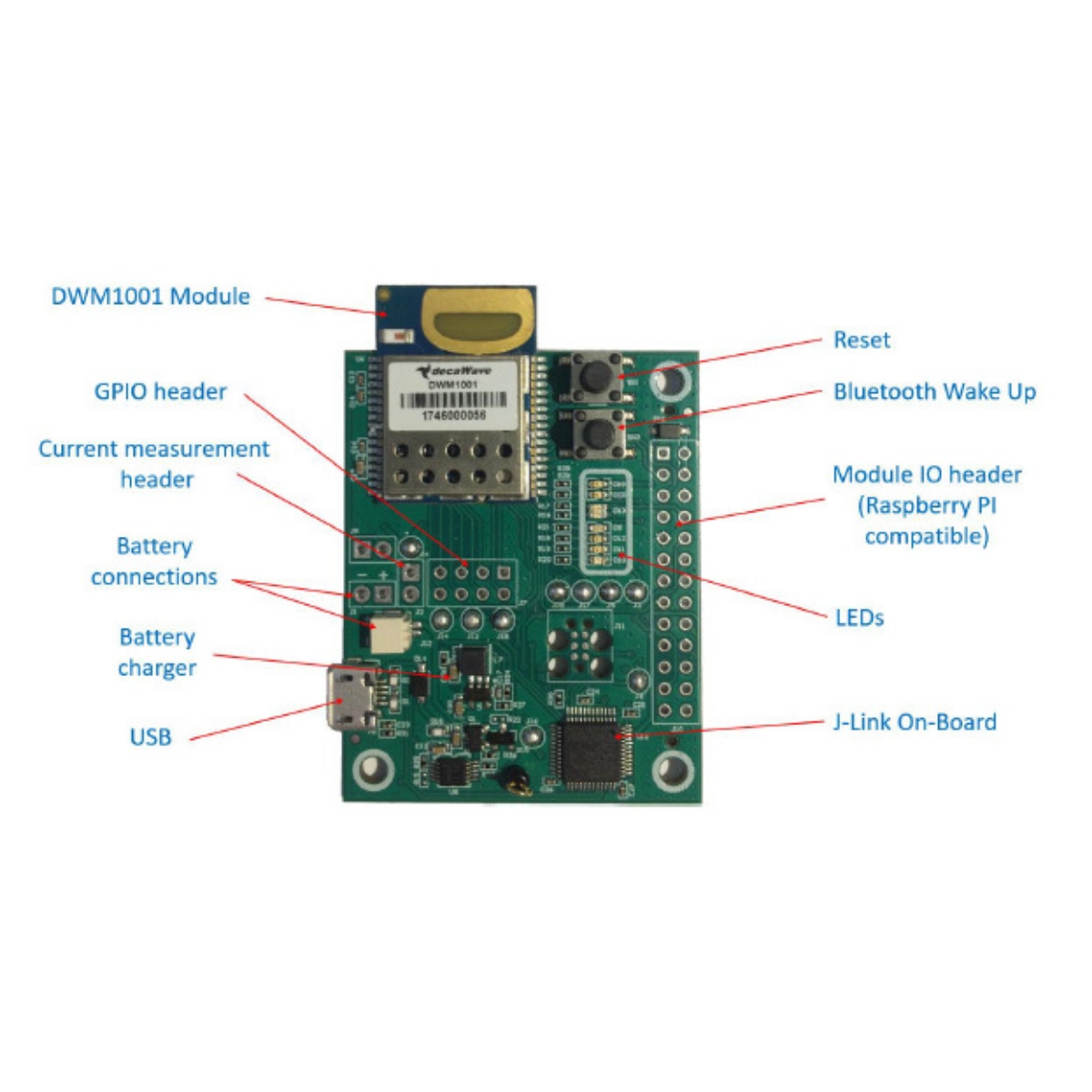

Pinout / Interfaces -

• USB programming and power interface
• SPI communication interface
• UART communication interface
• GPIO expansion pins
• Raspberry Pi compatible header
• BLE and UWB wireless interfaces
