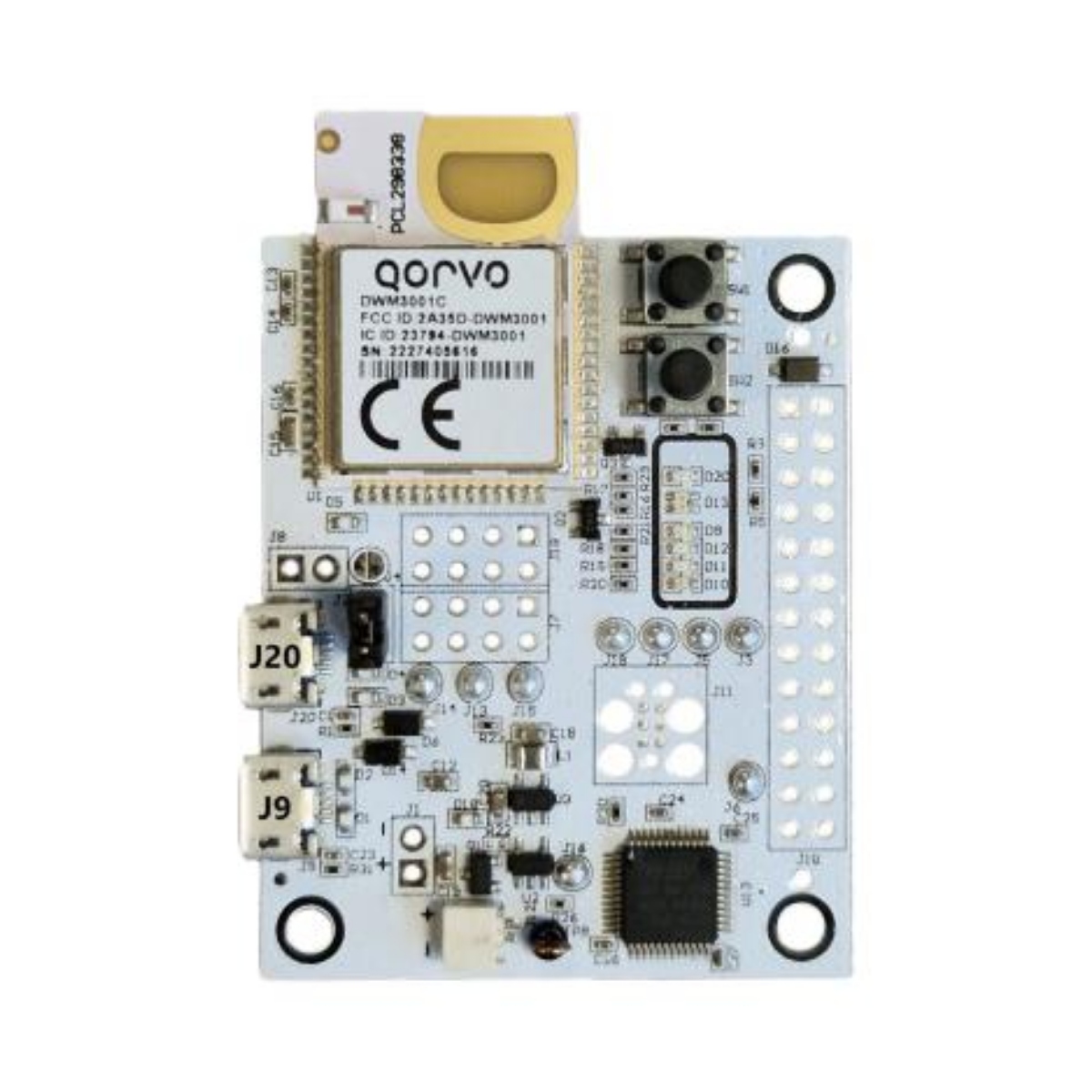

DWM3001CDK Qorvo Development Kit DW3110 Ultra Wideband Transceiver Development Board UWB Module DWM3001C (DWM3001CDK Kit)
The DWM3001CDK is an ultra wideband development kit designed for evaluating and developing applications using the DWM3001C UWB module based on the DW3110 transceiver IC. It enables precise ranging and positioning systems such as real time location systems and indoor navigation.
Key Features -
- Based on DW3110 ultra wideband transceiver IC
- Integrated DWM3001C UWB module with BLE SoC and antenna
- Supports two way ranging and TDoA positioning
- On board J Link debugger for programming and debugging
- Dual micro USB interface for communication and power
- Compatible with Raspberry Pi interface
- Designed using Qorvo UWB technology
Specifications -
- Module - DWM3001C UWB module
- UWB channels - channel 5 approx 6.5GHz and channel 9 approx 8GHz
- Data rate - approx 850kbps and 6.8Mbps
- Supply voltage - approx 2.5V to 3.6V
- Interfaces - UART SPI I2C USB SWD
- Debugging - on board J Link debugger
- Power options - USB battery or external supply
Applications -
- Real time location systems RTLS
- Indoor positioning and navigation
- Asset tracking systems
- Smart devices and IoT positioning
- Industrial automation and robotics
- Secure access and proximity detection
Pinout Configuration -
- USB port - power and communication interface
- SWD pins - programming and debugging
- GPIO pins - interface for external devices
- UART SPI I2C - communication interfaces
Working Principle -
The DWM3001CDK uses ultra wideband radio signals to measure time of flight between devices. By calculating the signal travel time it determines distance with high accuracy. Using multiple nodes it enables precise indoor positioning through ranging and localization algorithms such as two way ranging and time difference of arrival.
