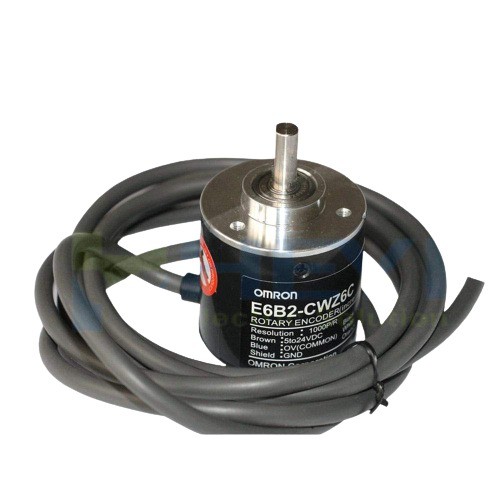

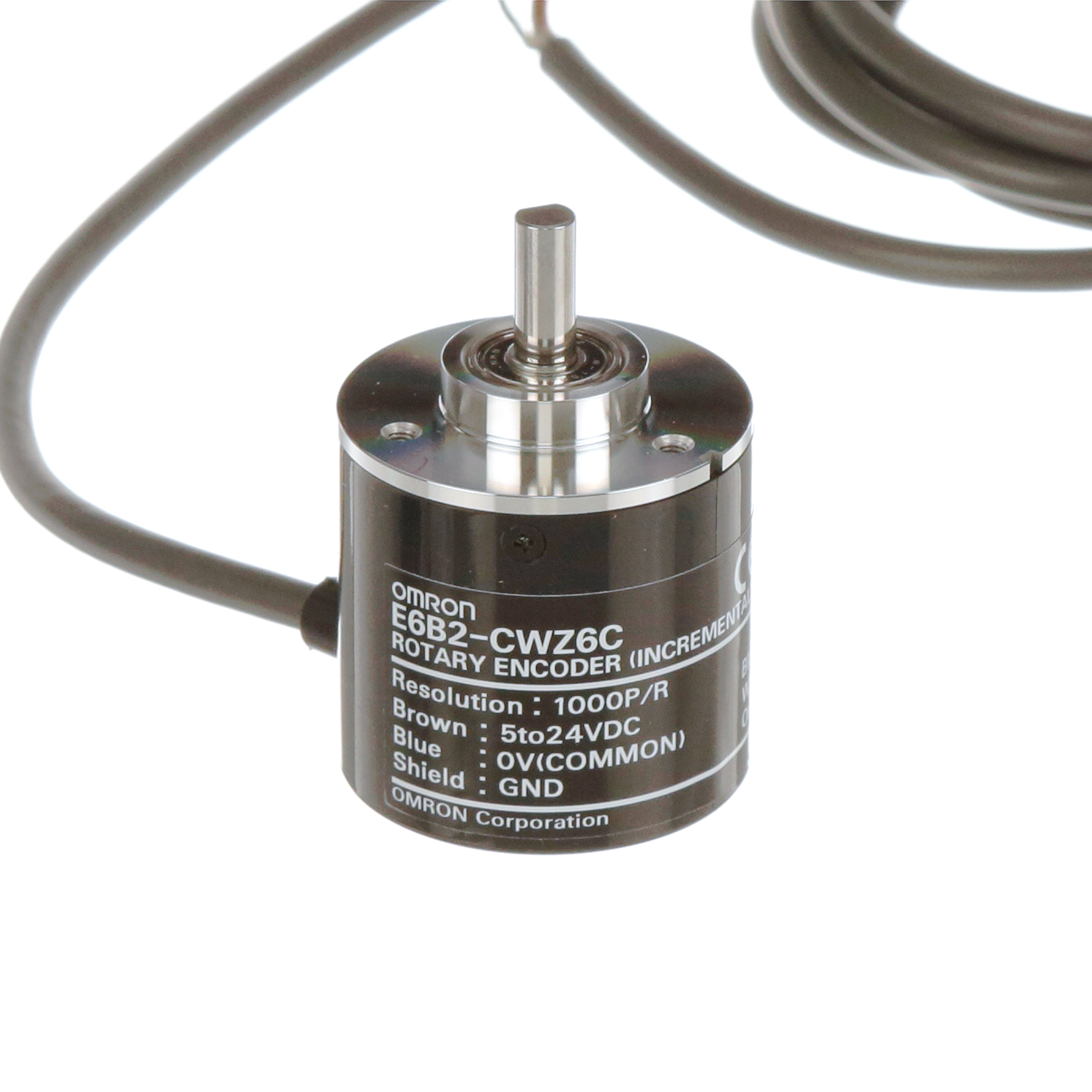

Omron E6B2-CWZ6C 1000P/R Incremental Rotary Encoder (ABZ Quadrature Output)

The Omron E6B2-CWZ6C 1000P/R Rotary Encoder is a high-precision incremental rotary encoder designed to provide accurate position, speed, and direction feedback in industrial motion control systems. With a resolution of 1000 pulses per revolution (P/R) and ABZ quadrature outputs, it delivers reliable feedback for precise motor control, positioning, and automation applications.

Featuring NPN open-collector outputs, a 6mm shaft, and support for 5V to 24V DC operation, this encoder is compatible with PLCs, servo drives, stepper motor controllers, CNC machines, robotics, and industrial control systems. Its robust construction ensures dependable performance in demanding industrial environments.

Key Features -

• 1000 pulses per revolution (1000P/R) resolution

• ABZ quadrature output signals

• NPN open-collector outputs

• High-accuracy position and speed detection

• Stable and reliable signal output

• Supports direction and index pulse detection

• Durable industrial-grade construction

• Wide operating voltage range

• Easy shaft mounting installation

• Suitable for industrial automation and motion control

Specifications -

• Product type - Incremental Rotary Encoder

• Model - E6B2-CWZ6C

• Brand - Omron

• Encoder type - Incremental Rotary Encoder

• Resolution - 1000 Pulses per Revolution (1000P/R)

• Output type - NPN Open Collector ABZ Quadrature Output

• Supply voltage - 5V to 24V DC

• Shaft diameter - 6mm

• Maximum rotational speed - Up to 6000RPM

• Protection rating - IP50

• Operating temperature - -10C to +70C

• Mounting type - Shaft Mount

Applications -

• CNC machines

• Servo motor feedback

• Stepper motor positioning

• Industrial automation systems

• Conveyor control systems

• Robotics and automation

• Packaging machinery

• Printing equipment

• PLC motion control systems

• Industrial measurement equipment
