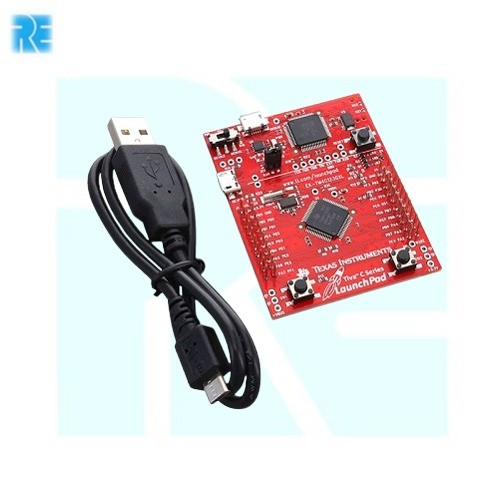

EK-TM4C123GXL ARM TIVA LaunchPAD Development Board

The EK-TM4C123GXL TIVA LaunchPAD Development Board is a microcontroller development platform designed for applications based on the TM4C123GH6PM microcontroller. It features an ARM Cortex M4F core with floating point unit which provides high performance processing for embedded control, robotics and industrial applications.

This development board includes an onboard debugger and programmer which allows easy programming and debugging through USB. It also provides multiple GPIO pins and expansion headers for connecting sensors, modules and peripherals used in embedded system development and prototyping.

Key Features

• Based on TM4C123GH6PM ARM Cortex M4F microcontroller
• Onboard debugger and programmer
• High performance 32bit microcontroller architecture
• Multiple GPIO pins for peripheral connection
• USB interface for programming and power
• Suitable for embedded systems and control applications
• Expansion headers for sensors and modules

Specifications

• Microcontroller = TM4C123GH6PM
• Core Architecture = ARM Cortex M4F
• Data Width = 32bit
• Flash Memory = 256KB
• SRAM = 32KB
• Operating Voltage = 3.3V
• Development Board Type = TIVA LaunchPAD
• Programming Interface = USB debug interface

Interfaces

• USB Connector = Power programming and debugging
• GPIO Headers = Digital input output connections
• UART Interface = Serial communication
• I2C Interface = Sensor communication
• SPI Interface = Peripheral communication
• ADC Pins = Analog signal input
