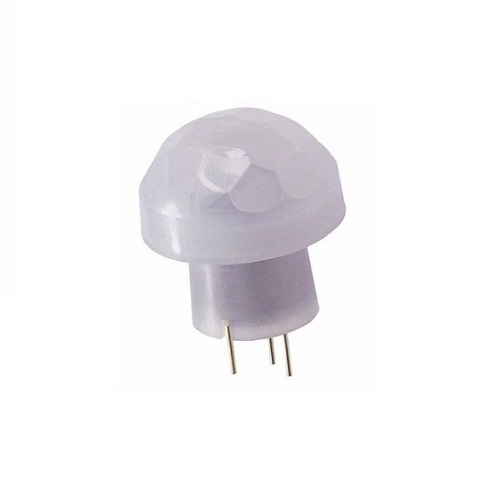

EKMC1604113 PIR Sensor Saturn Lens Pearl 17m (Wall Installation Passive Infrared Motion Sensor Pearl White)

The EKMC1604113 PIR Sensor is a high-sensitivity Passive Infrared (PIR) motion sensor designed for reliable human presence and motion detection in security, lighting control, automation, and energy-saving applications. Featuring a Saturn lens with a 17-meter detection distance, 105° horizontal detection angle, 40° vertical detection angle, and ultra-low power consumption of 170µA, it is ideal for battery-powered and low-power embedded systems.

Key Features -

• Passive Infrared (PIR) motion sensor

• Maximum detection distance of 17m

• Suitable for wall installation

• Saturn lens design

• 105° horizontal detection angle

• 40° vertical detection angle

• 68 detection zones for accurate motion sensing

• Standard detection sensitivity

• Wide operating voltage from 3V to 6V

• Ultra-low current consumption of 170µA

• Pearl white lens finish

• Ideal for low-power motion detection applications

Specifications -

• Product Type - Passive Infrared Motion Sensor

• Model - EKMC1604113

• Sensor Technology - Passive Infrared (PIR)

• Maximum Sensing Range - 12m

• Maximum Detection Distance - 17m

• Supply Voltage - 3V to 6V DC

• Current Consumption - 170µA

• Beam Angle - 30°

• Horizontal Detection Area - 105°

• Vertical Detection Area - 40°

• Number of Detection Zones - 68

• Detection Sensitivity - Standard

• Lens Type - Wall Installation Saturn Lens

• Lens Colour - Pearl White

• Mounting Type - Wall Installation

Applications -

• Motion-activated lighting

• Security alarm systems

• Smart home automation

• Occupancy detection

• Energy-saving lighting control

• Automatic doors

• Building automation

• Industrial automation

• Battery-powered sensing devices

• Embedded electronic projects
