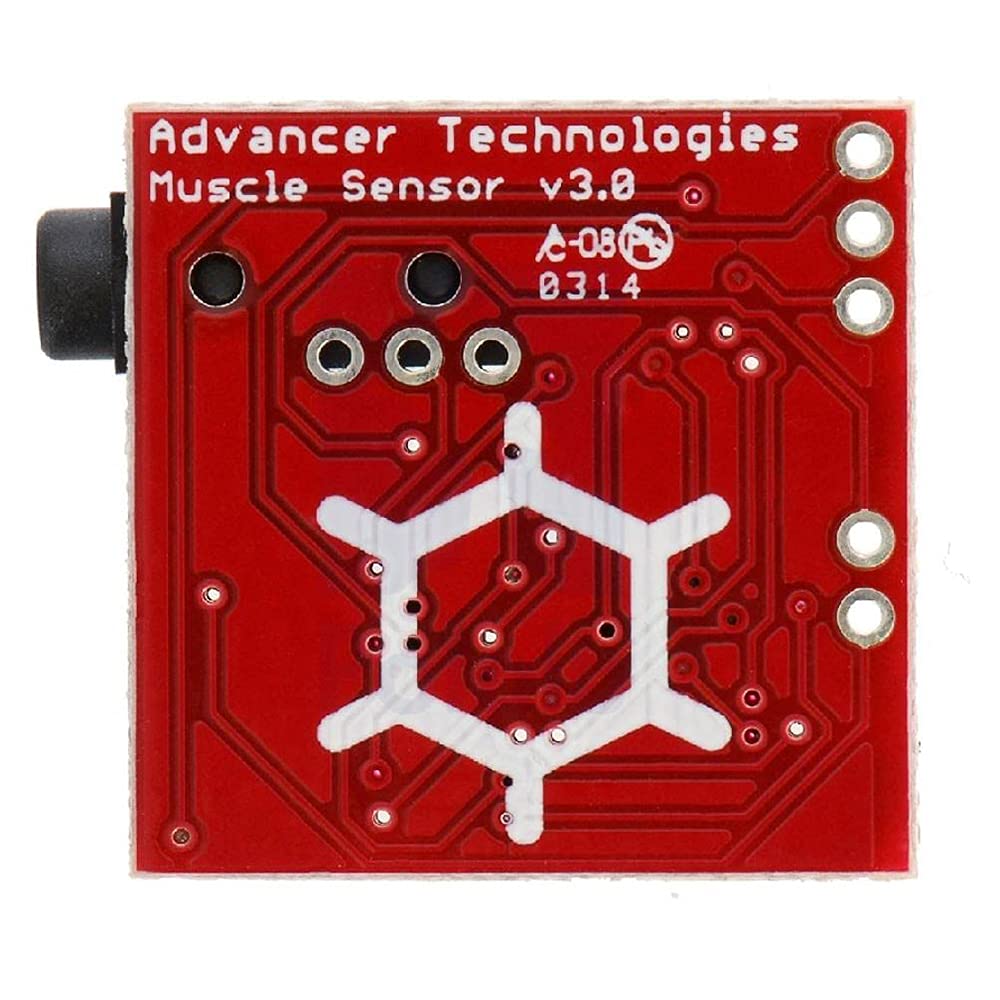

EMG Muscle Sensor V3.0 With Cable And Electrodes

The EMG Muscle Sensor V3.0 is a bio signal acquisition module designed to detect and amplify electrical activity generated by skeletal muscles. It captures electromyography signals through surface electrodes and converts them into an analog voltage output suitable for microcontroller and data acquisition systems.

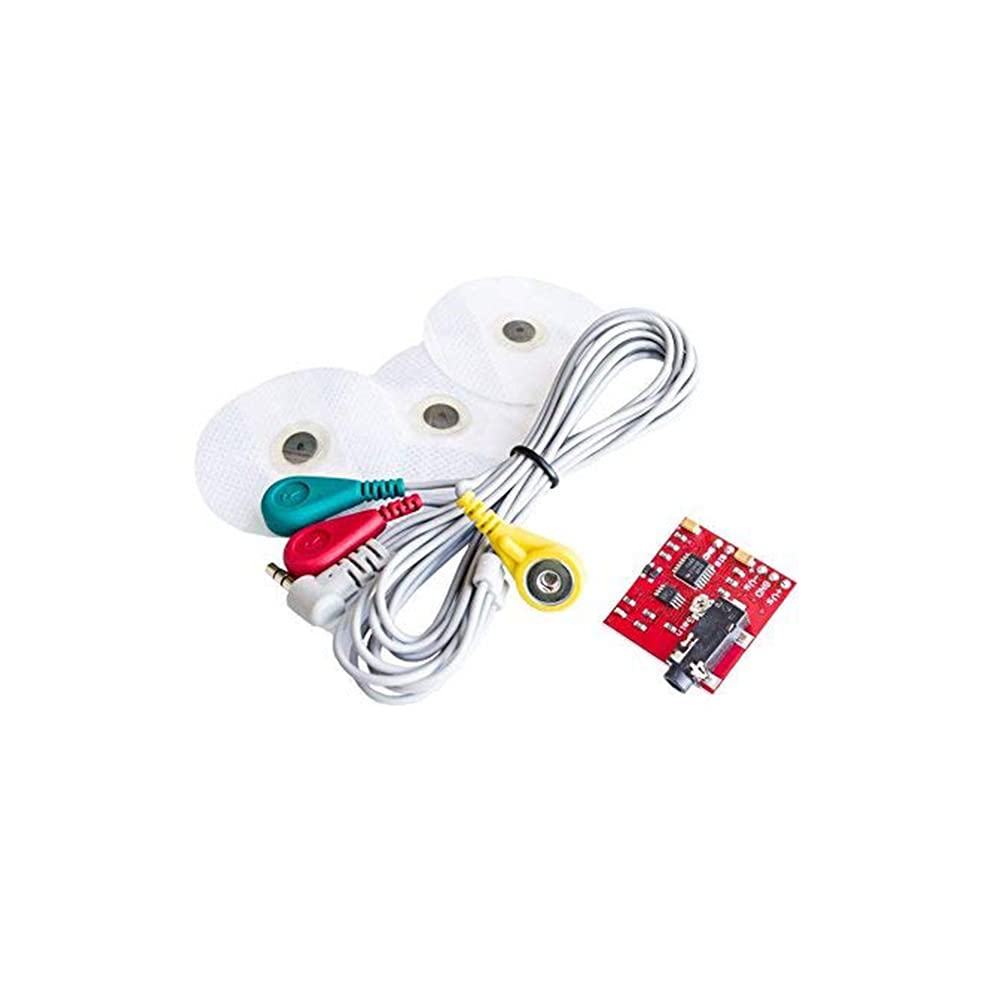

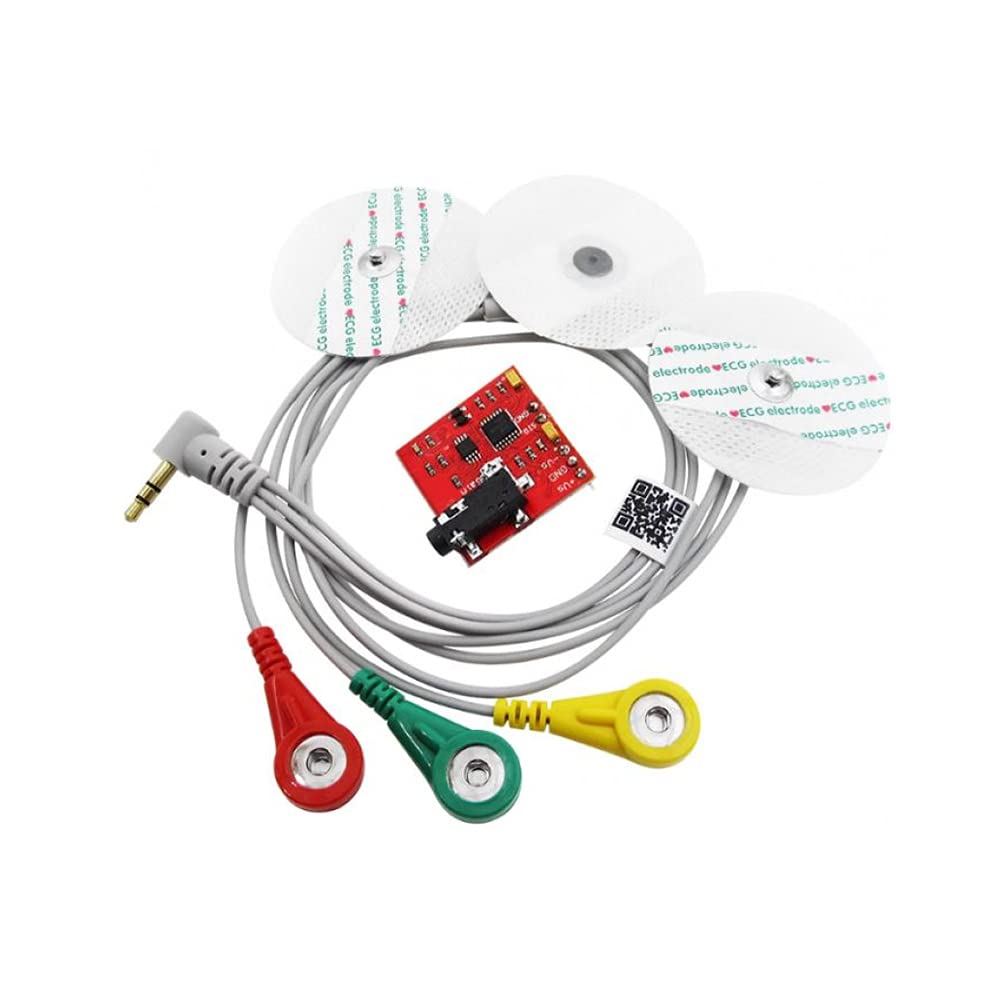

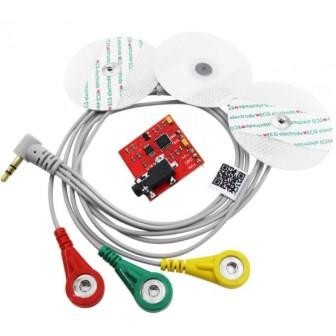

This module is ideal for robotics prosthetics human machine interface biomedical research and educational projects. It includes connection cable and disposable electrodes for direct use and provides stable signal amplification with onboard filtering for improved measurement accuracy.

KEY FEATURES

• Detects muscle electrical activity EMG signals
• Integrated signal amplification and filtering
• Analog output proportional to muscle activity
• Includes connection cable and electrodes
• Compact and lightweight module
• Suitable for biomedical and robotics projects
• Easy interface with microcontrollers

SPECIFICATIONS

• Sensor Type - Electromyography EMG
• Output Type - Analog voltage
• Operating Voltage - 3.3V to 5V DC
• Gain - Adjustable onboard
• Signal Bandwidth - Approx 20 Hz to 500 Hz
• Input Impedance - High impedance differential input
• Operating Temperature - 0 to +50 degree C
• Application - Muscle activity monitoring and control

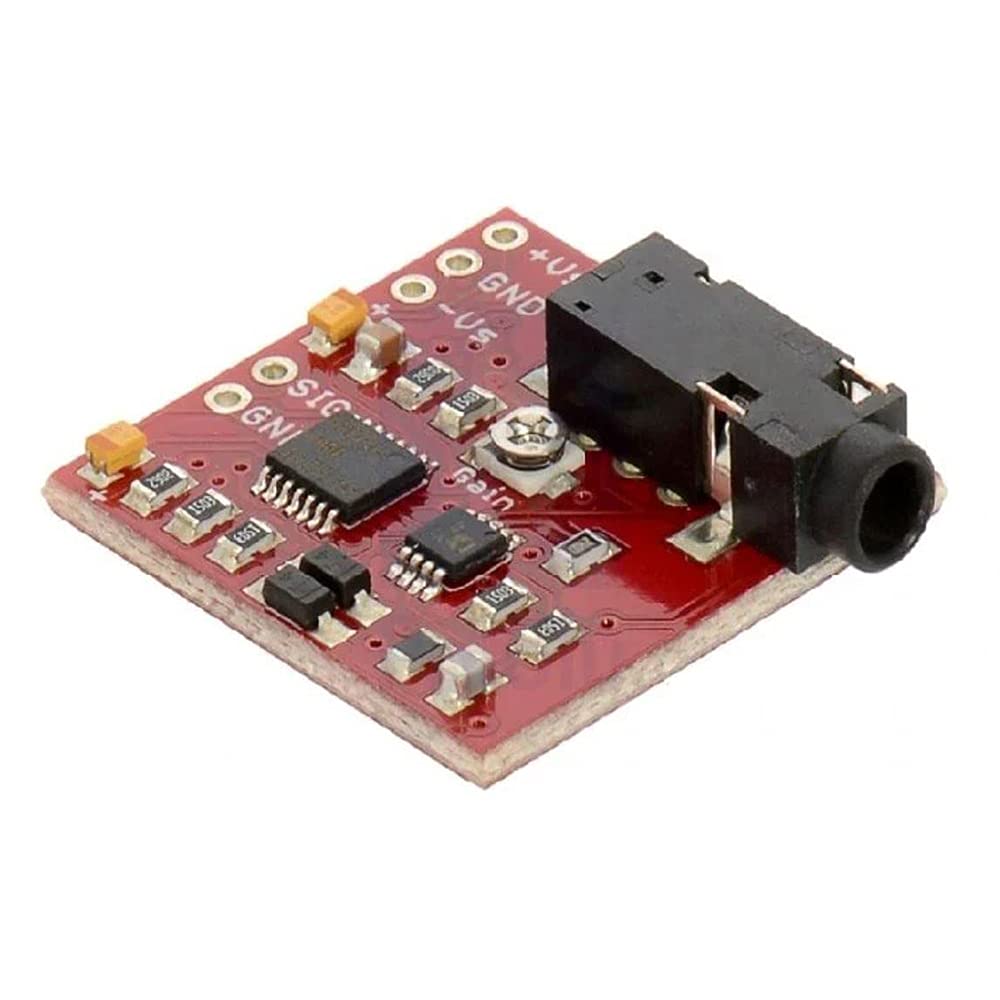

INTERFACES

• VCC - Power supply input
• GND - Ground connection
• SIG - Analog EMG signal output
• IN plus - Positive electrode input
• IN minus - Negative electrode input
• REF - Reference electrode connection
