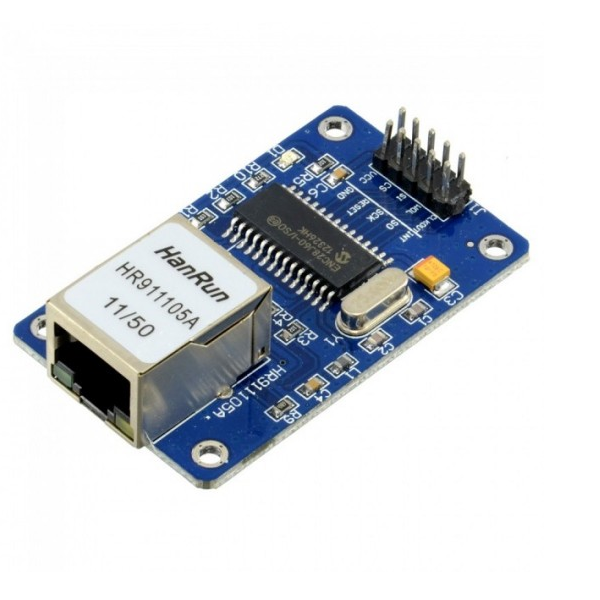

ENC28J60 Ethernet Module SSOP (SPI LAN Network Module)

The ENC28J60 Ethernet Module is a compact and cost-effective network interface module designed to add wired Ethernet connectivity to microcontroller-based systems. Based on the ENC28J60 standalone Ethernet controller with integrated MAC and PHY, it supports IEEE 802.3 10Base-T networks and communicates through the SPI interface. The module is ideal for Arduino, AVR, PIC, STM32, ESP32, and other embedded platforms used in IoT, web server, and industrial networking applications.

Key Features -

• Based on ENC28J60 Ethernet controller

• Supports IEEE 802.3 10Base-T Ethernet

• SPI interface for microcontroller communication

• Integrated MAC and PHY

• Onboard RJ45 connector with integrated magnetics

• Compact and reliable design

• Low power consumption

• Easy integration with embedded systems

• Suitable for IoT and networking projects

• Compatible with Arduino and other microcontrollers

Specifications -

• Product type - Ethernet Network Module

• Controller - ENC28J60

• Network standard - IEEE 802.3 10Base-T

• Communication interface - SPI

• Operating voltage - 3.3V DC

• SPI clock speed - Up to 20MHz

• Package type - SSOP

• Ethernet connector - RJ45 with Integrated Magnetics

• Operating temperature - Industrial Grade

• Board type - Ethernet Module

Applications -

• IoT devices

• Embedded web servers

• Industrial automation

• Data logging systems

• Network-enabled controllers

• Remote monitoring

• Arduino and STM32 projects

• Ethernet communication systems
