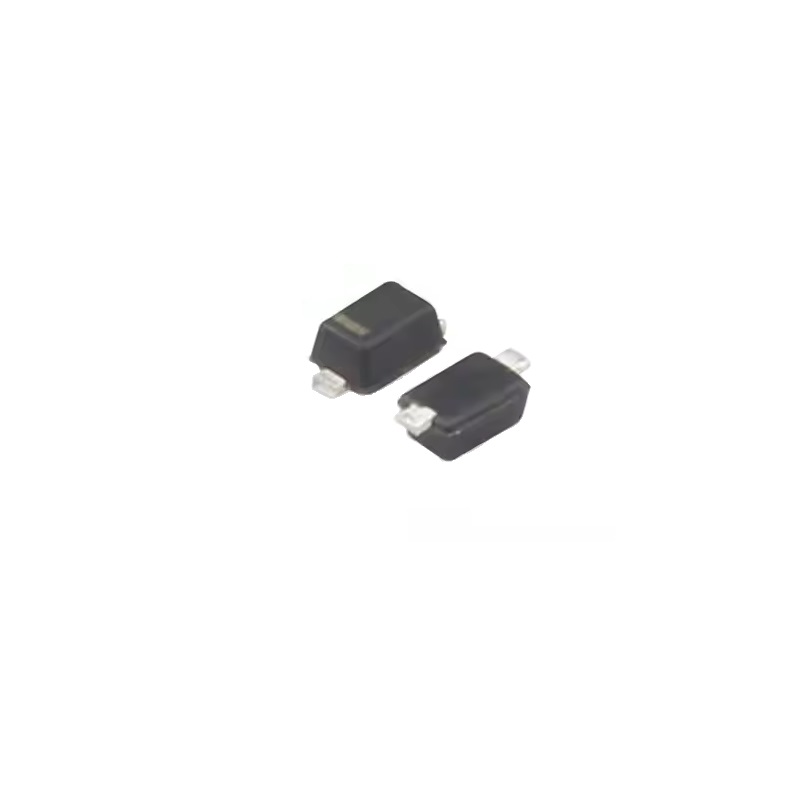

ESD9M5.0ST5G TVS Diode SOD-923 (5V ESD Protection Diode)

The ESD9M5.0ST5G is a unidirectional TVS (Transient Voltage Suppressor) diode specifically designed to protect sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage events. It features a 5V working reverse voltage, ultra-low capacitance, fast response time, and a compact SOD-923 package, making it ideal for protecting high-speed data lines such as USB, GPIO, communication interfaces, and portable electronic devices.

Key Features -

• Unidirectional TVS / ESD protection diode

• 5V working reverse voltage

• Ultra-low capacitance of 2.5pF (Typical)

• Fast response time of less than 1ns

• Low clamping voltage

• Low leakage current

• Compact SOD-923 package

• IEC 61000-4-2 Level 4 ESD protection

Specifications -

• Product Type: TVS / ESD Protection Diode

• Part Number: ESD9M5.0ST5G

• Diode Type: Unidirectional TVS Diode

• Package Type: SOD-923

• Reverse Working Voltage (VRWM): 5V

• Breakdown Voltage (VBR): Approximately 5.8V (Typical)

• Clamping Voltage (VC): Approximately 9.8V Maximum

• Peak Pulse Current (IPP): 1A (8/20µs)

• Capacitance: 2.5pF Typical

• Response Time: Less than 1ns

• Mounting Type: Surface Mount (SMD)

• Additional Features: Ultra-low capacitance, fast response, low leakage current, compact package

Applications -

• USB interface protection

• GPIO and I/O port protection

• High-speed data lines

• Mobile and portable devices

• Consumer electronics

• Embedded electronic systems

• Communication interfaces

• Industrial control equipment
