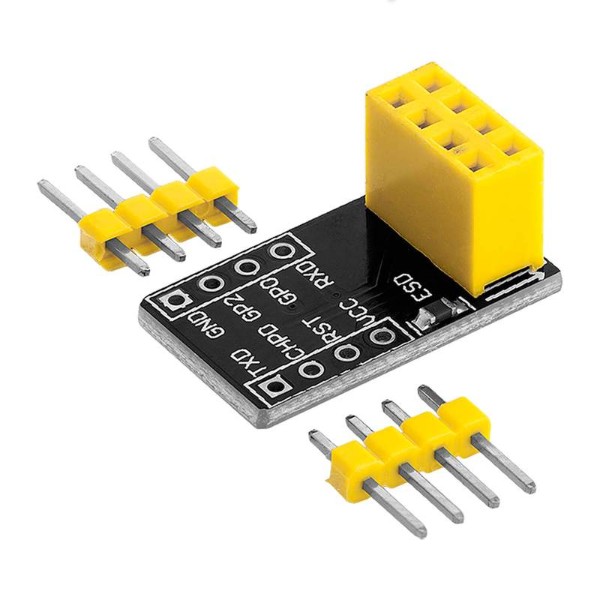

ESP-01 ESP8266 Pin Adapter Board Module (Breadboard Breakout for ESP-01 WiFi Module)

The ESP-01 ESP8266 Pin Adapter Board Module is a convenient breakout board designed to simplify the development and prototyping of projects using the ESP-01 ESP8266 WiFi module. It converts the compact 2×4 pin layout of the ESP-01 into standard 2.54mm header pins, making it easy to connect the module to breadboards, jumper wires, and development circuits. The adapter provides secure mounting and improved accessibility to power, GPIO, UART, and programming pins.

This adapter is ideal for IoT development, wireless communication projects, embedded system prototyping, and ESP8266 programming, enabling faster and more reliable hardware development.

Key Features -

• Designed specifically for the ESP-01 ESP8266 WiFi module

• Converts 2×4 pin layout to standard 2.54mm header pins

• Breadboard-friendly design for rapid prototyping

• Secure socket for easy module installation and removal

• Simplifies wiring and circuit development

• Easy access to power, GPIO, and UART pins

• Compact and lightweight PCB design

• Suitable for programming and debugging ESP-01 modules

• Compatible with Arduino, ESP8266 programmers, and USB-to-Serial adapters

• Ideal for IoT and embedded development projects

Specifications -

• Product type - ESP8266 Adapter Board

• Compatible module - ESP-01 ESP8266

• Pin layout - 2×4 Header Breakout

• Header pitch - 2.54mm

• Logic voltage - 3.3V

• Board type - Adapter and Expansion Board

• Mounting type - Through-Hole Header

• Application - WiFi Development and Prototyping

• Package / Mounting type - PCB Breakout Board

Applications -

• ESP8266 development projects

• IoT prototyping

• Breadboard testing

• Wireless sensor networks

• Smart home devices

• ESP-01 programming and debugging

• Embedded system development

• Educational electronics projects

• Arduino WiFi projects

• DIY automation systems
