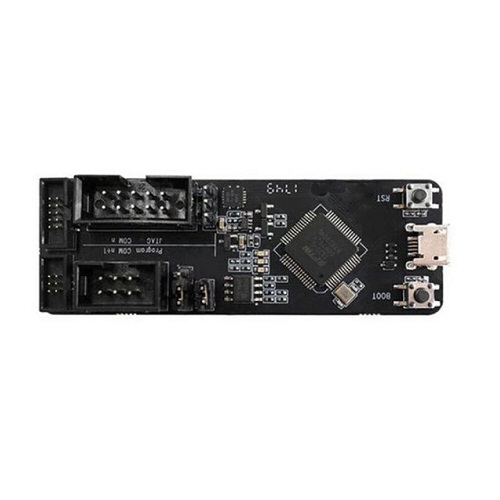

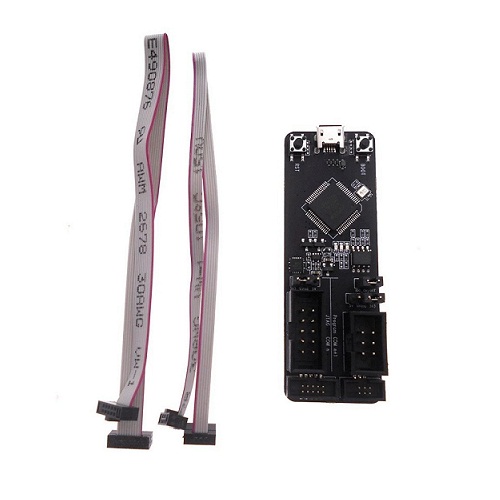

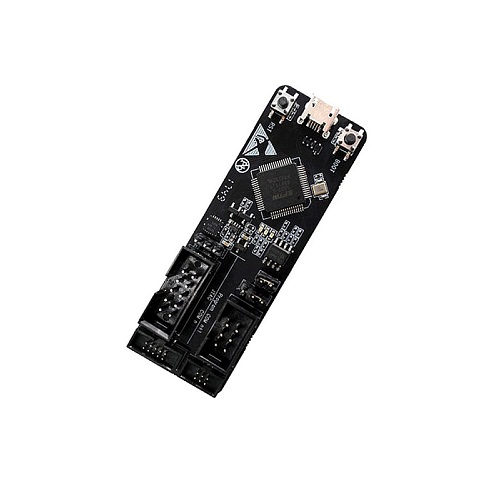

ESP-Prog Development Board JTAG Debug Programmer for ESP32 (USB FT2232HL Programming and Debugging Tool)

The ESP-Prog Development Board is a professional programming and debugging tool designed for ESP32 series development boards. Featuring the FT2232HL USB interface chip, it supports both firmware downloading and JTAG debugging through a single USB connection. The board provides separate Program and JTAG interfaces with 2.54mm and 1.27mm pitch connectors, making it compatible with a wide range of ESP32 development boards and custom hardware. Selectable 3.3V or 5V output voltage ensures compatibility with different target boards, making it an essential tool for embedded development, debugging, and firmware programming.

Key Features -

• Designed for ESP32 programming and JTAG debugging

• USB interface using FT2232HL chip

• Supports simultaneous programming and debugging

• Single USB cable connection to the computer

• Automatic firmware downloading support

• JTAG debugging using official ESP development tools

• Selectable 3.3V or 5V target power output

• Supports both 2.54mm and 1.27mm pitch connectors

• Foolproof connector design for reliable connections

• Compatible with ESP32 development and custom boards

Specifications -

• Product Type - ESP32 Programmer and Debugger

• Model - ESP-Prog Development Board

• USB Interface Chip - FT2232HL

• Programming Interface - Program (6-Pin)

• Debug Interface - JTAG (10-Pin)

• Connector Pitch - 2.54mm and 1.27mm

• Target Output Voltage - 3.3V or 5V (Selectable)

• Host Interface - USB

• Programming Support - Automatic Download

• Debugging Support - JTAG

• Compatible Devices - ESP32 Series Development Boards

Applications -

• ESP32 firmware programming

• ESP32 JTAG debugging

• Embedded software development

• IoT product development

• ESP32 hardware testing

• Prototype development

• Firmware debugging and testing

• Educational embedded systems

• Industrial ESP32 applications

• Custom ESP32 board development
