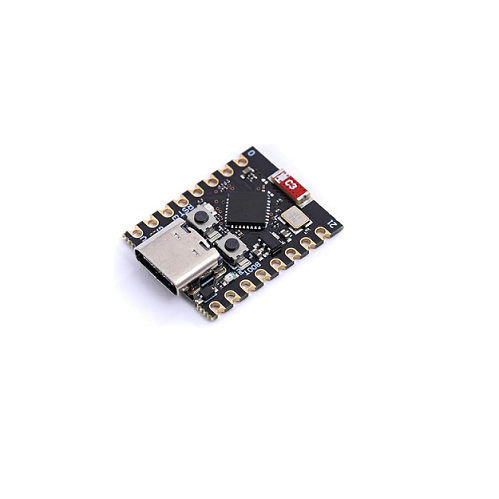

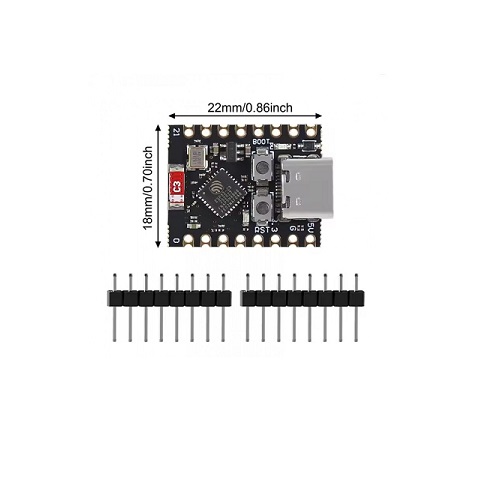

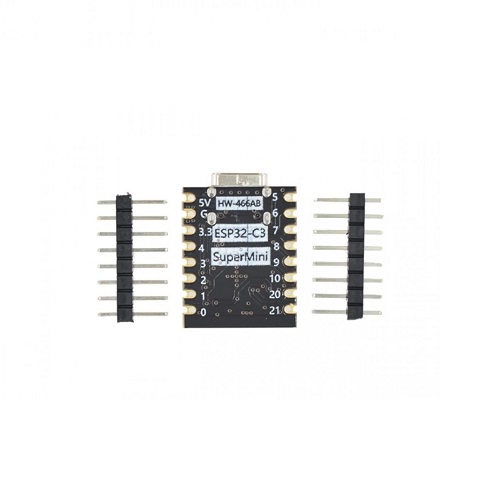

ESP32 C3 Super Mini Development Board Unsoldered Headers (HW 466B)
The ESP32 C3 Super Mini Development Board is a compact WiFi and Bluetooth enabled microcontroller board designed for IoT and embedded system development. It is based on the ESP32 C3 chip which features a 32 bit RISC V processor with integrated wireless connectivity for reliable communication and low power operation.
This development board provides USB programming and multiple GPIO interfaces for sensors, modules, and peripherals. The unsoldered header design allows flexible mounting and customization for breadboard prototyping or embedded integration. It is suitable for projects using Arduino/ESP32 development environments including IoT devices, wireless control systems, and automation applications.
Key Features
- Based on ESP32 C3 WiFi and Bluetooth microcontroller
- Compact super mini development board design
- 32 bit RISC V processor architecture
- Integrated WiFi and Bluetooth wireless connectivity
- USB interface for programming and power supply
- Multiple GPIO pins for sensor and peripheral interfacing

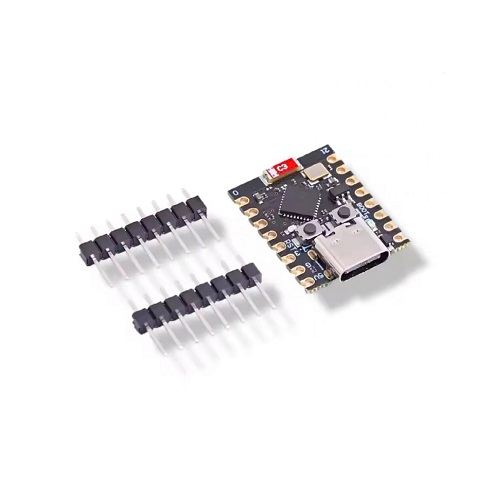

- Unsoldered headers for flexible installation
- Compatible with Arduino/ESP32 development platforms
Specifications
- Microcontroller = ESP32 C3
- Processor Architecture = 32 bit RISC V
- Wireless Connectivity = WiFi and Bluetooth
- USB Interface = USB for programming and power
- GPIO Pins = Multiple multifunction GPIO pins
- Operating Voltage = 3.3V
- Board Type = Super mini development board
- Header Type = Unsoldered pin headers
- Application = IoT wireless control and embedded systems

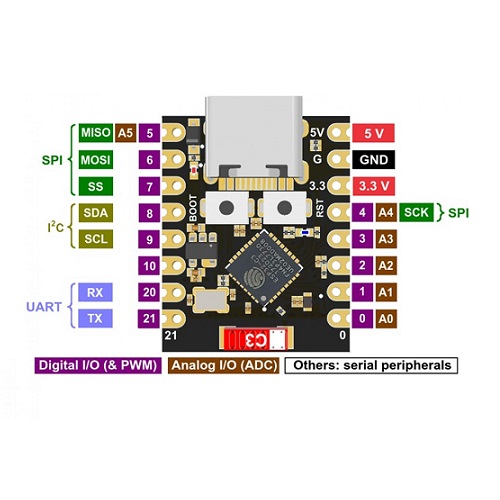

Interfaces
- 5V = Power input
- 3.3V = Regulated power output
- GND = Ground
- GPIO = General purpose input output pins
- RX = UART receive
- TX = UART transmit
- USB = Programming and power interface
