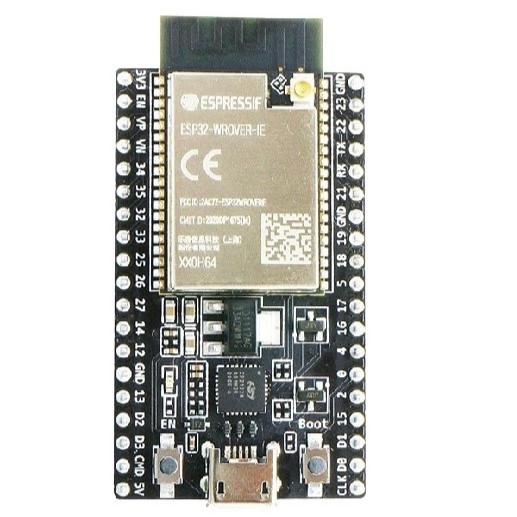

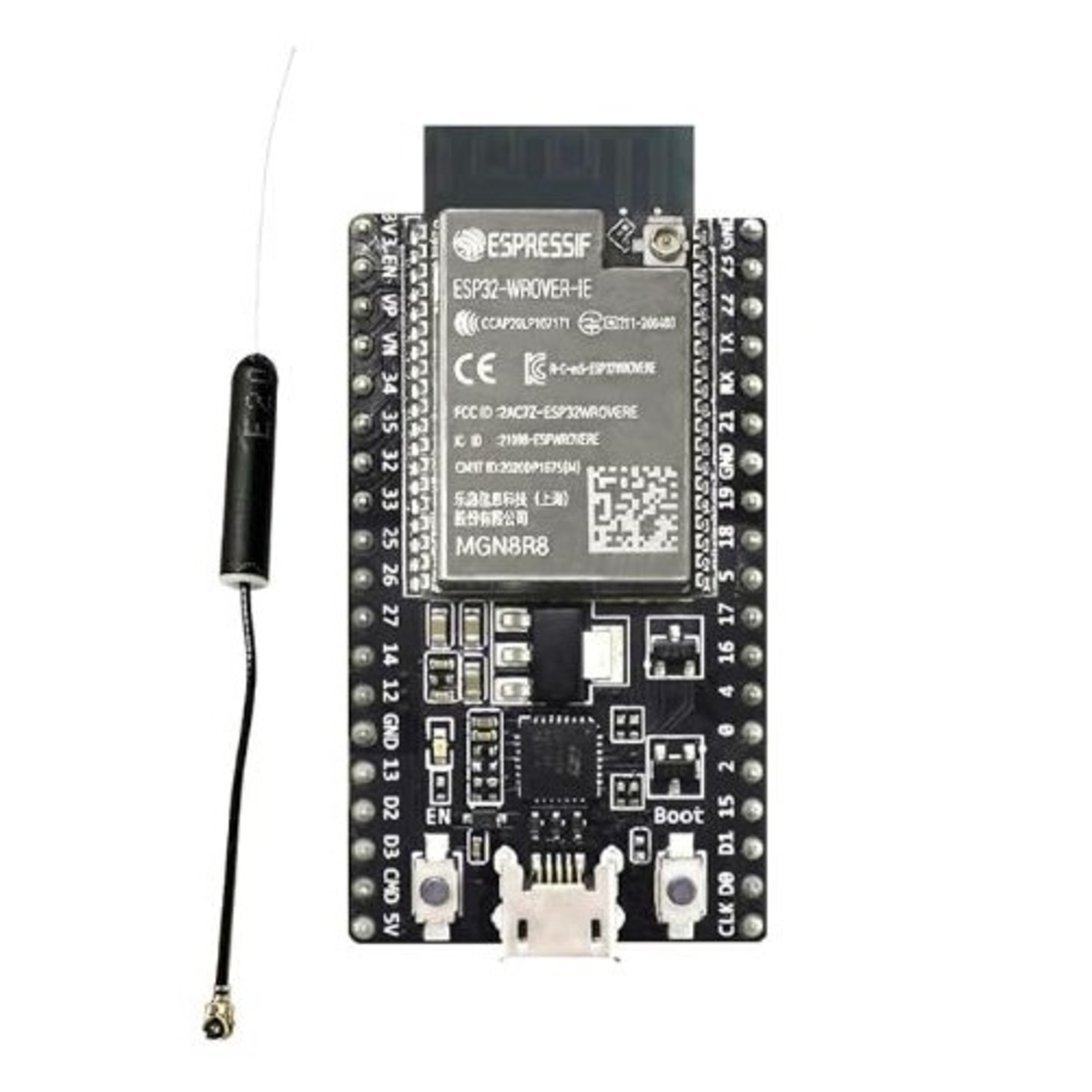

ESP32-WROVER-IE DevKitC VIE Development Board (Wi-Fi, Bluetooth 4.2, External Antenna)

The ESP32-WROVER-IE DevKitC VIE Development Board is an ESP32-based development platform designed for wireless communication, Internet of Things (IoT) applications, and embedded system development. It features a dual-core 32-bit Xtensa LX6 processor operating at up to 240 MHz, along with 2.4 GHz Wi-Fi and Bluetooth connectivity. The ESP32-WROVER-IE module includes an external IPEX/U.FL antenna connector, allowing the use of a compatible external antenna for improved wireless coverage depending on the installation and antenna used.

Key Features -

• ESP32-WROVER-IE module with dual-core 32-bit processor

• 2.4 GHz Wi-Fi supporting IEEE 802.11 b/g/n

• Bluetooth 4.2 with Bluetooth Classic and Bluetooth Low Energy

• External IPEX/U.FL antenna connector

• Processor clock frequency up to 240 MHz

• USB interface for programming and serial communication

• Multiple GPIOs for connecting sensors, displays, and peripherals

• Supports ADC, DAC, PWM, SPI, I2C, UART, and I2S interfaces

• Compatible with Arduino IDE, ESP-IDF, and MicroPython, subject to software and board configuration

Specifications -

• Product Type: ESP32 Development Board

• Module: ESP32-WROVER-IE

• Development Board: ESP32 DevKitC VIE

• Processor: Dual-core 32-bit Xtensa LX6

• Maximum Clock Frequency: 240 MHz

• Internal SRAM: 520 KB

• Flash Memory: 8 MB or 16 MB, depending on variant

• PSRAM: Up to 8 MB, depending on variant

• Operating Logic Voltage: 3.3V

• Power Input: 5V via USB

• Wireless Connectivity: Wi-Fi 802.11 b/g/n and Bluetooth 4.2 BR/EDR + BLE

• Antenna Connector: External IPEX/U.FL type

• USB Interface: Micro USB, depending on board revision

• Peripheral Interfaces: Digital I/O, ADC, DAC, PWM, SPI, I2C, UART, I2S, CAN-compatible functions, and SDIO support, subject to chip and pin configuration

• Operating Temperature: -40 C to +85 C

Applications -

• Internet of Things (IoT) development

• Wireless sensor networks

• Smart home and building automation

• Industrial monitoring and control prototypes

• Robotics and wireless control systems

• Remote data acquisition and logging

• Bluetooth-enabled devices

• Wi-Fi-connected embedded applications

• Wireless communication and networking projects
