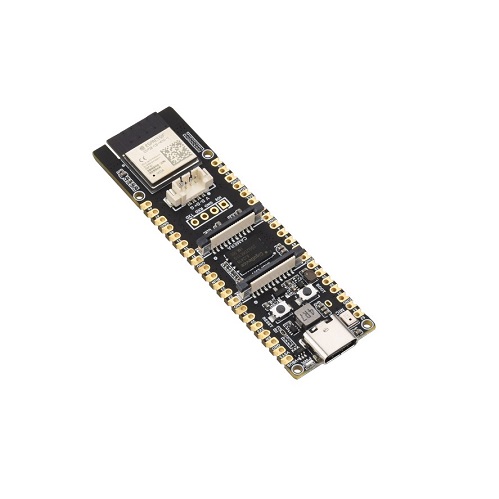

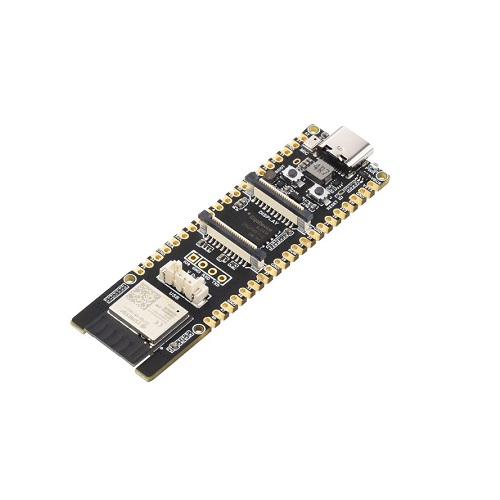

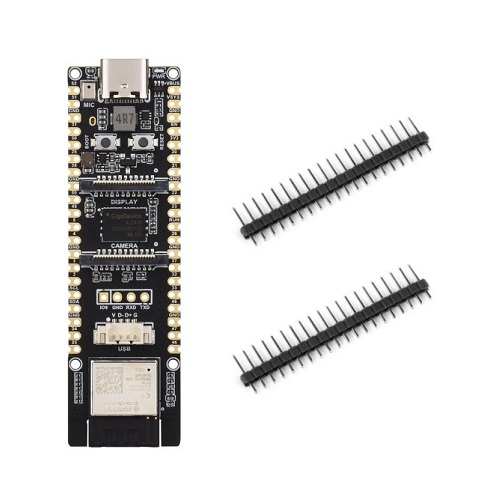

ESP32-P4-WIFI6 High Performance Development Board Based On ESP32-P4 And ESP32-C6 Supports WiFi 6 And Bluetooth 5 / BLE

The ESP32-P4-WIFI6 High Performance Development Board is an advanced embedded development platform designed for high performance computing networking and multimedia processing. It combines the ESP32-P4 high performance MCU with the ESP32-C6 wireless chip to provide powerful processing capability along with WiFi 6 and Bluetooth 5 / BLE connectivity.

The board supports advanced peripherals including MIPI camera and display interfaces USB 2.0 OTG and SDIO TF card storage making it suitable for edge AI multimedia systems and IoT devices. With onboard PSRAM and NOR Flash along with hardware security features it provides a robust platform for industrial development smart devices and embedded applications using advanced ESP32 development frameworks.

Key Features

• High performance ESP32-P4 MCU with RISC-V architecture
• Integrated ESP32-C6 wireless connectivity
• Supports WiFi 6 and Bluetooth 5 / BLE
• Advanced multimedia processing including JPEG codec and H264 encoder
• Image processing support with ISP and pixel processing accelerator
• Onboard 32MB PSRAM and 32MB NOR Flash
• MIPI-CSI camera interface and MIPI-DSI display interface
• USB 2.0 OTG support
• SDIO 3.0 TF card slot support
• Microphone and speaker interface for audio applications
• 2 x 20 GPIO header with multiple programmable pins
• Advanced hardware security including secure boot and flash encryption

Specifications

• Main MCU = ESP32-P4 RISC-V 32 bit dual core processor
• Wireless Chip = ESP32-C6
• Wireless Connectivity = WiFi 6 and Bluetooth 5 / BLE
• HP ROM = 128 KB
• LP ROM = 16 KB
• HP L2MEM = 768 KB
• LP SRAM = 32 KB
• TCM = 8 KB
• PSRAM = 32 MB in package
• Flash Memory = 32 MB NOR Flash onboard
• USB Interface = USB 2.0 OTG
• Storage Interface = SDIO 3.0 TF card slot
• Camera Interface = MIPI CSI
• Display Interface = MIPI DSI
• Security Features = Secure boot flash encryption TRNG cryptographic accelerators

Interfaces

• 5V = Power input
• 3.3V = Regulated power output
• GND = Ground
• GPIO = Programmable general purpose input output pins
• USB = USB 2.0 OTG interface
• MIPI CSI = Camera interface
• MIPI DSI = Display interface
• SDIO = TF card storage interface
• MIC = Microphone input interface
• SPK = Speaker output interface
