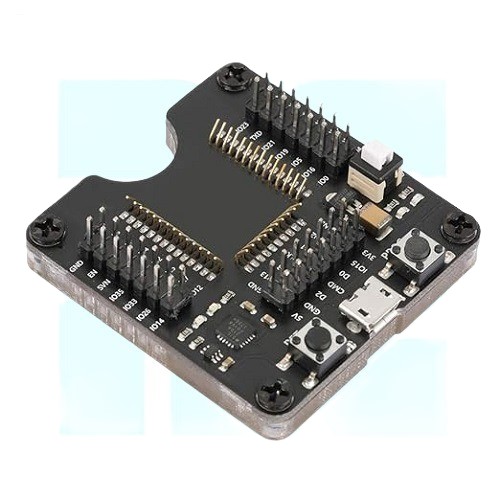

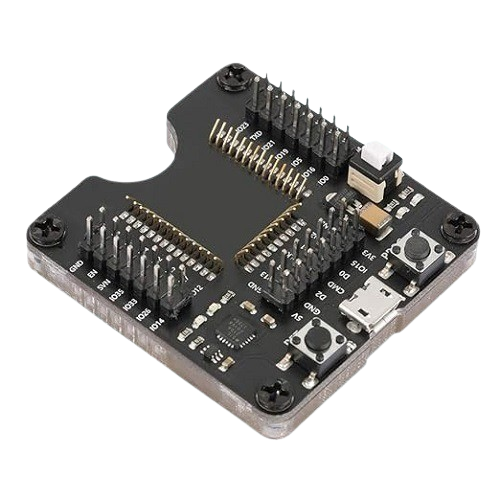

ESP32-WROOM-32 Burn Fixture Test Board (Programming and Testing Fixture)

The ESP32-WROOM-32 Burn Fixture Test Board is designed for programming, testing, and functional verification of ESP32-WROOM-32 modules. It provides a stable mounting platform for firmware flashing, serial communication, and module testing during development and production.

The board provides access to essential power, GPIO, and UART connections, making it suitable for repeated programming and testing operations. It can be used in development laboratories, repair environments, and production setups requiring ESP32 module programming.

Key Features -

• Dedicated programming and test fixture for ESP32-WROOM-32

• Supports firmware flashing and module testing

• Secure module mounting arrangement

• Exposes essential GPIO and UART connections

• Suitable for repeated programming operations

• Compact PCB fixture design

• Useful for development and production testing

Specifications -

• Compatible Module = ESP32-WROOM-32

• Operating Voltage = 3.3V DC

• Interface Type = UART serial programming

• Function = Firmware flashing and module testing

• Mounting Type = Desktop test fixture board

• Application = ESP32 development and production testing

Applications -

• ESP32 firmware programming

• Module functional testing

• Development laboratory testing

• Production line programming

• ESP32 module repair and diagnostics

• Batch firmware flashing
