Flame Sensor with 1m Cable 4.75V to 5.3V for Arduino & Raspberry Pi Board (YG1006 Infrared Fire Detection Sensor Module)

Flame Sensor with 1m Cable 4.75V to 5.3V for Arduino & Raspberry Pi Board (YG1006 Infrared Fire Detection Sensor Module)

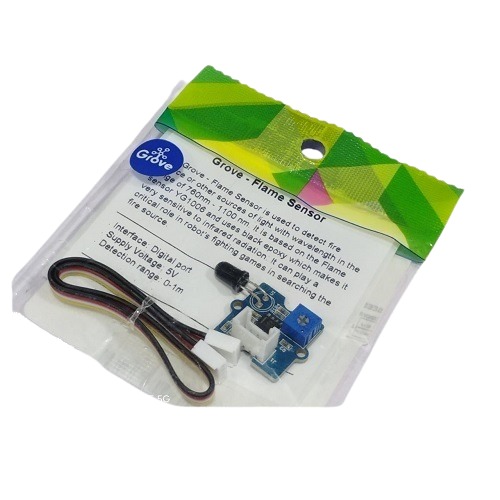

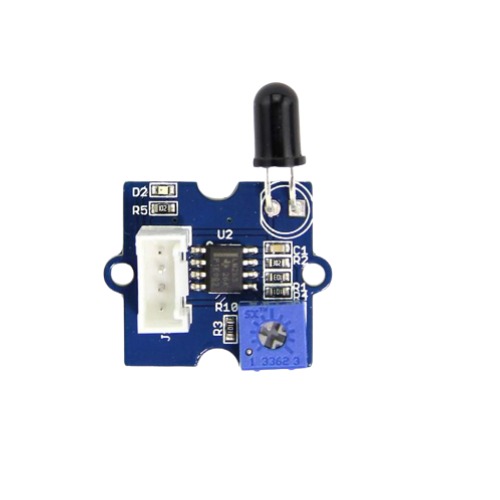

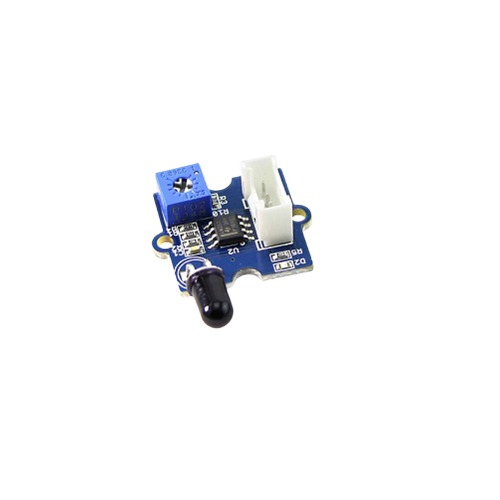

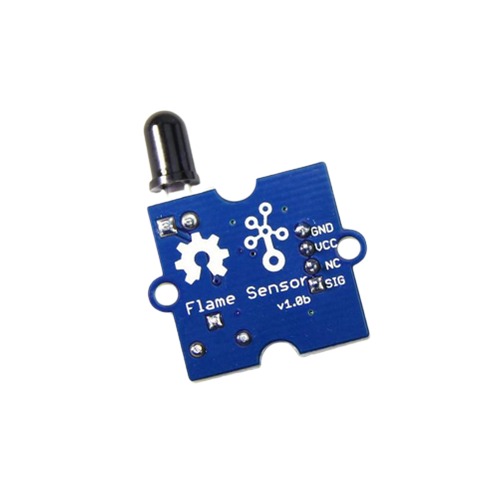

The Flame Sensor with Cable is a high-sensitivity infrared flame detection module designed for Arduino, Raspberry Pi, and other microcontroller projects. Based on the YG1006 NPN silicon phototransistor, the sensor detects flame or infrared light in the wavelength range of 760nm to 1100nm. It features adjustable sensitivity through an onboard precision potentiometer and provides fast response for fire detection, robotics, alarm, and safety projects.

Key Features -

• Detects flame and infrared light from 760nm to 1100nm

• High-sensitivity YG1006 NPN silicon phototransistor sensor

• Fast detection response

• Adjustable sensitivity using onboard precision potentiometer

• Operating voltage from 4.75V to 5.3V DC

• Supplied with 1m connecting cable

• Compatible with Arduino and Raspberry Pi boards

• Easy to interface and program

Specifications -

• Product type - Flame Sensor Module

• Sensor - YG1006

• Sensor type - High-Sensitivity NPN Silicon Phototransistor

• Detection wavelength - 760nm to 1100nm

• Operating voltage - 4.75V to 5.3V DC

• Cable length - 1m

• Sensitivity - Adjustable

• Sensitivity adjustment - Precision Potentiometer

• Detection type - Flame / Infrared Light

• Controller compatibility - Arduino & Raspberry Pi

• Application type - Fire and Flame Detection

Applications -

• Fire detection systems

• Flame alarm systems

• Arduino fire detection projects

• Raspberry Pi projects

• Fire-fighting robot projects

• Industrial flame monitoring

• Smart home safety systems

• Robotics and automation

• Educational and DIY electronics projects
