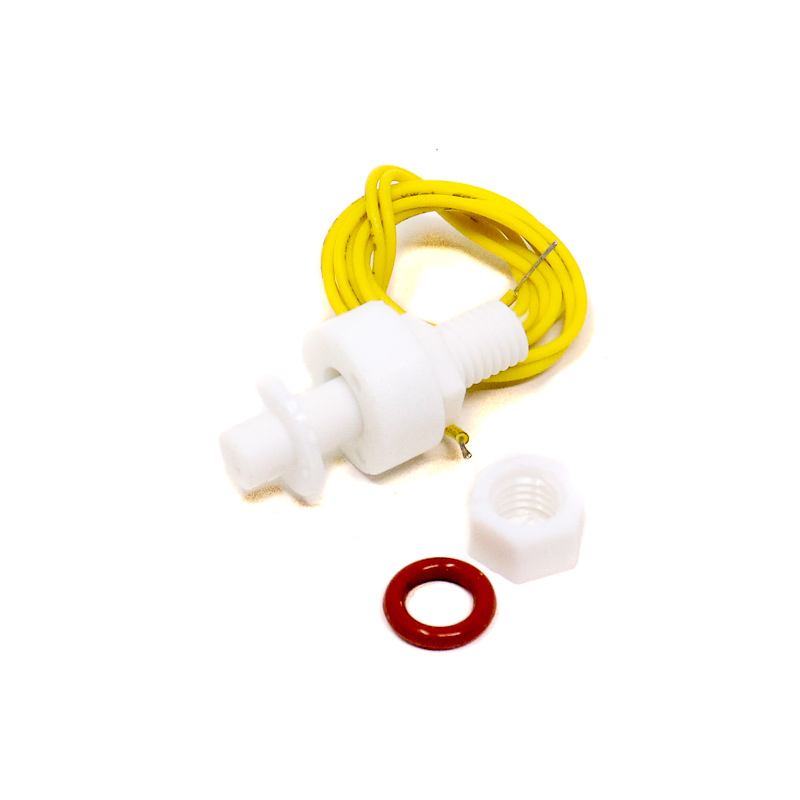

P35 Water Level Sensor Float Switch (Liquid Level Float Switch)

The P35 Water Level Sensor Float Switch is a compact and reliable liquid level detection device designed to monitor water levels in tanks, reservoirs, and containers. It uses a magnetic float and an internal reed switch to provide a digital ON/OFF output when the liquid reaches a preset level. The switch can be directly connected to microcontrollers, relays, pumps, and alarm systems for automatic liquid level monitoring and control.

Key Features -

• Magnetic float with internal reed switch

• Reliable liquid level detection

• Digital ON/OFF switching output

• Compact and durable construction

• Easy threaded installation

• Suitable for water and non-corrosive liquids

• Low power operation

• Stable and maintenance-free performance

• Easy interfacing with controllers and relays

• Ideal for automatic water level control

Specifications -

• Product type - Water Level Float Switch

• Model - P35

• Sensor type - Magnetic Float Switch

• Operating voltage - Up to 100V AC/DC (Model Dependent)

• Switch type - Normally Open or Normally Closed (Orientation Dependent)

• Current rating - Typically Up to 0.5A

• Contact type - Reed Switch

• Mounting type - Vertical Threaded Mount

• Body material - Polypropylene Plastic or Equivalent

• Output type - Digital ON/OFF

Applications -

• Water tank level monitoring

• Automatic water filling systems

• Sump pump control

• Industrial liquid level monitoring

• Water storage tanks

• Aquarium water level control

• Pump protection systems

• Embedded automation projects
