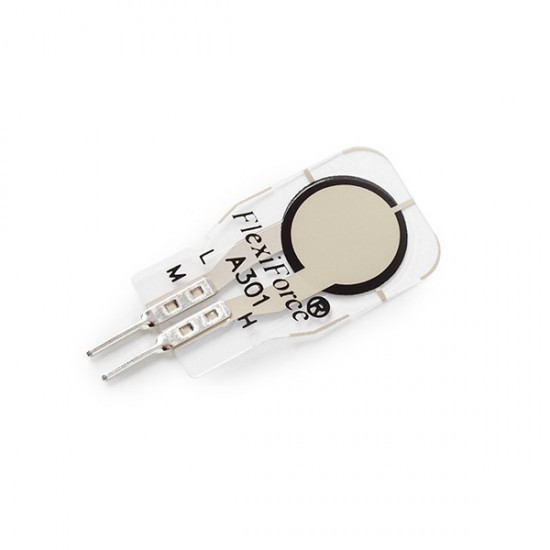

FORCE SENSOR A301 25LBS 25.4MM CIRCLE

The Force Sensor A301 25LBS 25.4mm Circle is a force sensitive resistor designed to measure applied pressure and force over a 25.4mm circular sensing area. The sensor changes its resistance according to the applied force allowing accurate analog measurement using a voltage divider circuit.

With a larger sensing area and higher force capacity up to 25 pounds this sensor is suitable for load detection pressure sensing and industrial embedded applications.

KEY FEATURES

25.4mm circular sensing area

Rated up to 25 pounds force

Force sensitive resistor technology

Resistance decreases with applied force

Thin and flexible construction

Fast response time

Lightweight and durable design

Easy analog interfacing

SPECIFICATIONS

Model A301

Sensing Area 25.4mm diameter circle

Force Range Up to 25LBS

Sensor Type Force sensitive resistor

Output Type Analog resistance variation

Operating Voltage 3.3V to 5V via voltage divider

Response Time Fast

Thickness Thin flexible sensor

INTERFACES

Two terminal resistive output

Connect using voltage divider configuration
