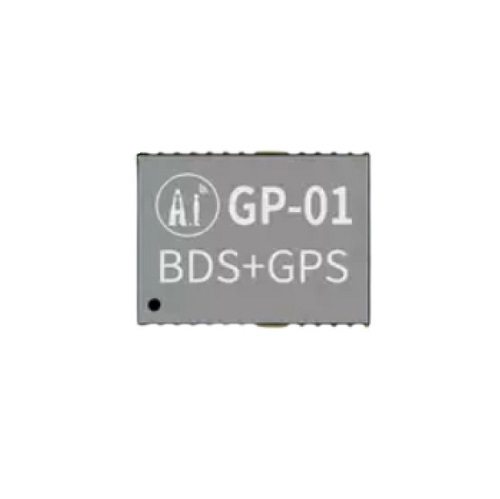

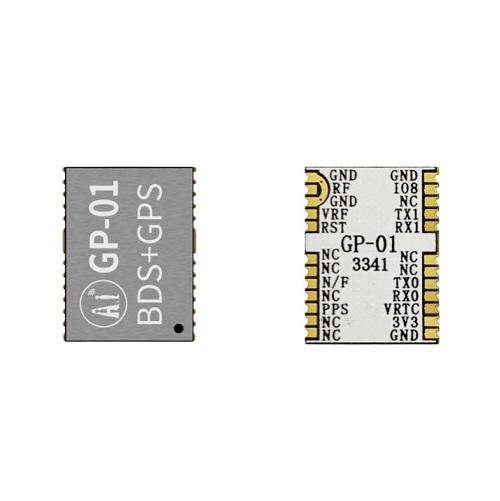

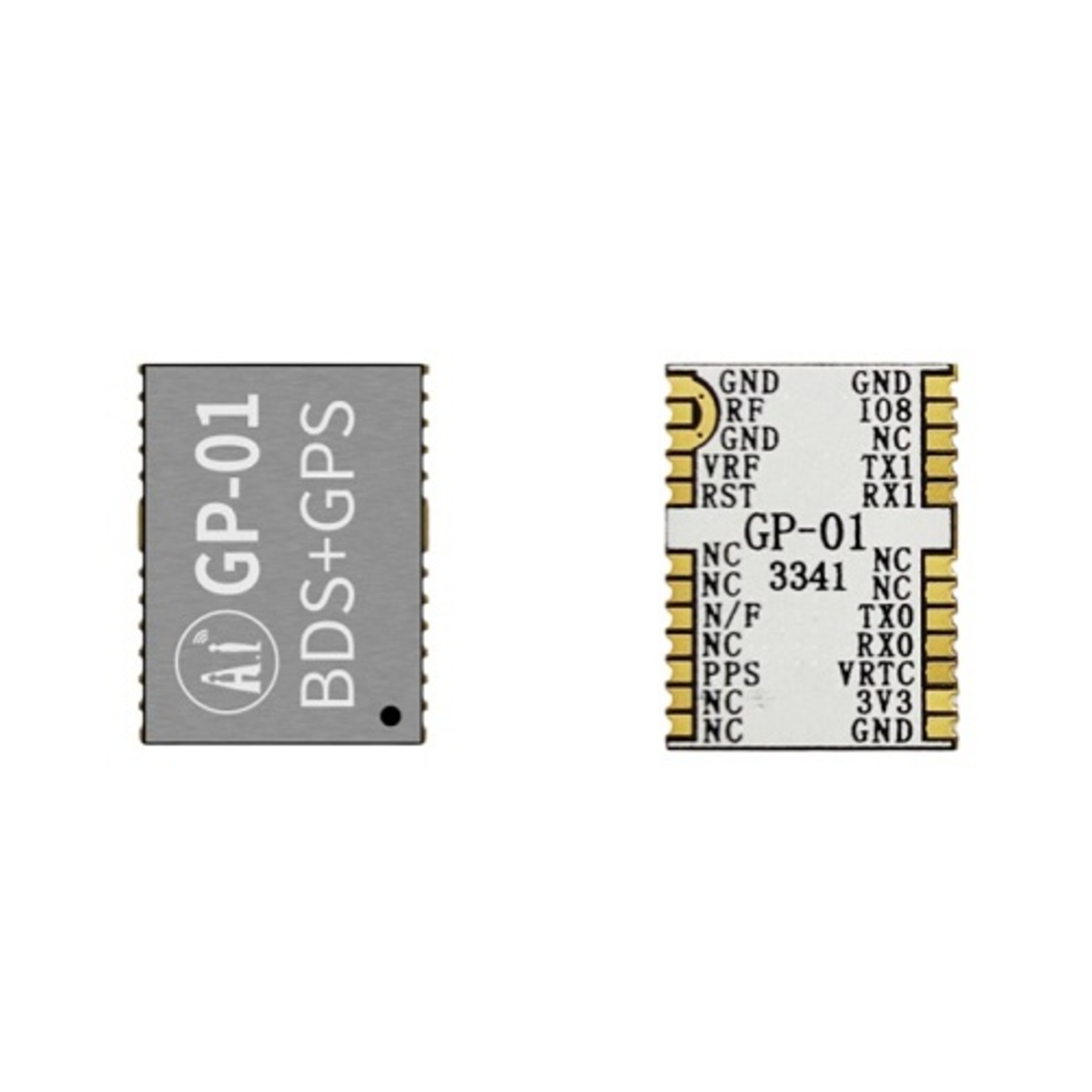

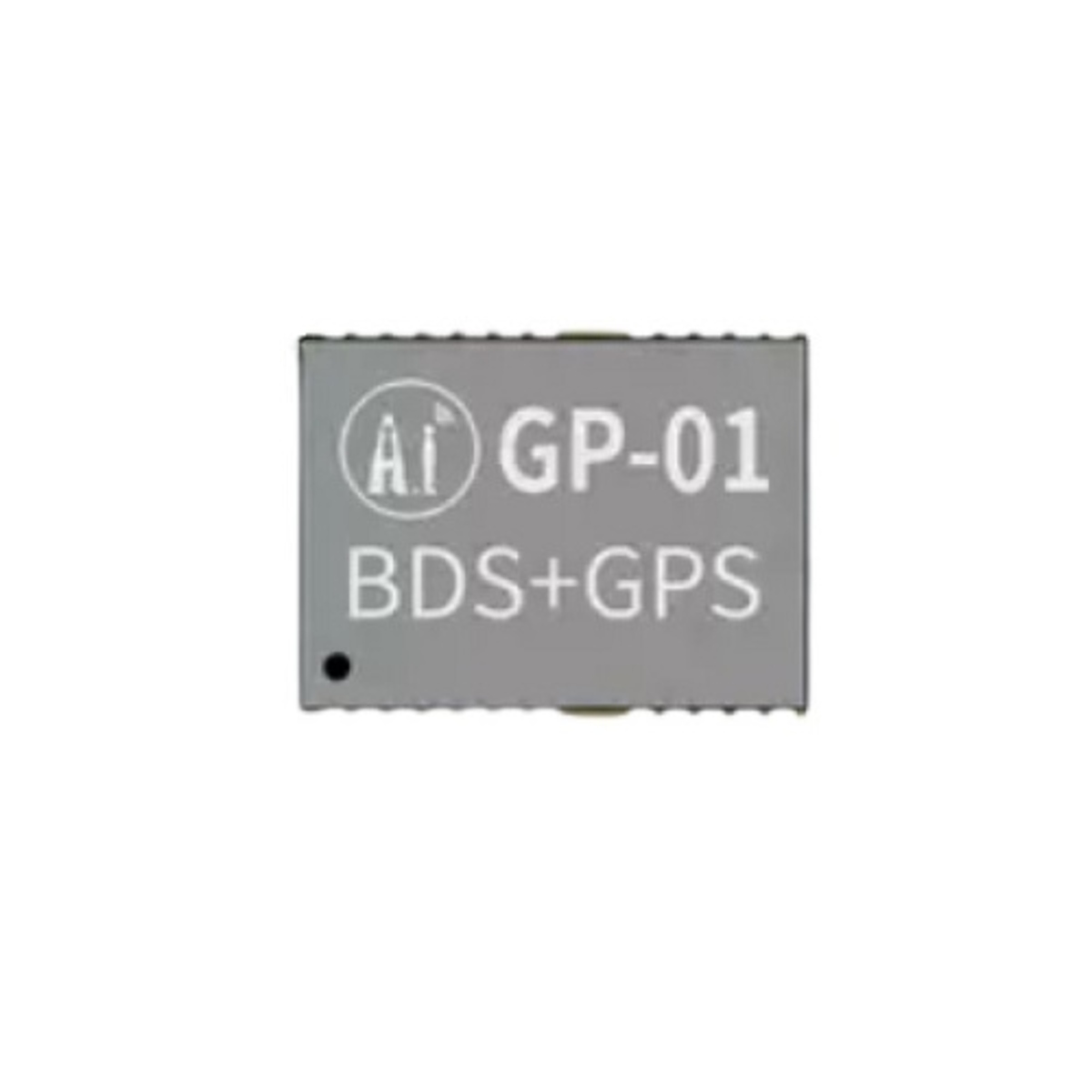

GP-01 GPS BDS GNSS Multi Mode Satellite Navigation Module (Multi System Positioning)

The GP-01 GPS BDS GNSS Multi Mode Satellite Navigation Module is a compact satellite positioning module designed to receive signals from multiple global navigation satellite systems. It supports GPS, BeiDou, and GLONASS based positioning for applications requiring real time location, speed, and timing information.

The module provides serial communication through a UART TTL interface for easy connection to Arduino, ESP32, STM32, Raspberry Pi, and other microcontroller based systems. Its compact design and multi system positioning capability make it suitable for tracking, navigation, robotics, drones, and IoT applications.

Key Features -

• Supports GPS, BeiDou and GLONASS satellite systems

• Multi system joint positioning support

• Real time position, speed and time information

• UART TTL serial communication

• High sensitivity satellite reception

• Update rate up to 10Hz

• Compact PCB module design

• Suitable for microcontroller and embedded systems

Specifications -

• Module Model = GP-01

• Supported GNSS = GPS, BDS, GLONASS

• Operating Voltage = 3.3-5V DC

• Positioning Accuracy = Less than 2.5m typical

• Update Rate = Up to 10Hz

• Communication Interface = UART / TTL

• Operating Temperature = -40 to 85 C

• Module Size = Approx. 25 x 25mm

Applications -

• GPS tracking systems

• IoT location tracking

• Drone navigation

• Robotics and autonomous vehicles

• Vehicle tracking systems

• Navigation projects

• Arduino and ESP32 GPS projects

• Time synchronization systems
