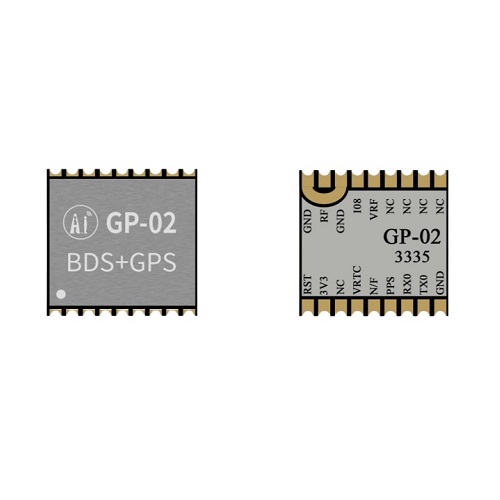

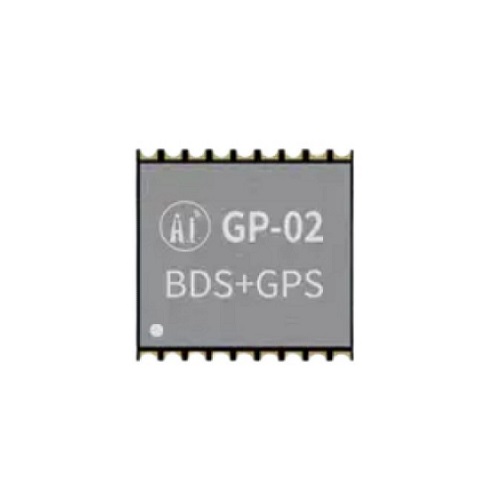

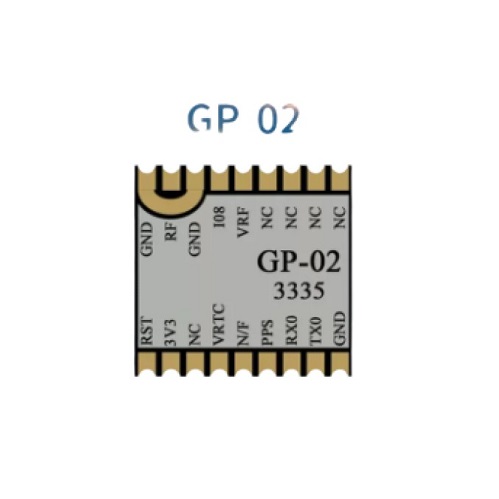

GP-02 GPS BDS Multi Mode Satellite Navigation Module (Multi System Positioning)

The GP-02 GPS BDS Multi Mode Satellite Navigation Module is a compact satellite navigation module designed to provide real time positioning, velocity, and timing information using GPS and BeiDou satellite systems. Multi system positioning helps improve positioning reliability and availability in suitable signal environments.

The module communicates through a UART TTL interface, allowing easy integration with Arduino, ESP32, STM32, Raspberry Pi, and other embedded systems. Its compact design, low power consumption, and fast positioning capability make it suitable for tracking, navigation, drones, robotics, and IoT applications.

Key Features -

• Supports GPS and BeiDou satellite systems

• Multi system joint positioning support

• Real time position, velocity, and time information

• UART TTL communication interface

• High sensitivity satellite reception

• Update rate up to 10Hz

• Compact PCB module design

• Low power operation

• Suitable for portable and battery powered systems

Specifications -

• Module Model = GP-02

• Supported GNSS = GPS, BDS

• Operating Voltage = 3.3-5V DC

• Positioning Accuracy = Less than 2.5m typical

• Update Rate = Up to 10Hz

• Communication Interface = UART / TTL

• Operating Temperature = -40 to 85 C

• Module Size = Approx. 25 x 25mm

Applications -

• GPS tracking systems

• Vehicle tracking

• Drone navigation

• IoT location tracking

• Robotics and autonomous systems

• Navigation projects

• Arduino and ESP32 GPS projects

• Portable positioning devices
