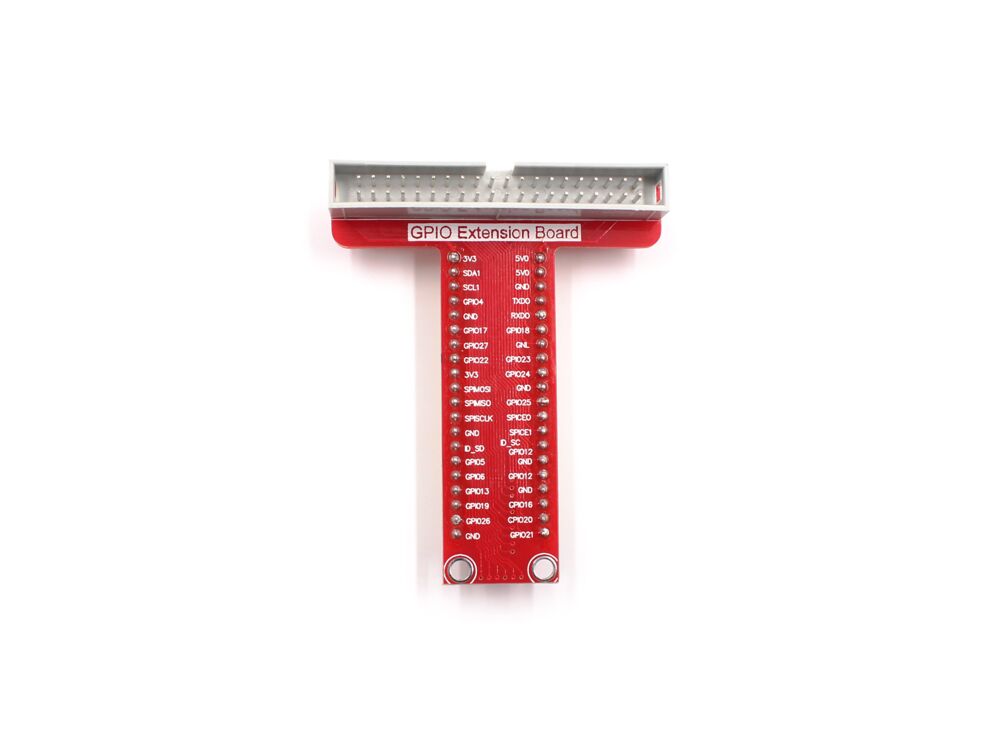

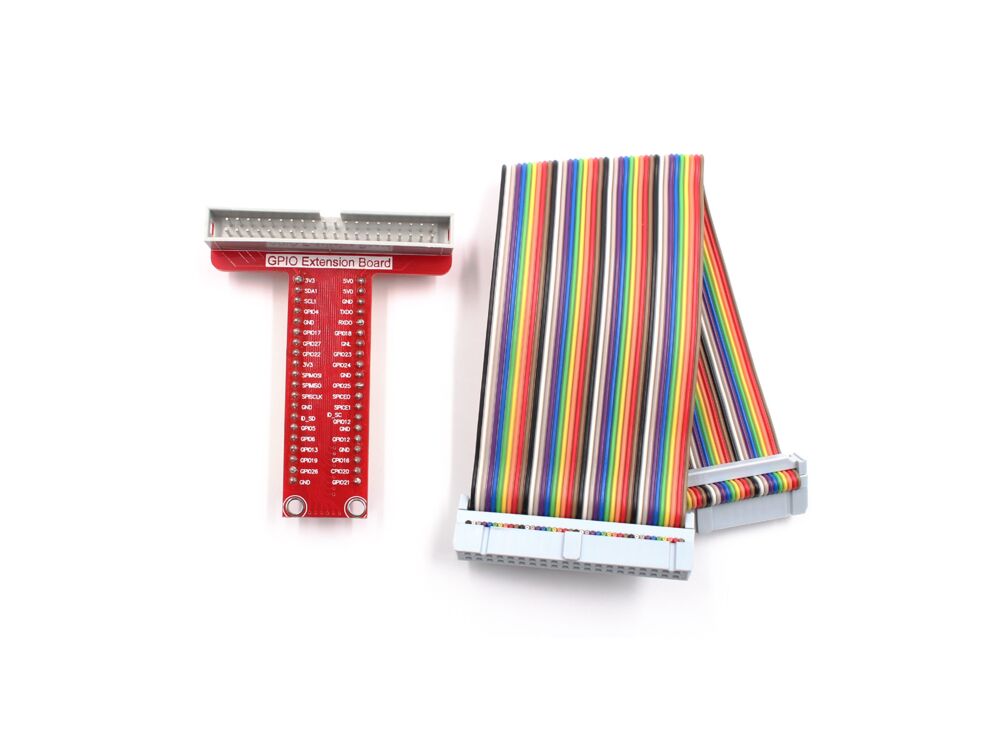

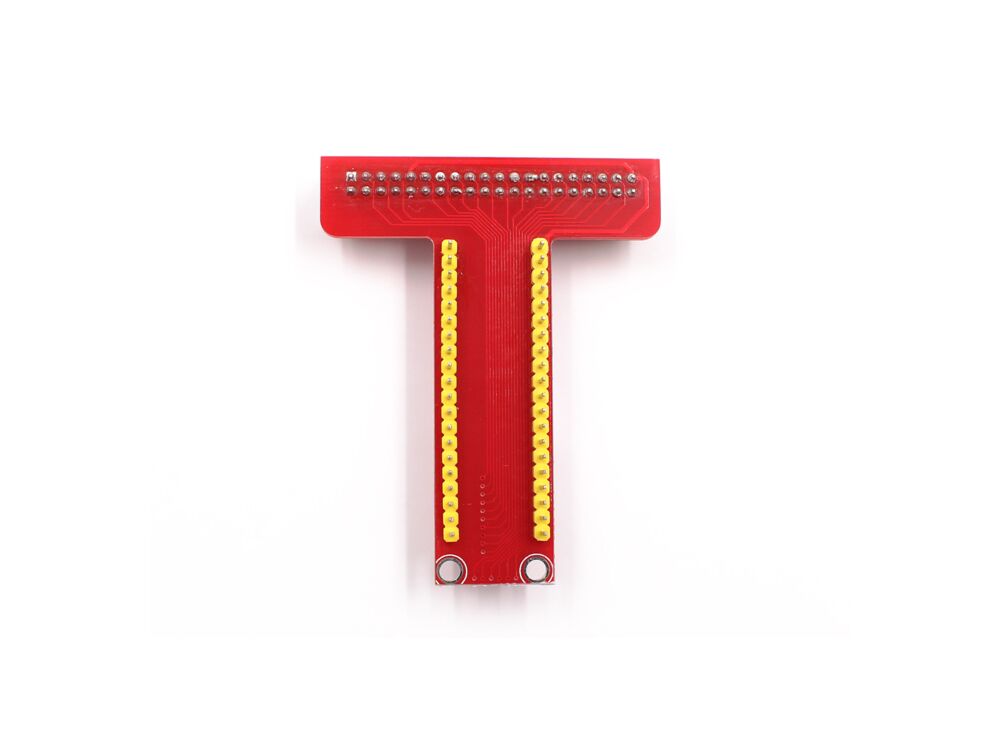

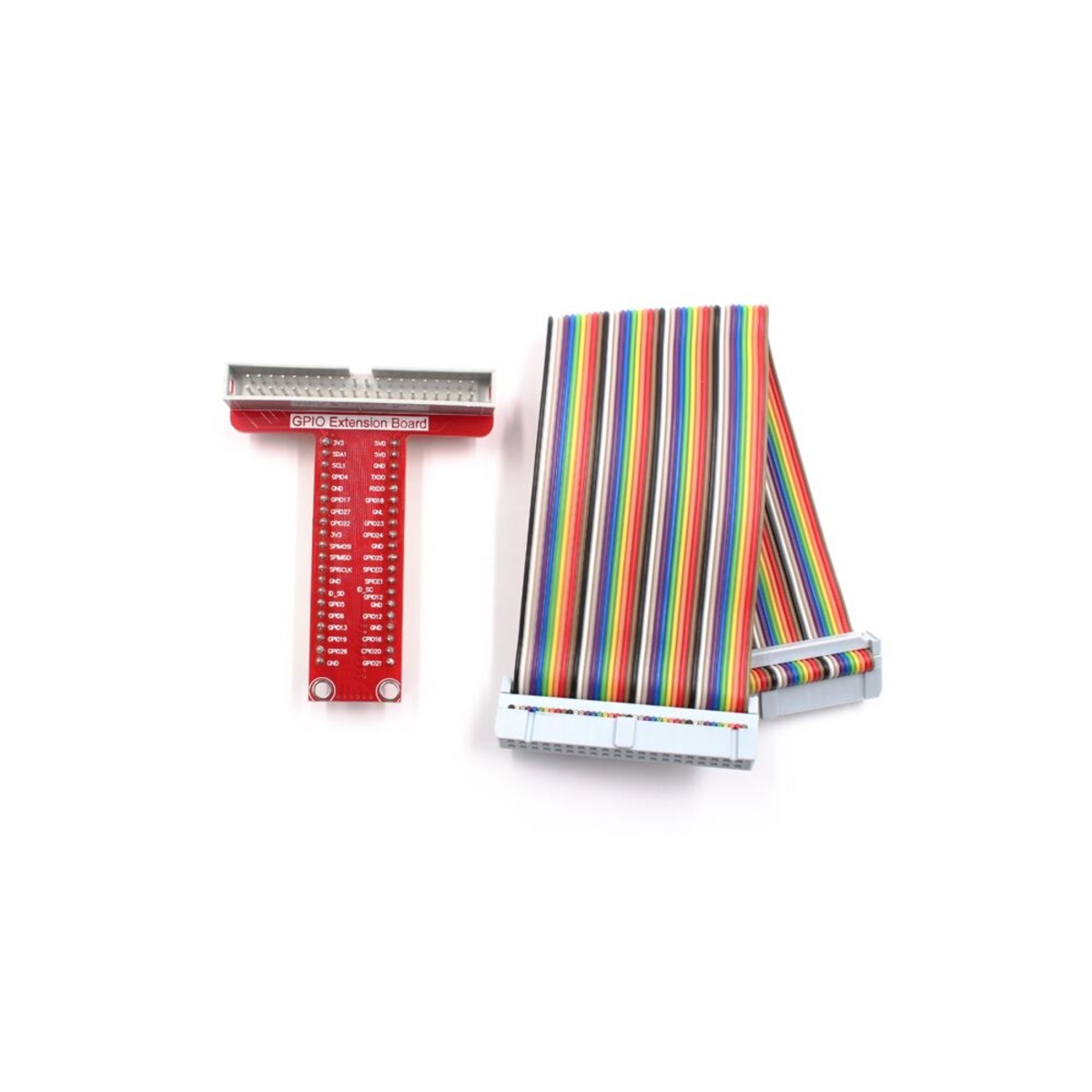

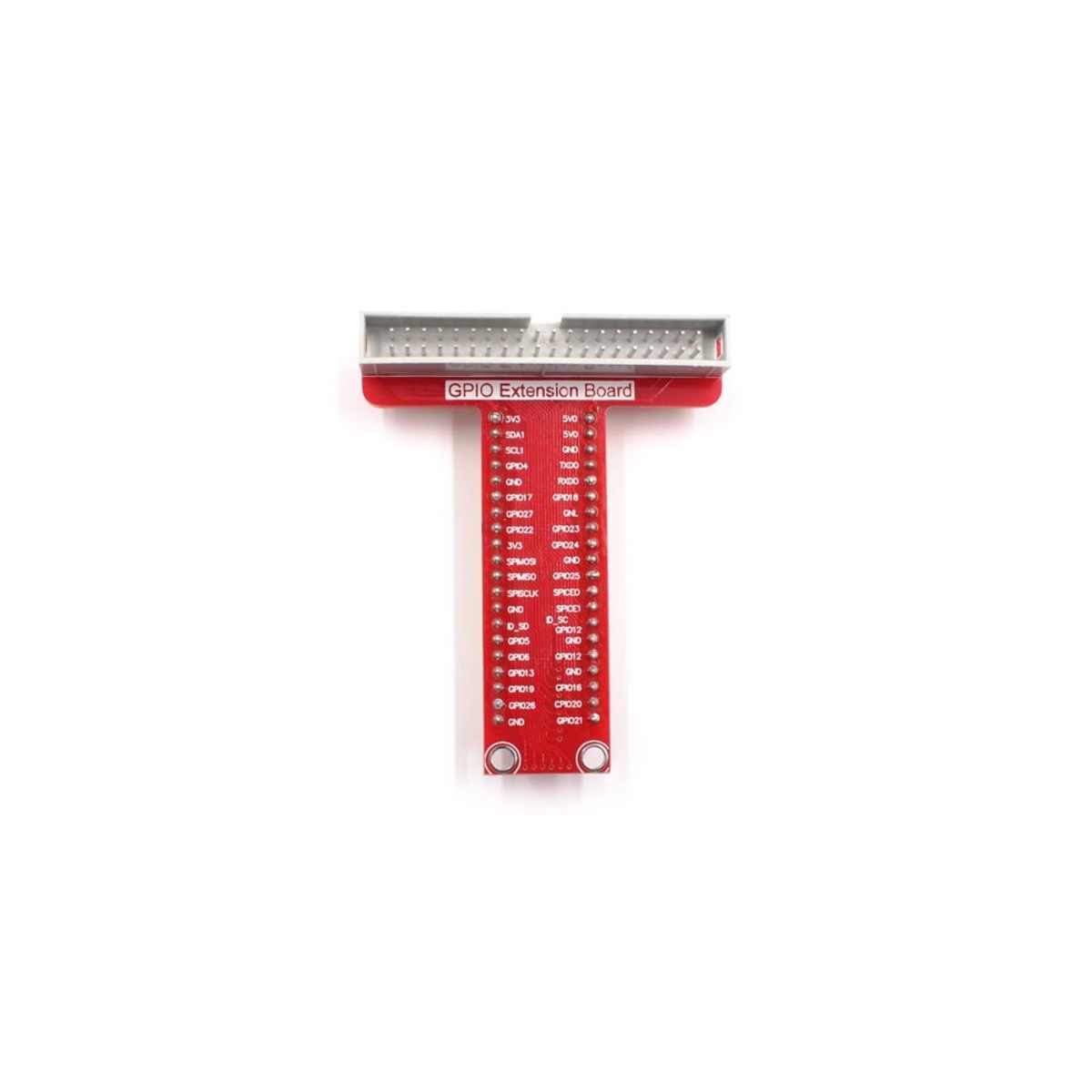

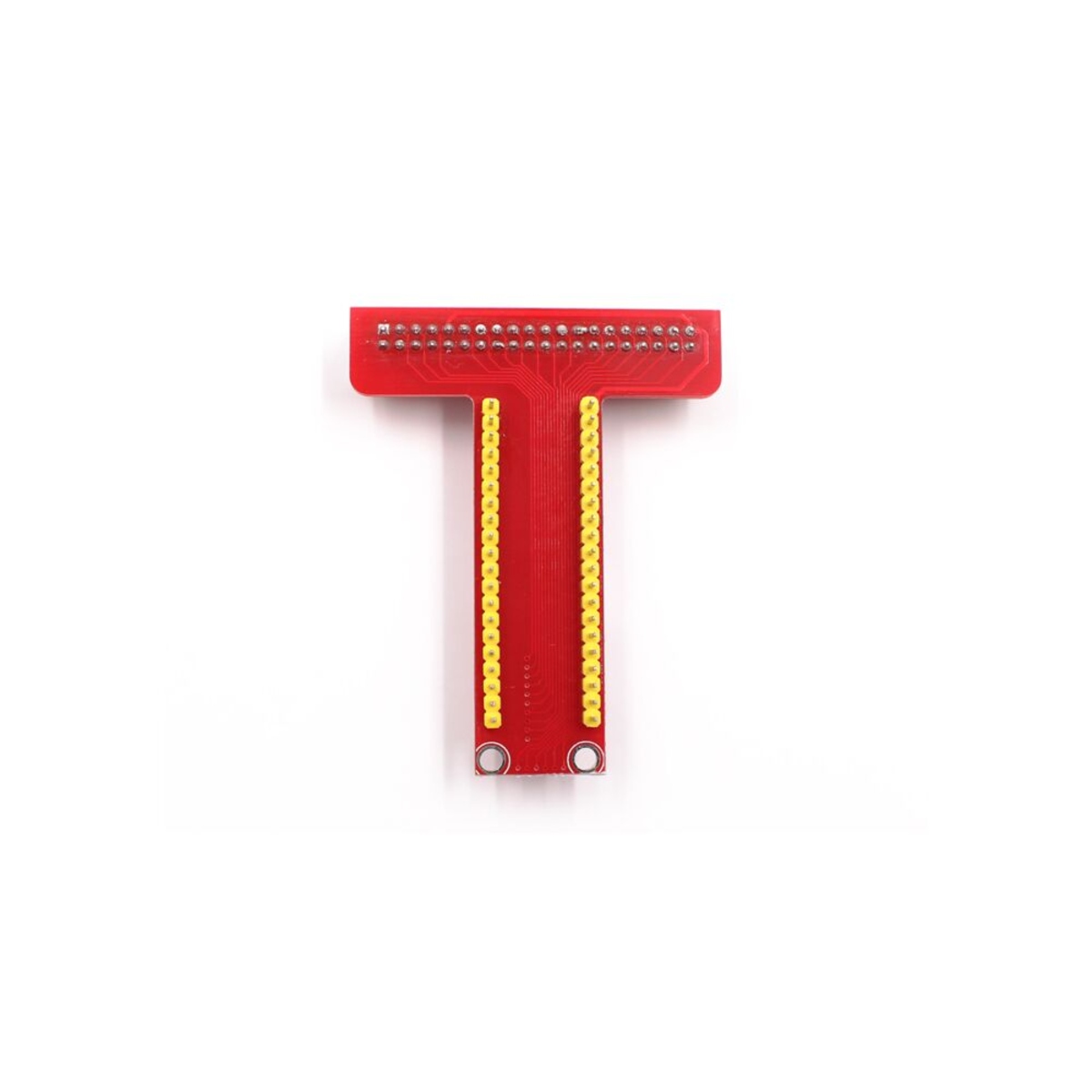

GPIO Extension Board for Raspberry Pi (40-Pin GPIO Breakout Expansion Board)

The GPIO Extension Board for Raspberry Pi is a convenient breakout board designed to expand and organize the 40-pin GPIO header found on Raspberry Pi development boards. It provides clearly labeled pin headers for quick and reliable access to every GPIO signal, simplifying prototyping, debugging, and hardware development. Compatible with Raspberry Pi models featuring a 40-pin GPIO connector, this expansion board supports digital I/O, I2C, SPI, UART, PWM, and power pins, making it ideal for robotics, IoT, embedded systems, industrial automation, and educational electronics projects.

Key Features -

• 40-pin GPIO header breakout

• Clearly labeled GPIO pin names

• Compatible with Raspberry Pi 40-pin models

• Supports I2C, SPI, UART and PWM interfaces

• Simplifies prototyping and wiring

• Compact and durable PCB design

• Easy integration with breadboards

• Reduces wiring errors

• Reliable signal connections

• Ideal for development and testing

Specifications -

• Product type - GPIO Extension Board

• Compatible boards - Raspberry Pi Models with 40-Pin GPIO Header

• Connector type - 40-Pin GPIO Header

• Supported interfaces - Digital I/O, I2C, SPI, UART and PWM

• Logic voltage - 3.3V

• Board type - GPIO Breakout Expansion Board

• Mounting type - External Expansion Board

• PCB material - FR4

• Operating temperature - Standard Ambient

Applications -

• Raspberry Pi prototyping

• IoT development

• Robotics

• Embedded systems

• Industrial automation

• Sensor interfacing

• Educational electronics

• Hardware testing
