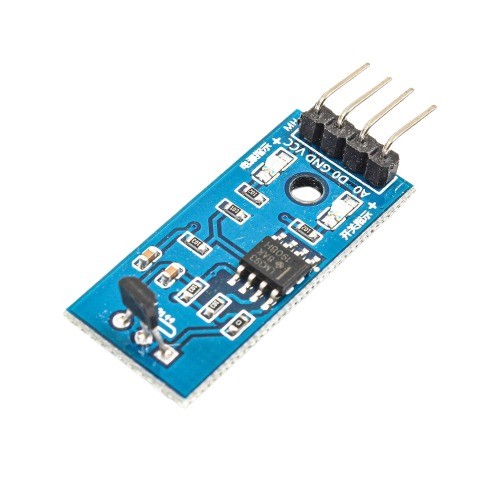

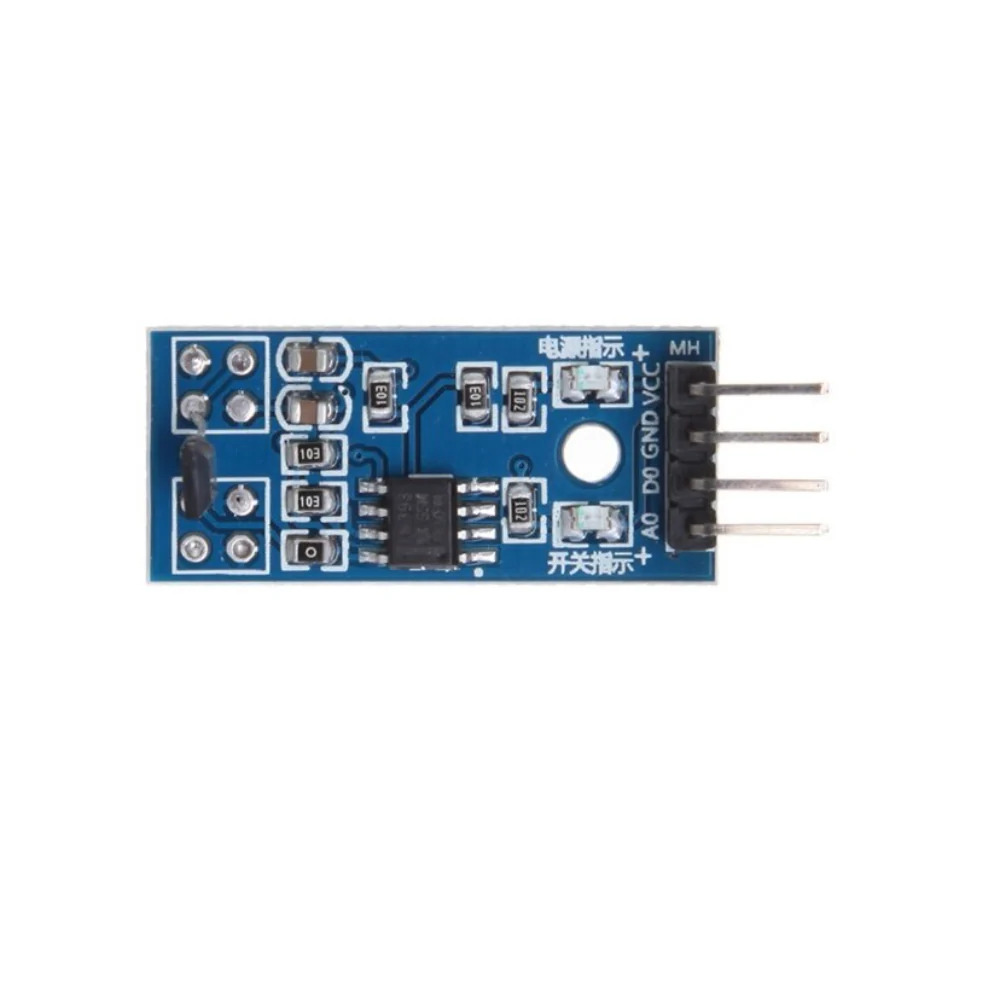

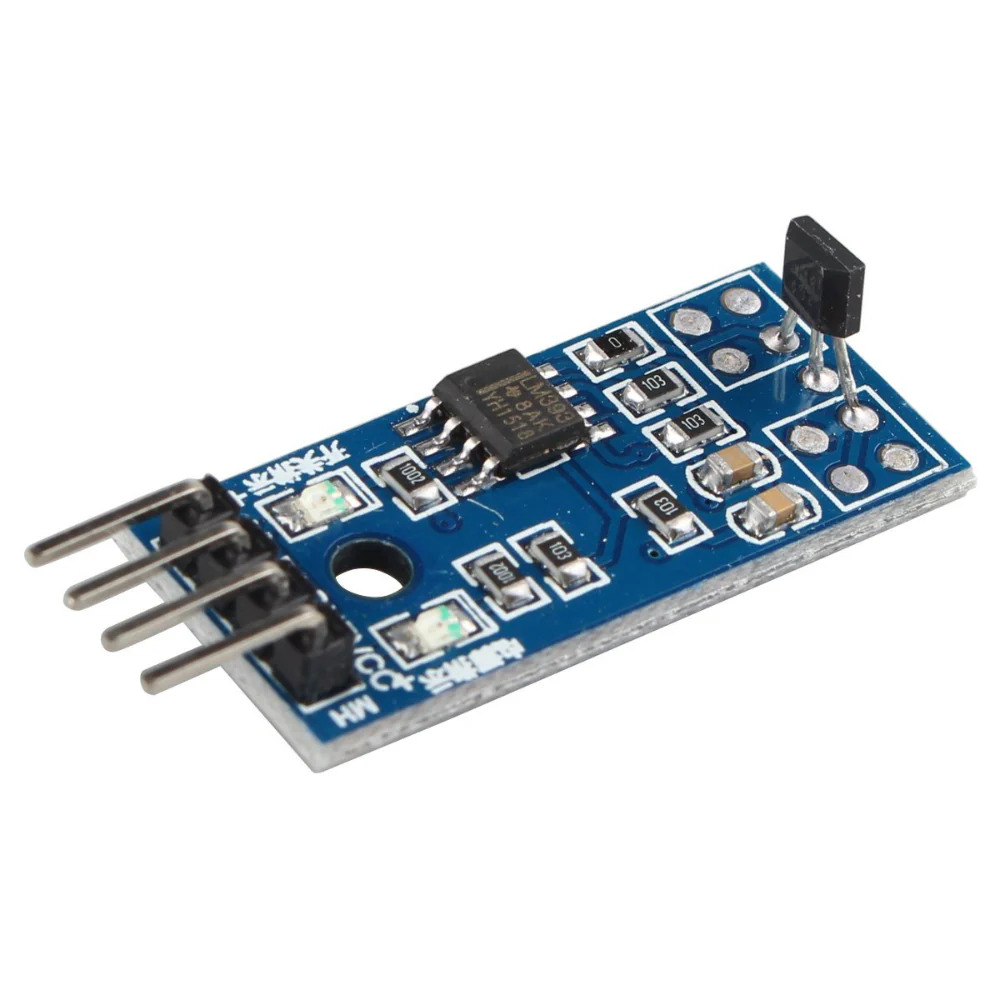

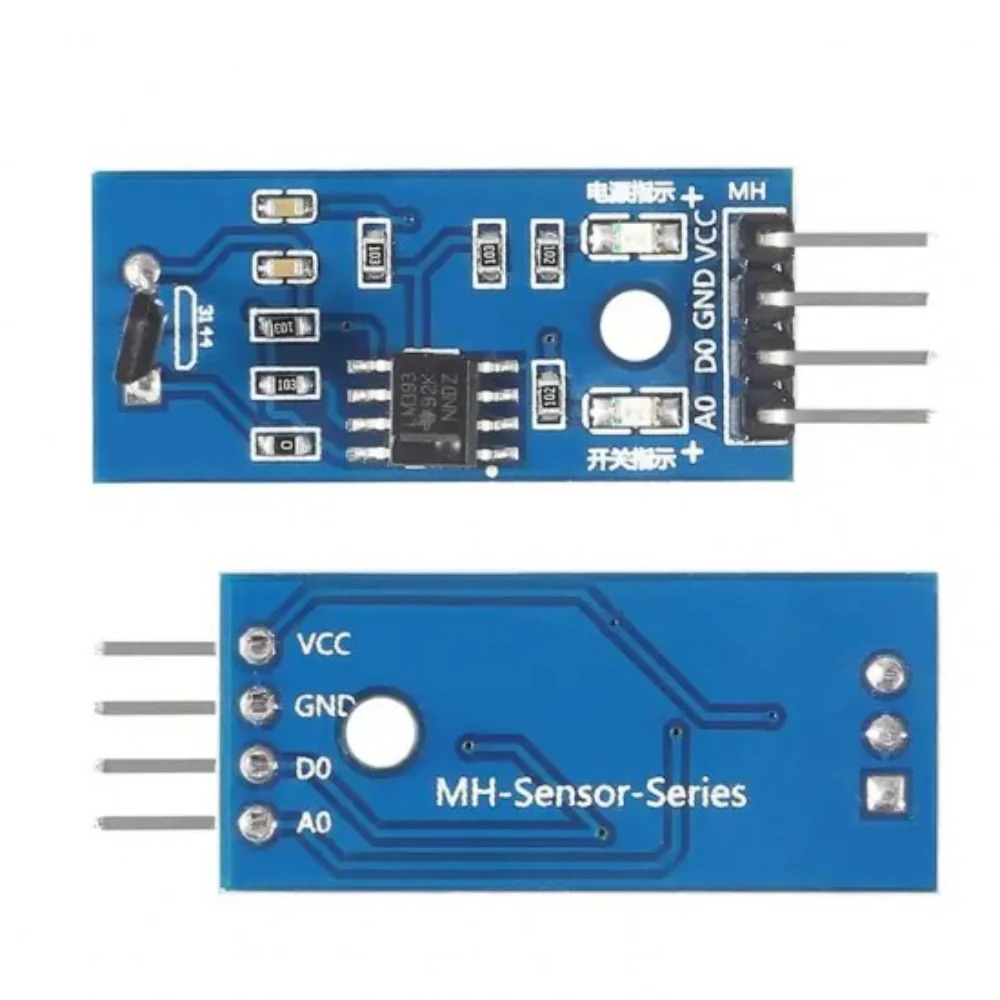

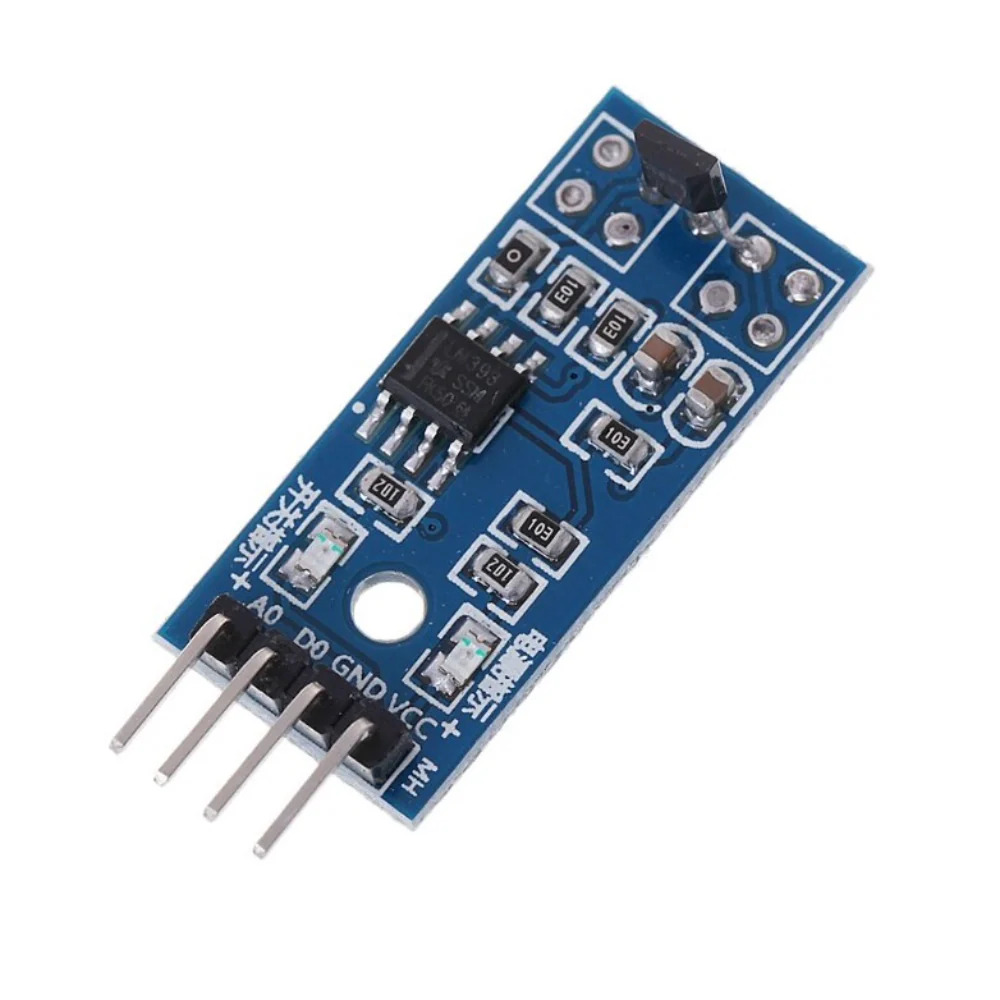

Hall Effect Sensor Module (Digital Magnetic Field Detection Sensor)

The Hall Effect Sensor Module is a compact magnetic field detection module designed to sense the presence of magnets and magnetic fields in embedded and automation applications. It utilizes a Hall effect sensor to convert magnetic flux into a digital electrical signal, making it ideal for position sensing, speed measurement, proximity detection, rotational sensing, and magnetic switch applications. The module features an onboard indicator LED and is compatible with Arduino, ESP32, ESP8266, STM32, Raspberry Pi (with appropriate logic level), PIC, and other microcontroller platforms.

Key Features -

• Detects magnetic field presence

• Digital HIGH/LOW output

• Fast magnetic field detection

• Onboard status LED

• Low power consumption

• Compact and durable PCB design

• Easy microcontroller interfacing

• Reliable magnetic sensing

• Suitable for position and speed detection

• Ideal for robotics and automation

Specifications -

• Product type - Hall Effect Sensor Module

• Sensor type - Digital Hall Effect Sensor

• Operating voltage - 3.3V to 5V DC

• Output type - Digital HIGH/LOW

• Detection method - Magnetic Field Sensing

• Response time - Fast

• Indicator - Onboard Status LED

• Power consumption - Low

• Operating temperature - Standard Ambient

• Mounting type - PCB Module

Applications -

• Magnetic switch systems

• Position sensing

• Speed measurement

• Motor RPM detection

• Proximity sensing

• Robotics

• Industrial automation

• Embedded electronics
