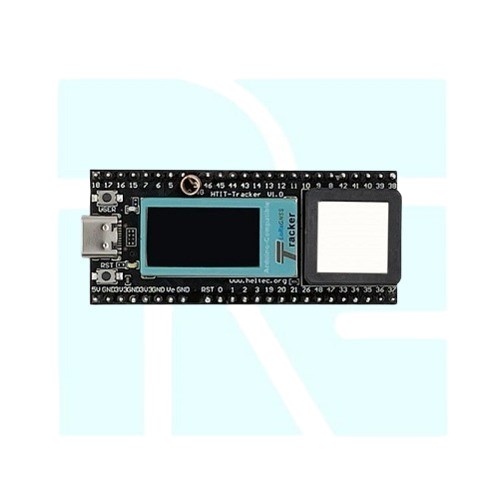

Heltec ESP32-S3 MCU SX1262 LoRa 868MHz UC6580 GNSS Wireless Tracker Development Board With 0.96in Display
The Heltec ESP32-S3 LoRa GNSS development board is a compact wireless tracker platform designed for IoT, GPS tracking and long range communication applications. It integrates an ESP32-S3 microcontroller with SX1262 LoRa transceiver and UC6580 GNSS module to provide positioning and long range wireless communication in a single board.
The board includes a 0.96 inch OLED display for real time data monitoring and debugging. It is suitable for wireless sensor networks, asset tracking, environmental monitoring and remote telemetry systems. The board supports development using Arduino/ESP32 frameworks and provides multiple interfaces for sensors and peripherals.
Key Features
- ESP32-S3 high performance microcontroller
- Integrated SX1262 LoRa transceiver
- 868MHz LoRa communication frequency
- Built in UC6580 GNSS positioning module
- 0.96 inch OLED display for status and data display
- Suitable for wireless tracking and IoT applications
- Supports Arduino/ESP32 development environment
- Low power design for remote monitoring systems
Specifications
- Microcontroller = ESP32-S3
- LoRa Chipset = SX1262
- LoRa Frequency = 868MHz
- GNSS Module = UC6580
- Display Type = OLED
- Display Size = 0.96 inch
- Wireless Communication = LoRa
- Development Support = Arduino/ESP32
- Application = Wireless tracking IoT telemetry systems
Interfaces
- USB Type C = Power supply and programming
- GPIO Pins = Digital input output
- I2C Interface = Sensor communication
- SPI Interface = High speed peripheral communication
- UART Interface = Serial communication
- GNSS Antenna Connector = GNSS signal input
- LoRa Antenna Connector = LoRa RF communication
