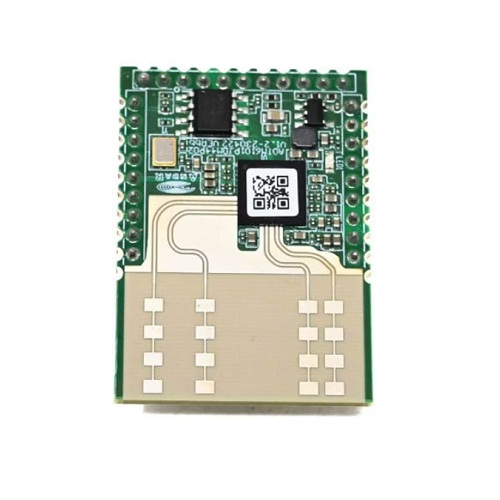

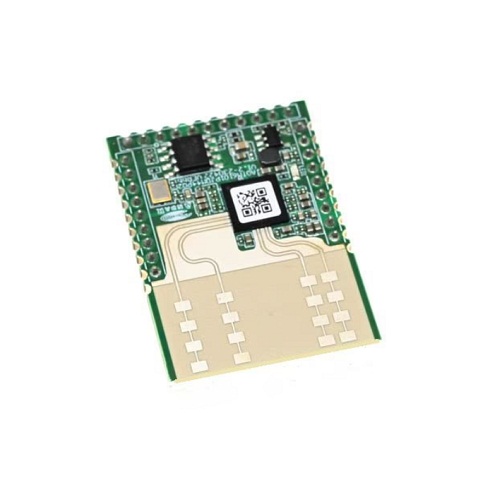

Hi-Link HLK-LD6003D 60GHz Trajectory Detection Radar Sensor (FMCW Human Tracking Radar Module 6m Range)

The Hi-Link HLK-LD6003D is a high-performance 60GHz FMCW trajectory detection radar sensor designed for accurate human presence detection, motion tracking, and position monitoring. Featuring a maximum detection range of 6 meters and a ±60° field of view, it can simultaneously track up to three people with precise positioning. The module supports both top and side mounting, configurable detection zones, and UART communication with adjustable parameters, making it an excellent solution for smart homes, security systems, intelligent lighting, automation, and IoT applications.

Key Features -

• 60GHz FMCW trajectory detection radar

• Maximum detection range up to 6 meters

• Human tracking for up to three people

• Precise position and trajectory detection

• Wide ±60° field of view

• Supports top and side mounting

• Zone-based detection with interference shielding

• UART communication interface

• Adjustable operating parameters

• Suitable for smart automation and IoT applications

Specifications -

• Product Type - Trajectory Detection Radar Sensor

• Model - HLK-LD6003D

• Brand - Hi-Link

• Radar Frequency - 60GHz

• Detection Technology - FMCW Radar Signal Processing

• Detection Range - 0 to 6m

• Field of View (FOV) - ±60°

• Human Tracking Capacity - Up to 3 People

• Operating Voltage - 3.3V

• Operating Current - 600mA

• Communication Interface - UART

• Mounting Options - Top Mount or Side Mount

Applications -

• Smart home automation

• Intelligent lighting control

• Human presence detection

• Indoor people tracking

• Security and surveillance systems

• Smart office automation

• IoT monitoring systems

• Automatic door control

• Occupancy detection

• Industrial automation
