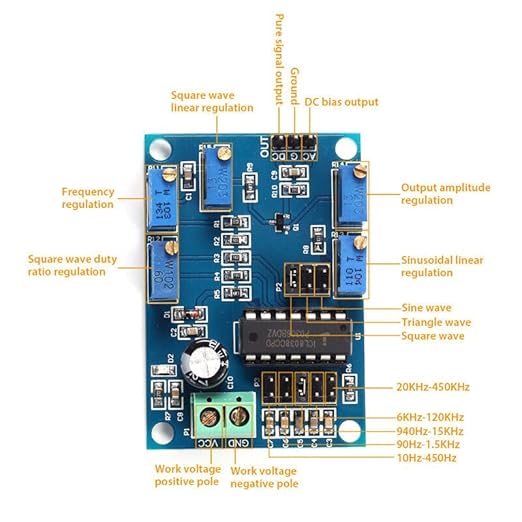

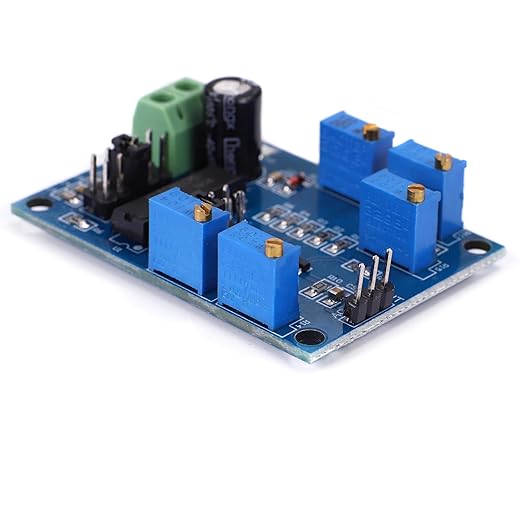

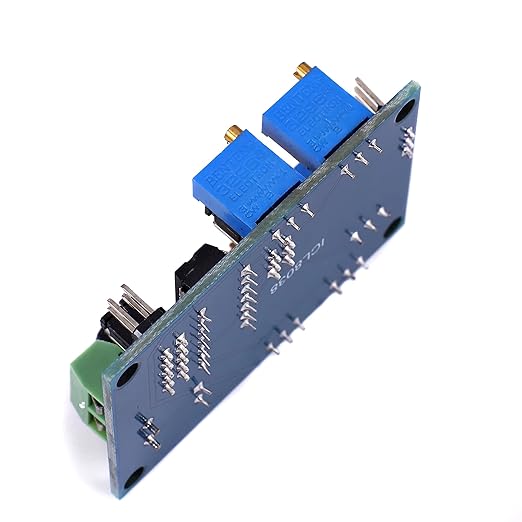

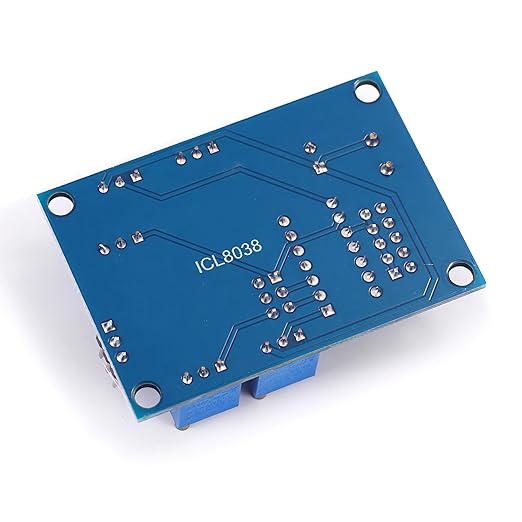

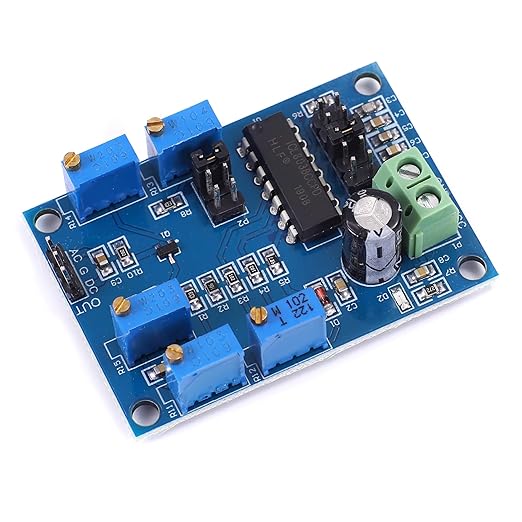

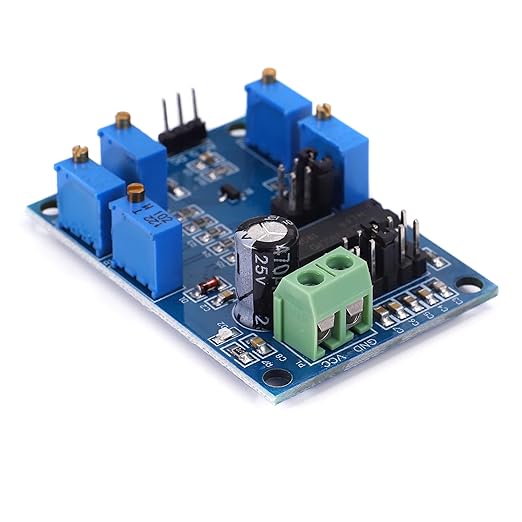

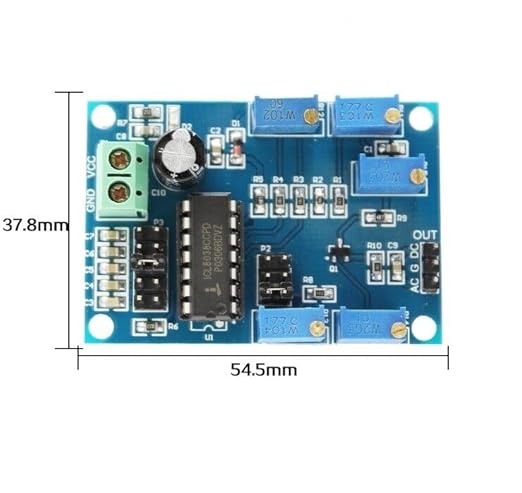

ICL8038 Sine, Triangular and Square Wave Signal Generator Module 10Hz-300kHz (Function Generator Module)

The ICL8038 signal generator module is a versatile function generator designed for generating sine, triangular, and square wave signals for testing, experimentation, education, and electronic development. Based on the ICL8038 waveform generator IC, it provides adjustable frequency output suitable for laboratory, embedded, and DIY electronics applications.

Key Features -

• Generates sine, triangular, and square waveforms

• Frequency range from 10Hz to 300kHz

• Based on ICL8038 waveform generator IC

• Adjustable output frequency

• Compact ready-to-use module design

• Suitable for testing and development applications

Specifications -

• Product type - Function generator module

• Controller IC - ICL8038

• Output waveforms - Sine wave, triangular wave, square wave

• Frequency range - 10Hz to 300kHz

• Output type - Analog waveform output

• Mounting type - PCB module

• Power supply - DC input operation

• Frequency adjustment - Variable frequency control

• Material - PCB module with electronic components

• Additional features - Multi-waveform generation with stable frequency output

Applications -

• Electronic circuit testing

• Signal generation experiments

• Educational laboratories

• Audio and waveform analysis

• Embedded system development

• DIY electronics projects
