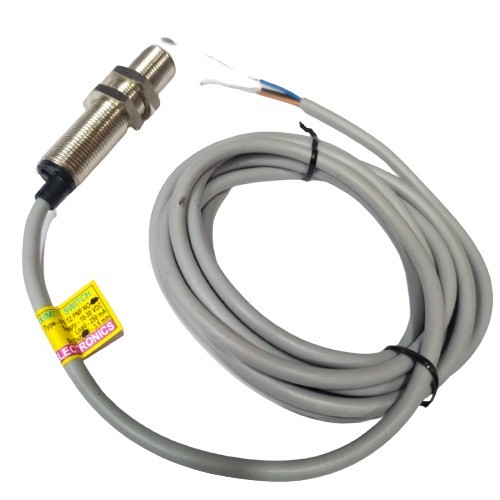

Inductive Proximity Switch PNP Type- IPS 12 PNP NO

The Inductive Proximity Switch PNP Type- IPS 12 PNP NO is a non contact metal detection sensor designed for industrial automation and control systems. It detects metallic objects within a specified sensing distance and provides a PNP normally open output signal suitable for PLC and controller inputs.

The sensor operates on a wide DC voltage range and supports load current up to 250mA. It is suitable for position sensing, object detection, counting applications, and limit switching in machinery and production equipment.

Key Features

• Inductive metal detection sensor
• PNP normally open output type
• Stable and reliable switching
• Compact cylindrical threaded body
• Suitable for PLC and automation systems
• Fast response and long service life

Specifications

• Model = IPS 12 PNP NO
• Supply Voltage = 10 - 30V DC
• Maximum Load Current = 250mA
• Sensing Distance = 3.5mm
• Output Type = PNP normally open
• Detection Type = Inductive metal sensing

Interfaces

• Brown Wire = VCC positive 10 - 30V DC
• Blue Wire = Ground
• Black Wire = PNP normally open output
