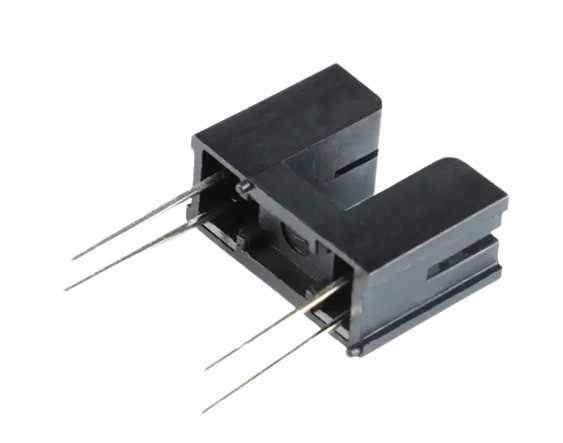

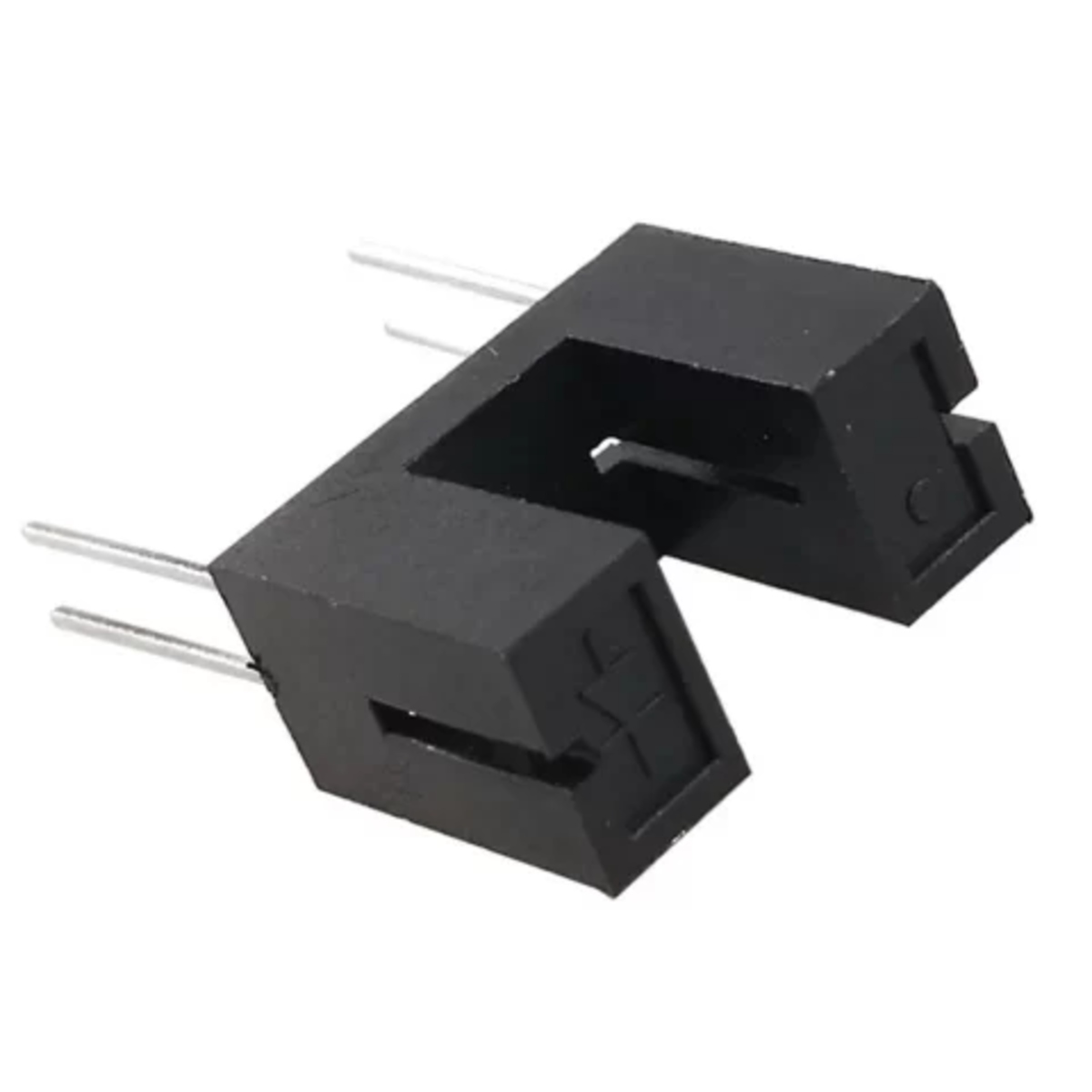

ITR9606 4 Pin Opto Interrupter Sensor DIP4 (ITR9606 Optical Sensor)
The ITR9606 4 Pin Opto Interrupter Sensor DIP4 is a compact slotted optical switch designed for non contact object detection and position sensing. It consists of an infrared emitting diode and an NPN silicon phototransistor placed facing each other inside a molded housing. When an object interrupts the IR beam, the output of the phototransistor changes state, enabling precise detection and switching.
The ITR9606 sensor is widely used in India for embedded systems, industrial electronics, encoder systems, and automation equipment. It is valued for its fast response time, high sensitivity, and reliable operation in applications such as speed detection, slot sensing, and object counting.
Key Features
- 4 Pin Opto Interrupter: Integrated IR LED and phototransistor
- Through Beam Detection: Accurate object interruption sensing
- Fast Response Time: Suitable for high speed switching
- High Sensitivity: Reliable detection performance
- 940nm IR Wavelength: Optimized optical sensing
- DIP4 Package: Easy PCB mounting
Specifications
- Sensor Type: Opto interrupter optical sensor
- Sensing Method: Through beam slot detection
- Peak Wavelength: 940nm
- Forward Current: Up to 50mA
- Collector Current: Up to 20mA
- Collector Emitter Voltage: Up to 30V
- Response Time: Approx 15 microseconds
- Sensing Distance: Around 5mm
- Operating Temperature: -25 to 85 degree C
- Mounting Type: Through hole
- Package Type: DIP 4 slotted module
- Applications: Encoder systems position sensing speed detection object counting industrial electronics embedded systems
Pinout Configuration DIP4 Layout
- Anode pin of IR emitter
- Cathode pin of IR emitter
- Collector pin of phototransistor
- Emitter pin of phototransistor
