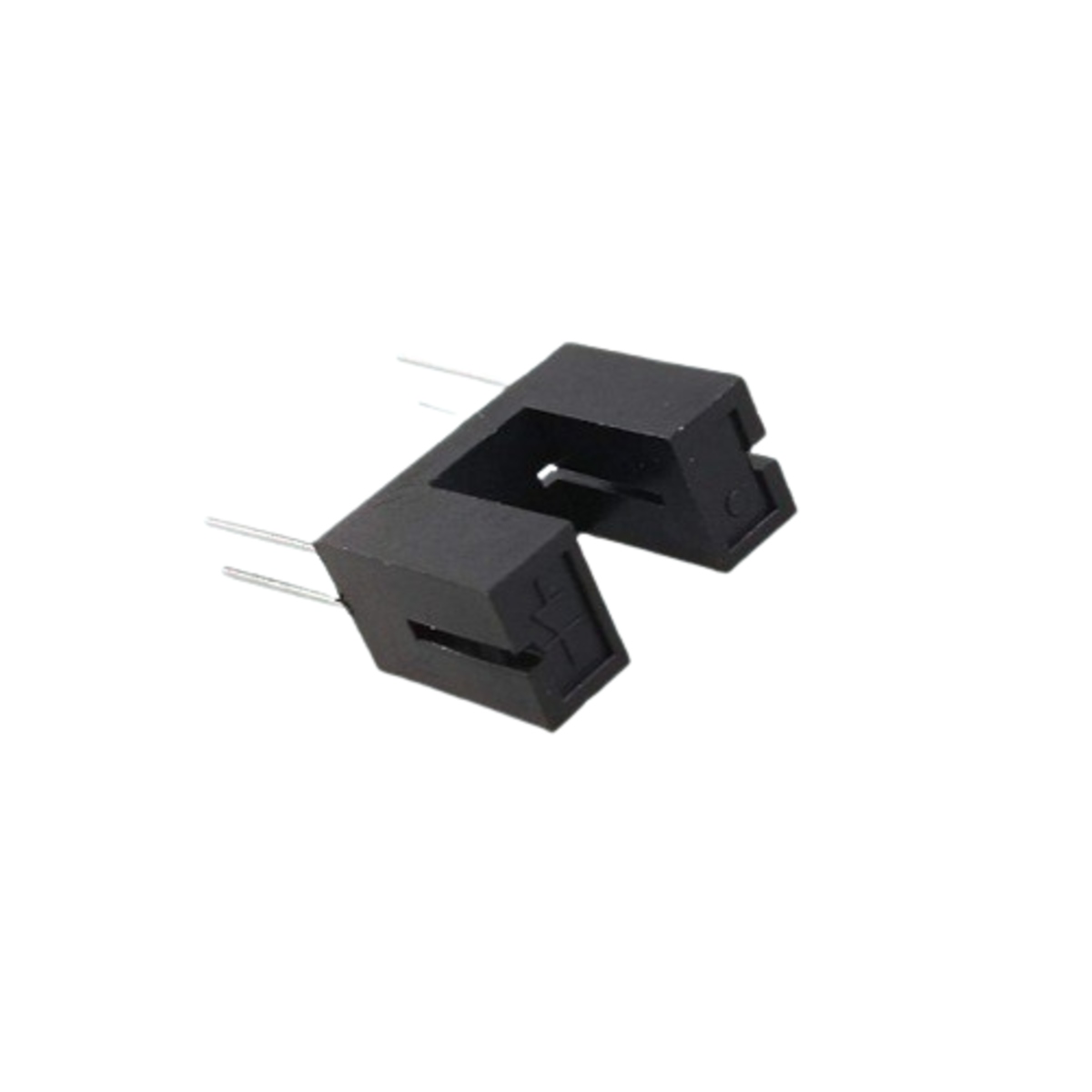

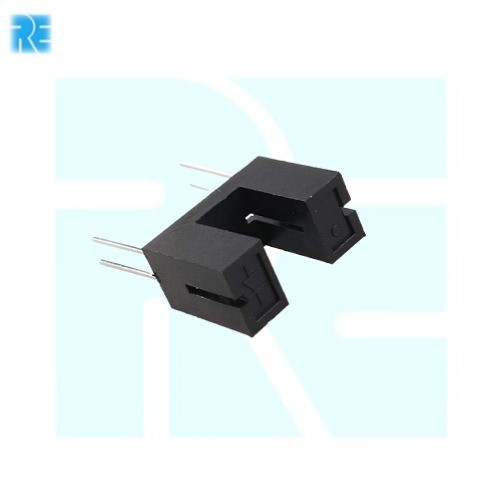

ITR9608 4 Pin Opto Interrupter Sensor (IR Slot Sensor / Position and Object Detection)

The ITR9608 4 Pin Opto Interrupter Sensor is a high speed optical switching device designed for non contact object detection, position sensing, and rotation monitoring. It consists of an infrared emitting diode and an NPN phototransistor positioned opposite each other inside a slotted housing.

When an object passes through the sensing slot and interrupts the infrared beam, the phototransistor output changes state. This makes the ITR9608 suitable for encoder systems, motor position sensing, slot detection, paper sensing, rotation monitoring, and embedded control applications.

Key Features -

• 4 pin opto interrupter sensor

• Integrated IR LED and phototransistor

• Non contact through beam detection

• Fast optical switching response

• High sensitivity

• 940nm infrared wavelength

• Compact slotted housing

• Through hole mounting

• Suitable for position and rotation sensing

Specifications -

• Product Type = Opto Interrupter Sensor

• Model = ITR9608

• Sensor Type = Slot Type Optical Sensor

• Sensing Method = Through Beam Detection

• Output Type = NPN Phototransistor

• IR Wavelength = 940nm

• Forward Current = Up to 50mA

• Collector Current = Up to 20mA

• Collector Emitter Voltage = Up to 30V

• Response Time = Approximately 15 microseconds

• Sensing Gap = Approximately 5mm

• Number of Pins = 4

• Mounting Type = Through Hole

• Package Type = DIP 4 Slot Type

Pin Configuration -

• Pin 1 = IR LED Anode

• Pin 2 = IR LED Cathode

• Pin 3 = Phototransistor Collector

• Pin 4 = Phototransistor Emitter

Applications -

• Object detection

• Position sensing

• Motor speed monitoring

• Motor position sensing

• Encoder systems

• Rotation detection

• Paper sensing

• Slot detection

• Embedded systems

• Industrial automation

• Motor control applications
