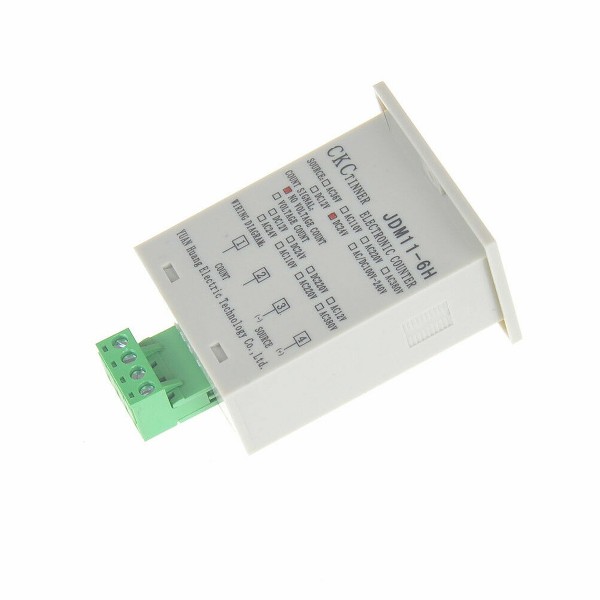

JDM11-6H 6-Digit Electronic Counter With Relay Control 24V DC (999999 Count)

The JDM11-6H 6-Digit Electronic Counter With Relay Control is a digital counting and control module designed for event counting and automatic switching applications. It operates from a 24V DC supply and provides a six-digit display for monitoring accumulated counts.

The integrated relay output allows the module to control external electrical loads when the programmed counting condition is reached. It is suitable for production counting, machine control, process monitoring, automation systems, and other applications requiring combined counting and relay control.

KEY FEATURES -

• 6-digit electronic counter display

• 24V DC operating supply

• Counting range up to 999999

• Integrated relay output

• Programmable counting control

• Suitable for automatic load switching

• Compact electronic module design

• Suitable for industrial automation and process control

SPECIFICATIONS -

• Model = JDM11-6H

• Operating Voltage = 24V DC

• Counting Range = 0-999999

• Display Type = 6-digit digital display

• Relay Output = SPDT or NO/NC depending on model

• Relay Load Rating = Up to 5A at 24V DC typical

• Module Size = Approx. 70 x 40mm

• Operating Temperature = -20 to 70 C

APPLICATIONS -

• Production line counting

• Industrial automation

• Machine cycle counting

• Process monitoring

• Packaging and material counting

• Automatic relay control

• Embedded control systems

• Manufacturing equipment
