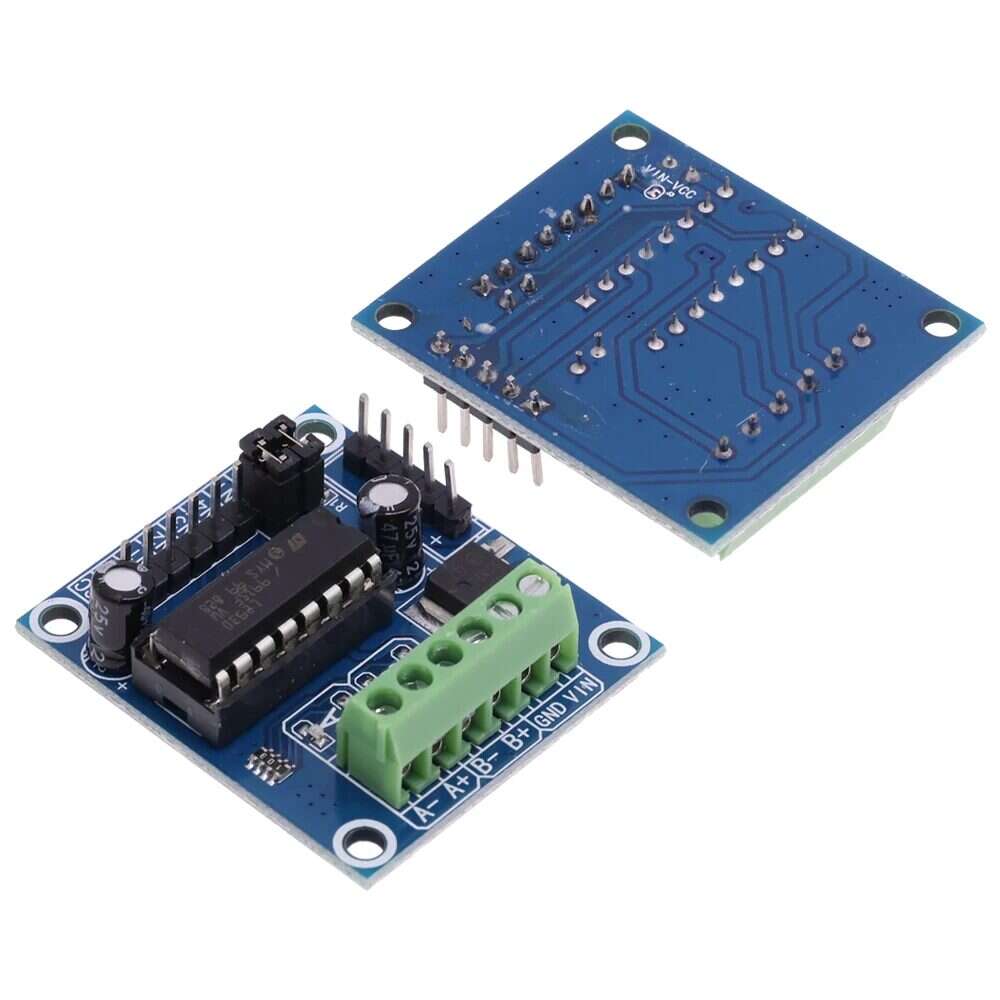

Mini Motor Drive Shield Expansion Board L293D Module for Arduino UNO MEGA 2560 (4 Channel DC Motor Driver Shield)

The Mini Motor Drive Shield Expansion Board is an L293D-based motor driver module designed for Arduino UNO and Arduino MEGA 2560 development boards. It provides convenient control of DC motors and stepper motors through dedicated motor driver circuitry, making it suitable for robotics, automation, and embedded motor control projects.

Key Features -

• Based on L293D dual H-bridge motor driver IC

• Supports bidirectional DC motor control

• Provides control for up to 4 DC motor channels

• Compatible with Arduino UNO and MEGA 2560

• TTL-compatible control inputs

• Built-in flyback protection for inductive motor loads

• Supports PWM-based motor speed control

• Suitable for DC motors and stepper motors

• Convenient shield-style expansion board design

• Suitable for robotics and automation applications

Specifications -

• Product Type: Mini Motor Drive Shield Expansion Board

• Motor Driver IC: L293D

• Driver Type: Dual H-Bridge Motor Driver

• Motor Channels: Up to 4 DC motor channels

• Compatible Boards: Arduino UNO, Arduino MEGA 2560

• Control Logic: TTL Compatible

• Motor Control: Bidirectional

• Speed Control: PWM Compatible

• Protection: Built-in flyback protection diodes

• Protection Features: Thermal protection

• Mounting Type: Arduino Shield / Expansion Board

• Motor Type Support: DC Motors and Stepper Motors

Applications -

• Arduino DC motor control projects

• Robotics projects

• Robot car and mobile robot systems

• Stepper motor control

• Automation systems

• Embedded motor control applications

• Educational electronics projects

• DIY robotic projects

• Arduino-based mechanical systems
