L298 2A Dual Motor Driver Module with PWM Control

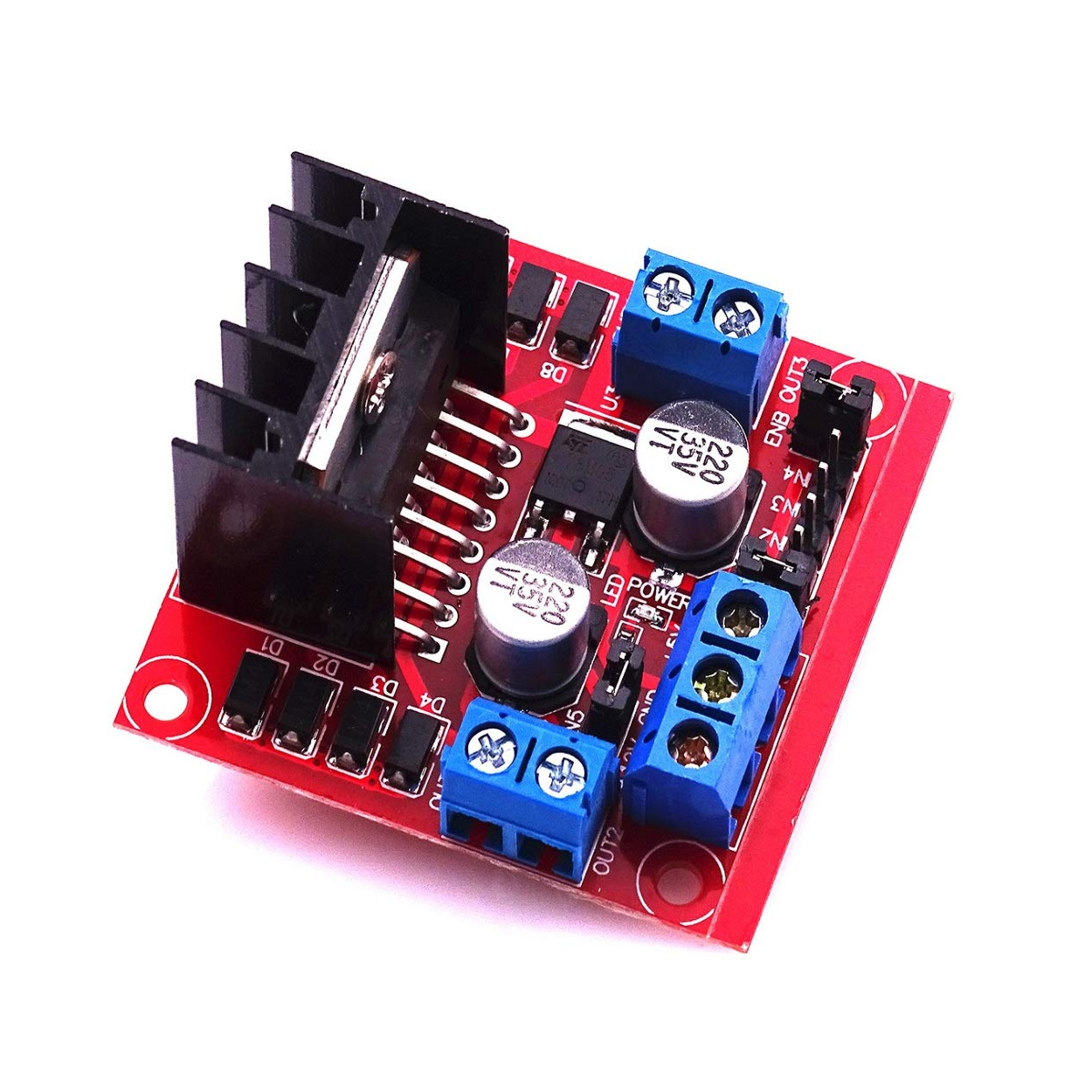

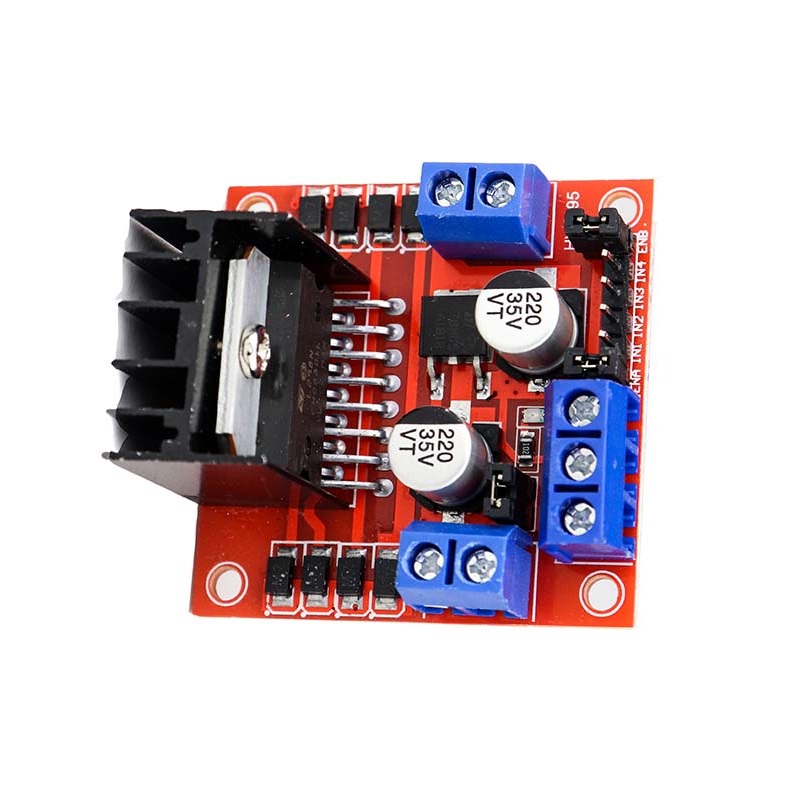

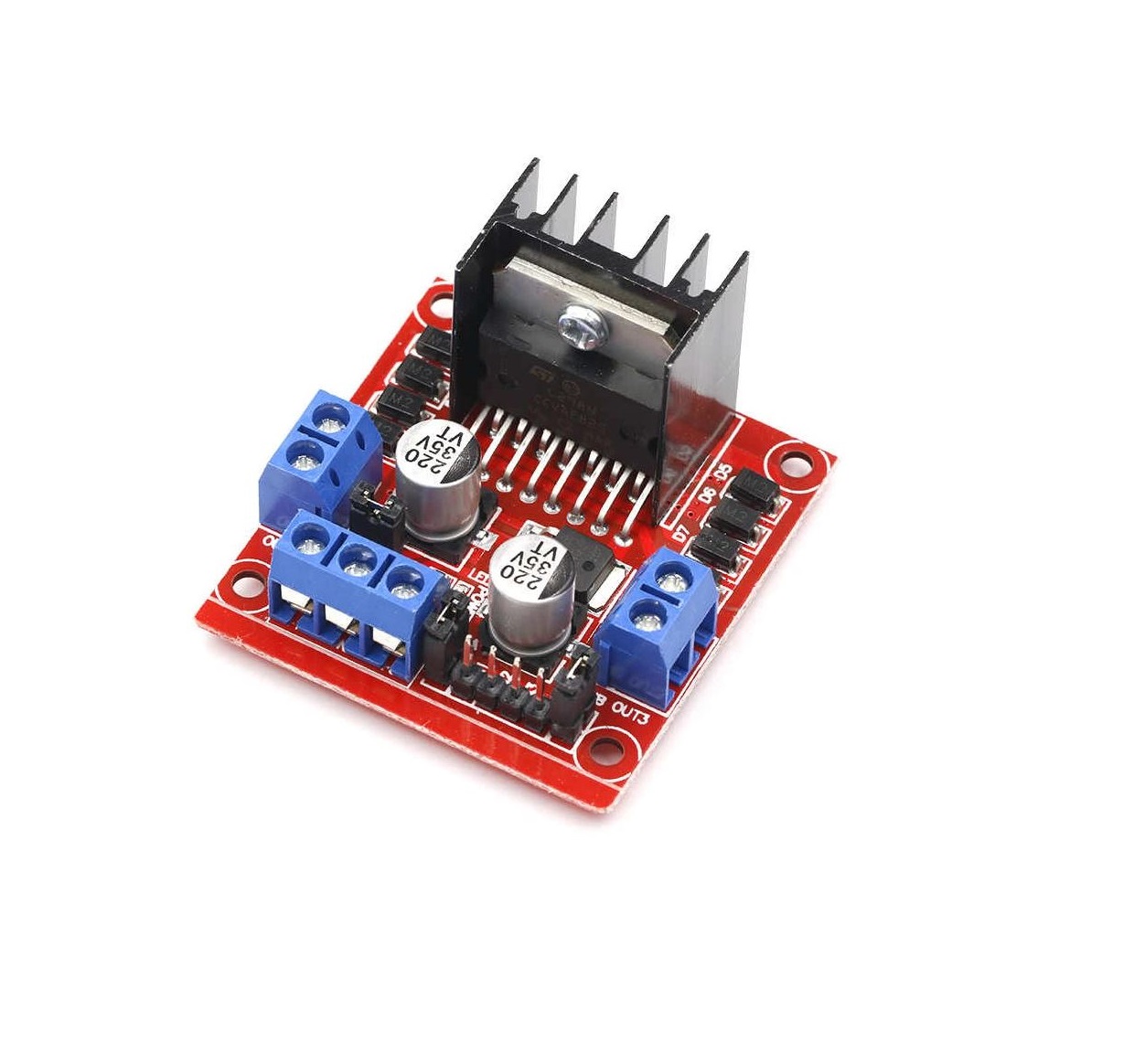

The L298 2A Dual Motor Driver Module with PWM Control is a versatile motor driver board designed to drive two DC motors with independent forward, reverse, and speed control. Based on the L298 dual H-bridge driver IC, this module supports PWM speed regulation and direction control via simple logic inputs from microcontrollers like Arduino, ESP, and other embedded systems. The compact board features easy screw terminal connectors for motor and power connections, making it ideal for robotics, automation, and motorized projects.
This driver module is suitable for wheeled robots, small vehicles, conveyor systems, and other applications requiring precise motor control. With onboard protection diodes and thermal management of the L298 IC, it ensures reliable operation under typical load conditions. The PWM inputs allow smooth speed variations, while the direction pins control motor rotation effectively.
KEY FEATURES
- Dual H-bridge motor driver
- Controls two DC motors independently
- PWM speed control supported
- Forward/reverse direction control
- Easy screw terminal connections
- Suitable for robotics and automation projects
- Compatible with microcontrollers and control boards
SPECIFICATIONS
- Driver IC L298 dual H-bridge
- Control Logic Voltage 5V DC
- Motor Supply Voltage Up to ~12V DC
- Max Output Current 2A per channel
- PWM Speed Control Supported
- Protection Back EMF protection diodes onboard
- Operating Temperature Standard ambient

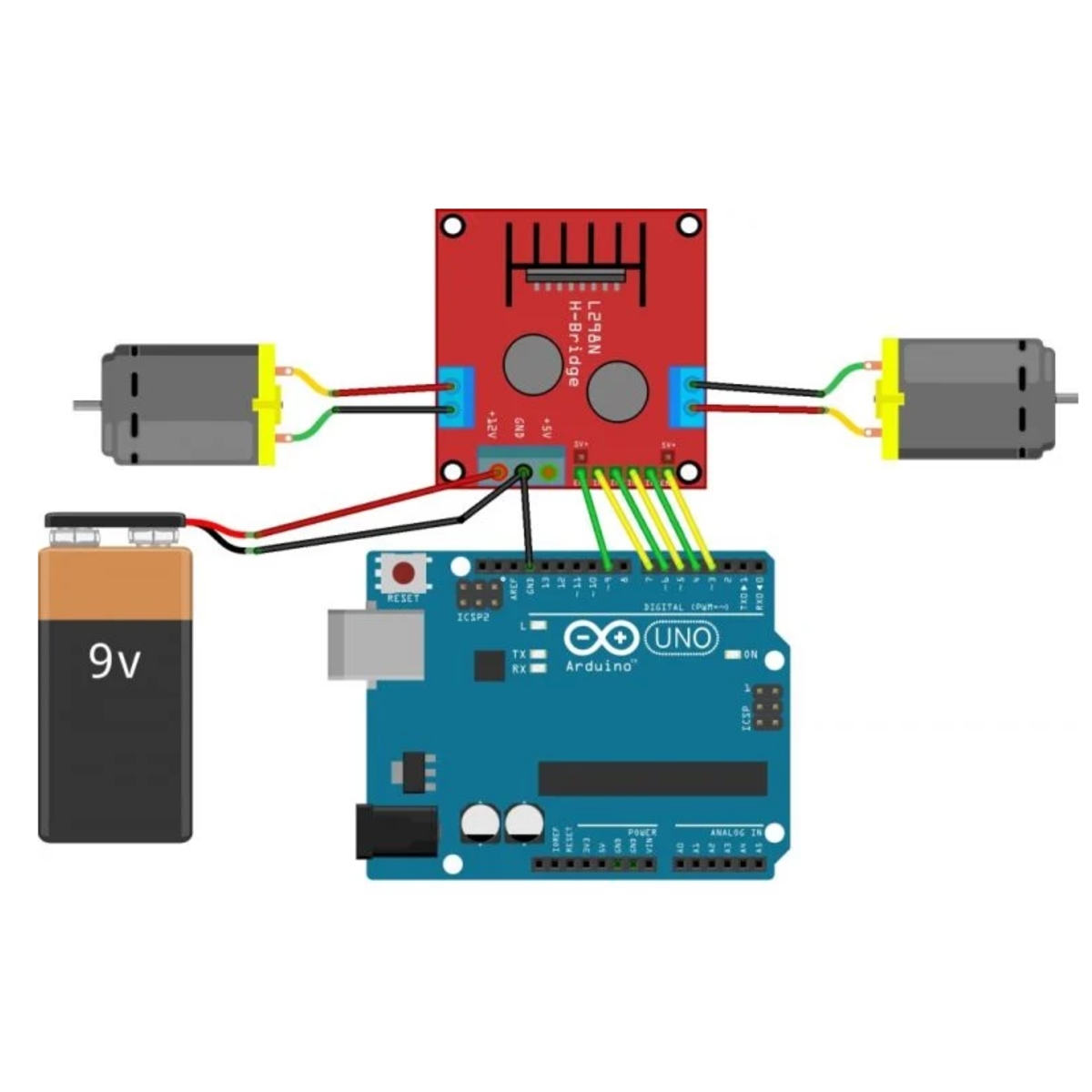

INTERFACES
- VCC Motor power input
- 5V Logic supply input/output
- GND Ground
- IN1 Motor A forward control
- IN2 Motor A reverse control
- IN3 Motor B forward control
- IN4 Motor B reverse control
- ENA PWM speed control for motor A
- ENB PWM speed control for motor B
- OUT1 Motor A output positive
- OUT2 Motor A output negative
- OUT3 Motor B output positive
- OUT4 Motor B output negative
